Adjusting knitting machine 4
Advanced adjustments 4.2
176

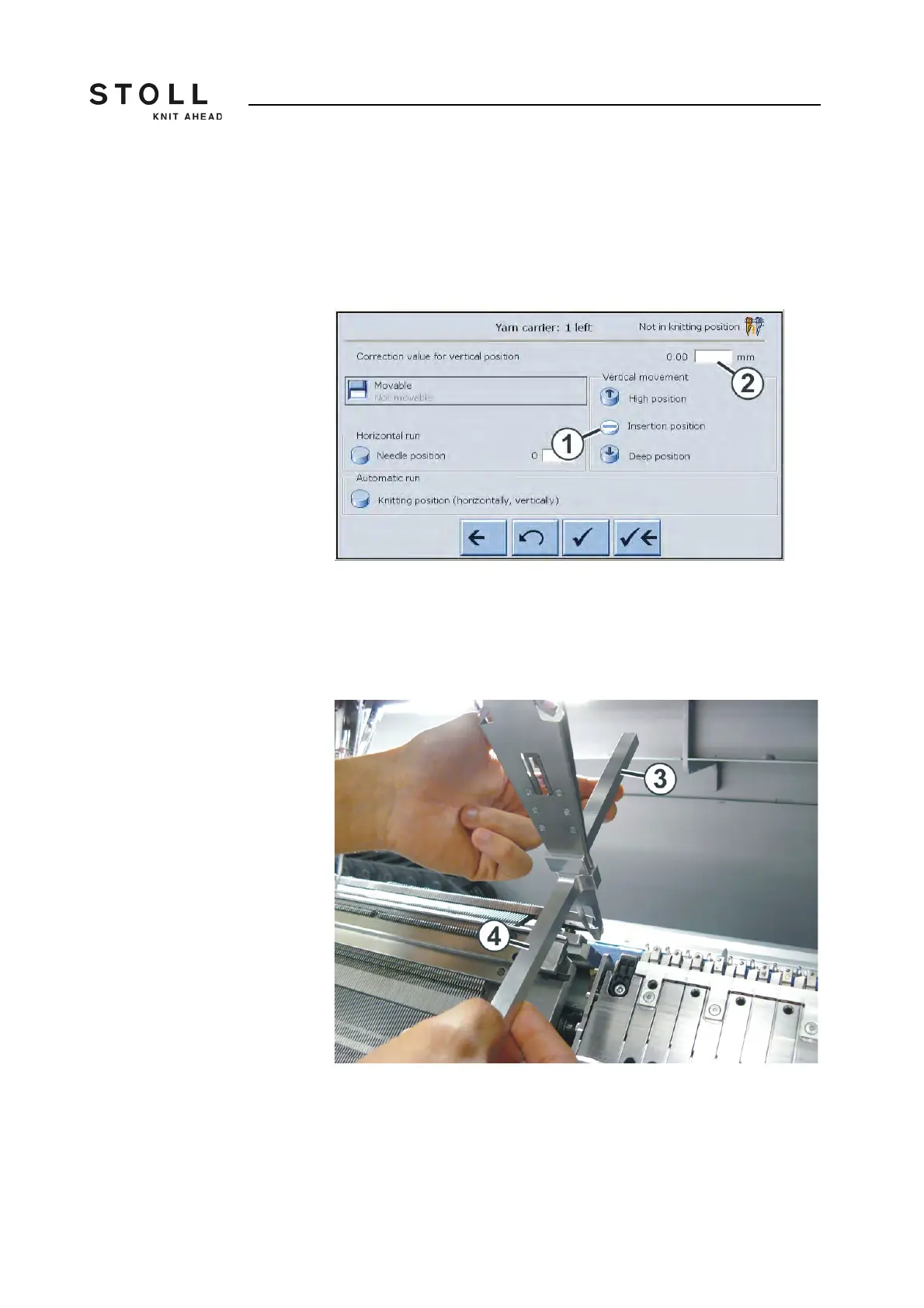

Centering the yarn carrier ✔ The covers must be closed.
1. The yarn carrier must be in the insert position.
Tap the (1) key for this.
If the yarn carrier is located in the insert position, the (1) key is
greyed out.
2. Open the covers.
3. Move the yarn carrier between needle bed and clamping and cutting
bed.
4. For centering the yarn carrier tip use the two adjusting levers (3) and (4).
They are included in the machine accessories.
5. Position the upper adjusting lever (3) at the docking point "yarn carrier
sliding block-tip". It serves as protection for the upper area of the yarn
carrier. If this area is distorted, the yarn carrier can no longer be moved
upward.
