Stoll CMS ADF-3 - Page 254

Setup Data 5
Setup2 Editor 5.4
254

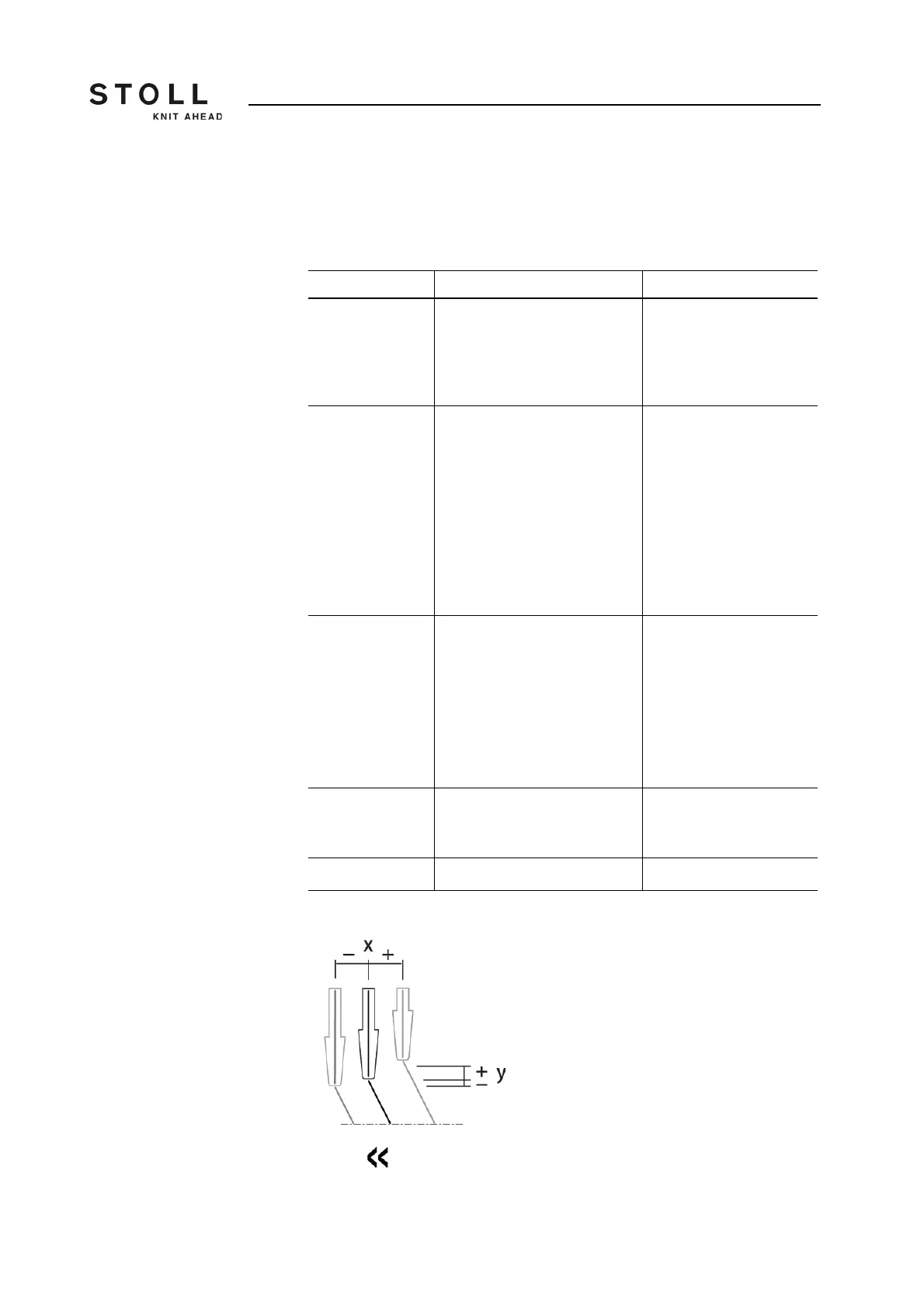

YPI (tab) Plating indices for autarkic yarn carriers (ADF):
 Control the insertion position of the basic yarn.
 Control the insertion angle of the basic yarn
Shifted insertion positions
Explanation Value range
YPI Plating index
Defines the distance between
the yarn carrier and the normal
yarn insertion position in the
needles and the insertion angel.
Insertion position Horizontal shifting of the
insertion position (x)
 Positive value: Following
basic yarn.
The thread is inserted in the
needles later on.
Standard: 6.5 mm
 Negative value: Leading
plating yarn
Standard: 0 mm
Minimum value: -100 mm
Maximum value: 100 mm
Step width: 0.1 mm
Height Shifting in height (y)
Corrects the insertion angle
 Positive value: Steeper yarn
angle
Standard: 0.9 mm for the
following basic yarn
 Negative value: Flatter yarn
angle
Minimum value: -2 mm
Maximum value: 5 mm
Step width: 0.1 mm
<<
>>
Carriage Direction
The plating index depends on
the carriage direction.
Comment Comment ASCII Characters
