Repairing the knitting machine 7
Replacing parts 7.3
318

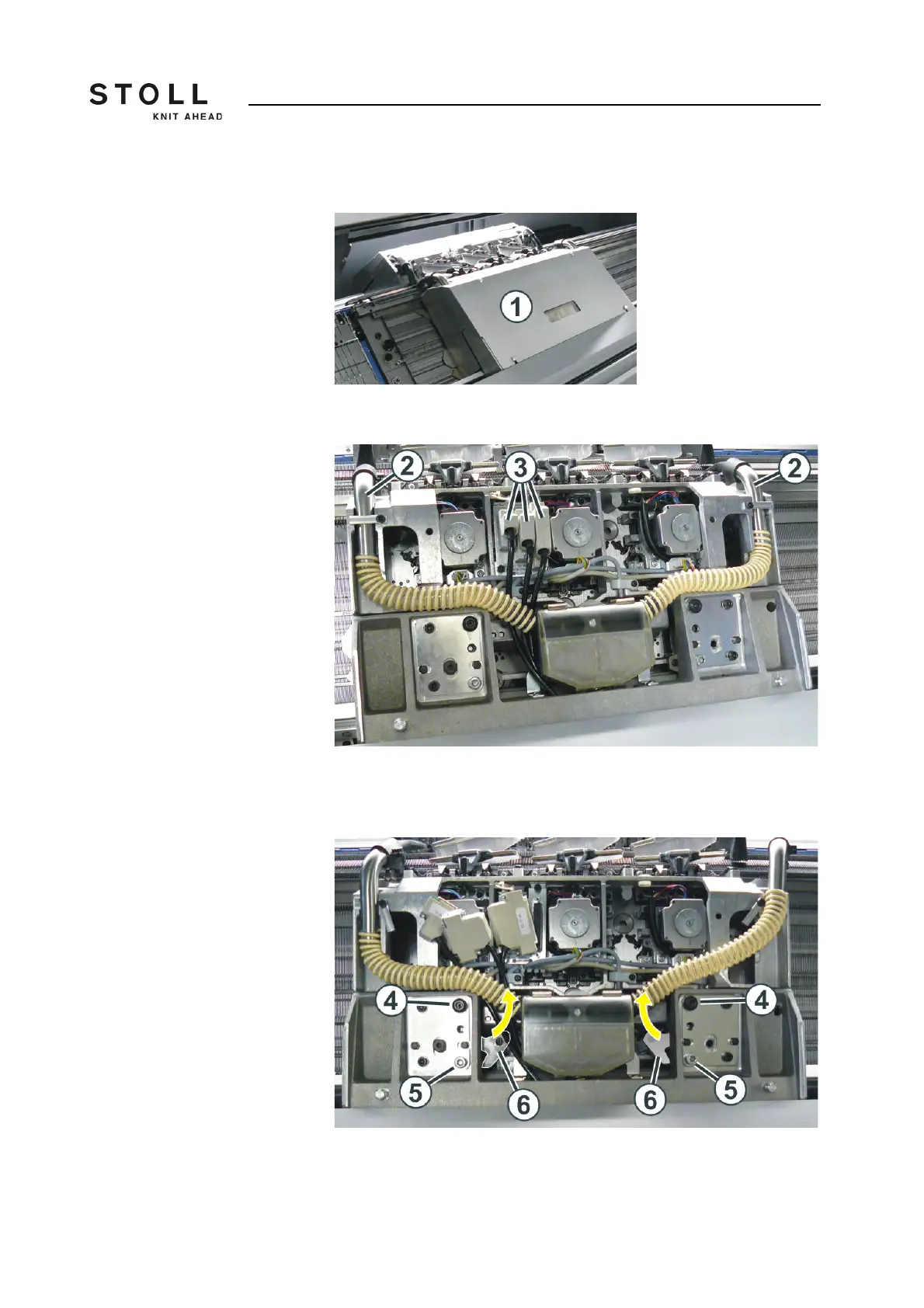

5. Remove the carriage assembly panelling (1).
Panelling of carriage assembly
6. Take the suction tubes (2) out of the carriage part.
7. Loosen the screws on the plugs (3) and pull out the plugs.
8. Unscrew the shoulder screws (4) and screws (5) on the left and right
sides.
9. Swivel left and right swiveling plates (6) inward.
