Repairing the knitting machine 7
Replacing parts 7.3
320
Remove the carriage part
when the carriage assembly
is blocked in the needle bed
In the case of a shock on the needle bed, e.g. in the case of needle
breakage, the piezo-electric shock stop switches off the knitting machine.
On the touch screen a pictograph appears showing on which needle bed
the fault occured.
Possible causes:
Working butts of the movable parts (needle, coupling part, intermediate
slider, and selection jack) are broken
Thereby it is possible that trick walls got damaged as well.
Before starting to operate the machine, you have to eliminate the fault.
Otherwise, the carriage assembly might block again immediately.
To eliminate the fault you need to remove the corresponding carriage part
from the needle bed. Check the cams and the needle bed for possible
damage.
Remove the carriage part
from the needle bed
1. Call up "Manual interventions" window.
2. To switch off the needle selection, set the "Needle selection" switch to
"Off".
3. Open the covers.
4. Move all the yarn carriers away from the carriage area.
5. Switch off 40 V power supply.
6. Remove the carriage assembly panelling (1).

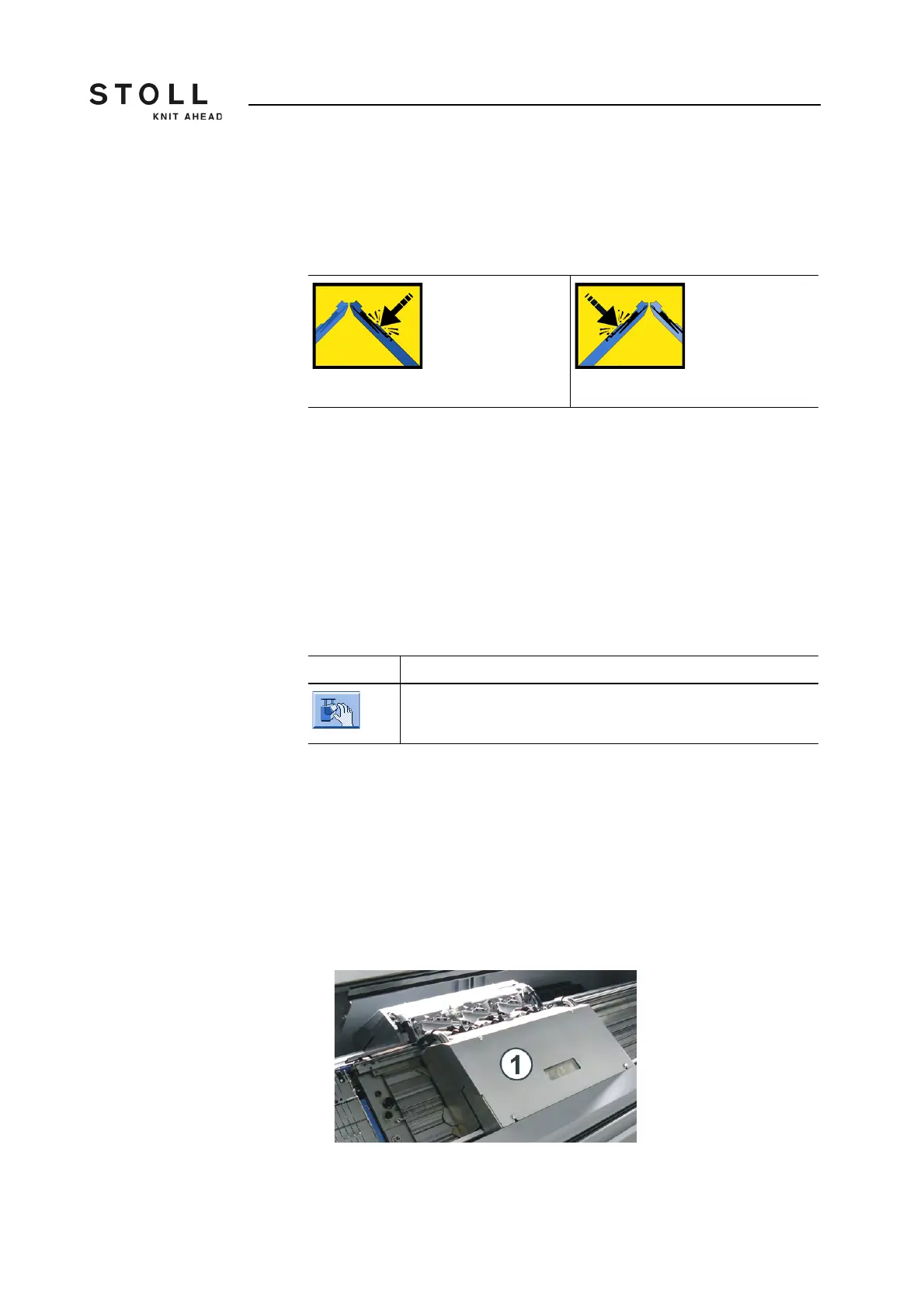

Front shock stop motion Rear shock stop motion
Key Function
Call up "Manual interventions" window
Key for calling up "Manual interventions" window
