7 Repairing the knitting machine
7.3 Replacing parts

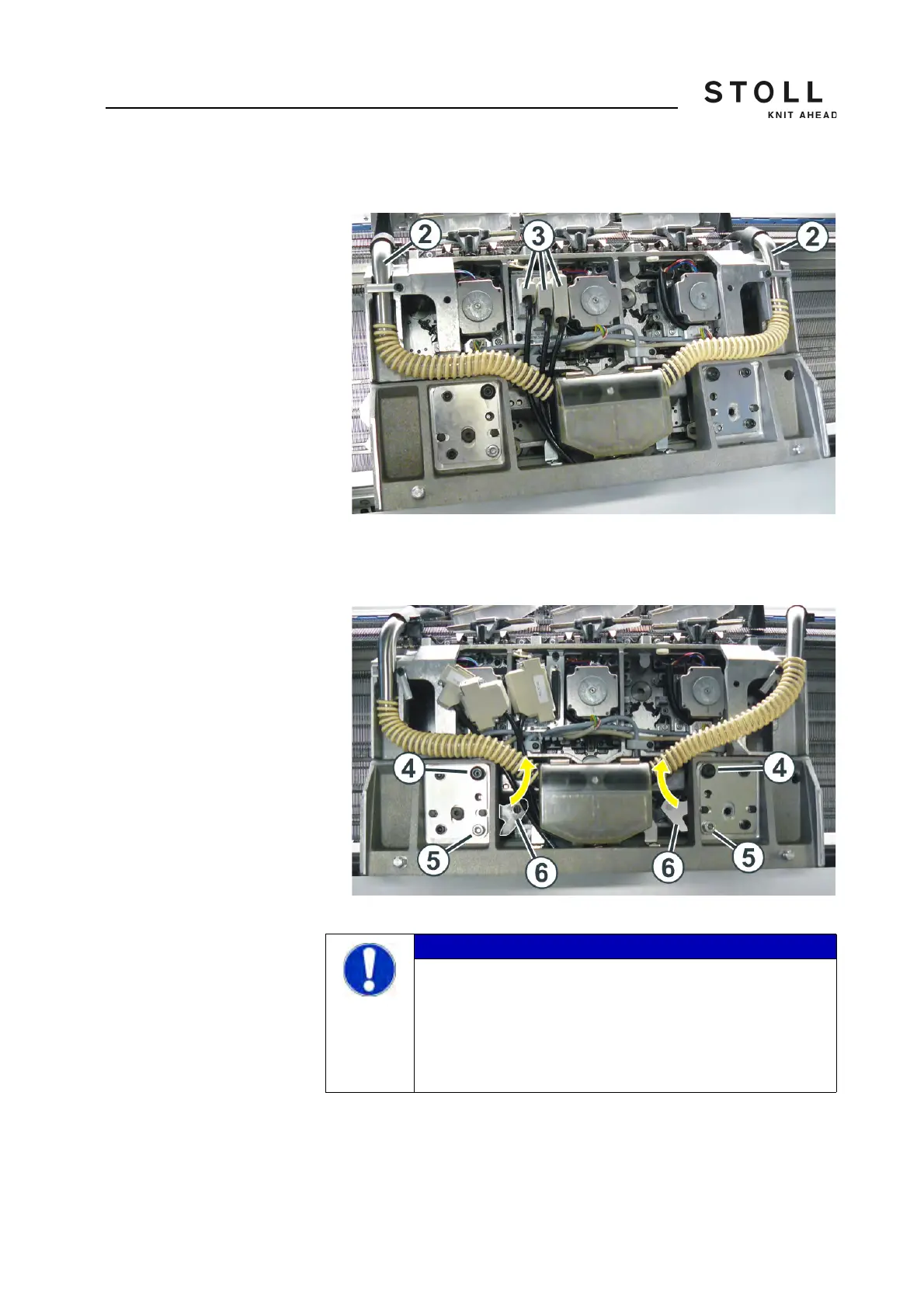

7. Take the suction tubes (2) out of the carriage part.
8. Loosen the screws on the plugs (3) and pull out the plugs.
9. Unscrew the shoulder screws (4) and screws (5) on the left and right
sides.
10. Swivel left and right swiveling plates (6) inward.
11. To release the drive brake, tap the "Rel. drive brake" key.
("Main menu" -> "Manual interventions service" window, "Release drive
brake" key)
IMPORTANT
Damage to needles and knitting system!
There are still needles in the knitting system. If the direction
is changed when moving the carriage assembly, the needles
and knitting system will be damaged.
➜ Never change the pushing direction of the carriage
assembly.
