Repairing the knitting machine 7
Replacing parts 7.3
324
Assembling carriage part
and carriage support

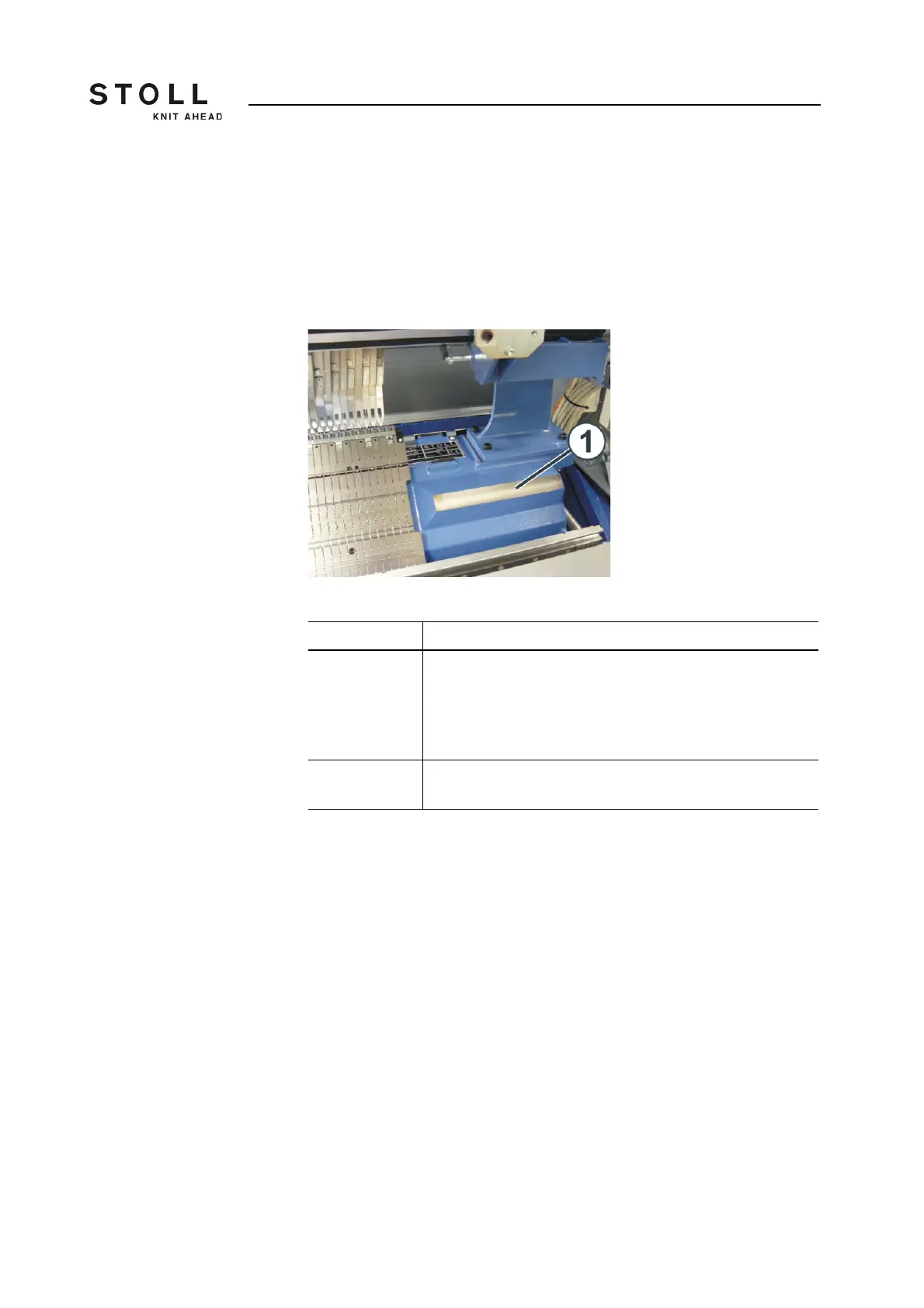

Preparations If the front carriage part is returned to the machine, it needs to be pushed
from outside on to the support surface (1). The reason for this: The movable
parts in the clamping and cutting bed will be pushed by the carriage part
(more exactly: by the cam box curves) into their correct position.
Please observe the following procedure:
Procedure
Front Needle
Bed
Open the lateral safety door (on the right side).
Push the carriage part from outside on to the support surface
(1).
Push the carriage part inward enough to position it above the
clamping and cutting bed.
Rear Needle Bed Push both sliding boards in the same direction.
Position the carriage part on the support surface (1).
