7 Repairing the knitting machine
7.3 Replacing parts
1. Switch off 40 V power supply.
2. Call up "Manual interventions" window.
3. To release the drive brake, tap the "Rel. drive brake" key.
4. Push the carriage support exactly over the carriage part.
5. Screw in the shoulder screws (4) until the carriage part lifts slightly.
6. Swivel the left and right swiveling plates (6) outward below the carriage
support..
7. Tighten both shoulder screws (4) for fixing the carriage part.
Assembly of the rear carriage part: pull the upper area of the carriage
part (needle brushes) away from the needle bed to ensure that the
shoulder screw does not cant.
8. Tighten screws (5) evenly.
9. Plug in the plugs (3) while watching the plug coding.
10. Tighten the screws at the plugs (3).
Key Function
Call up "Manual interventions" window
Call up "Machine start" window
Call up "Main menu"

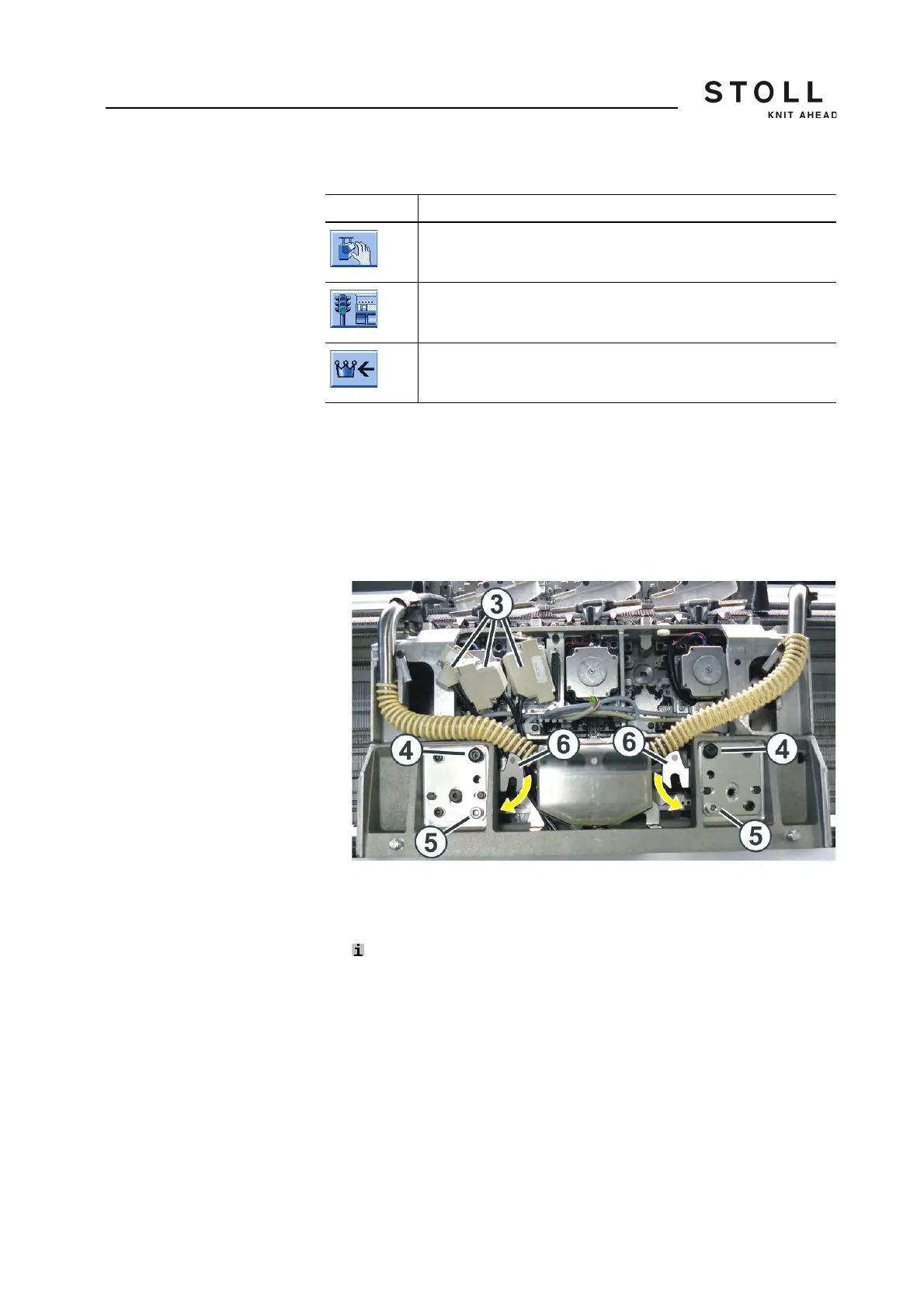

Keys for assembling carriage part and carriage support
