Repairing the knitting machine 7
Replacing parts 7.3
344
6. Mount the yarn carrier.

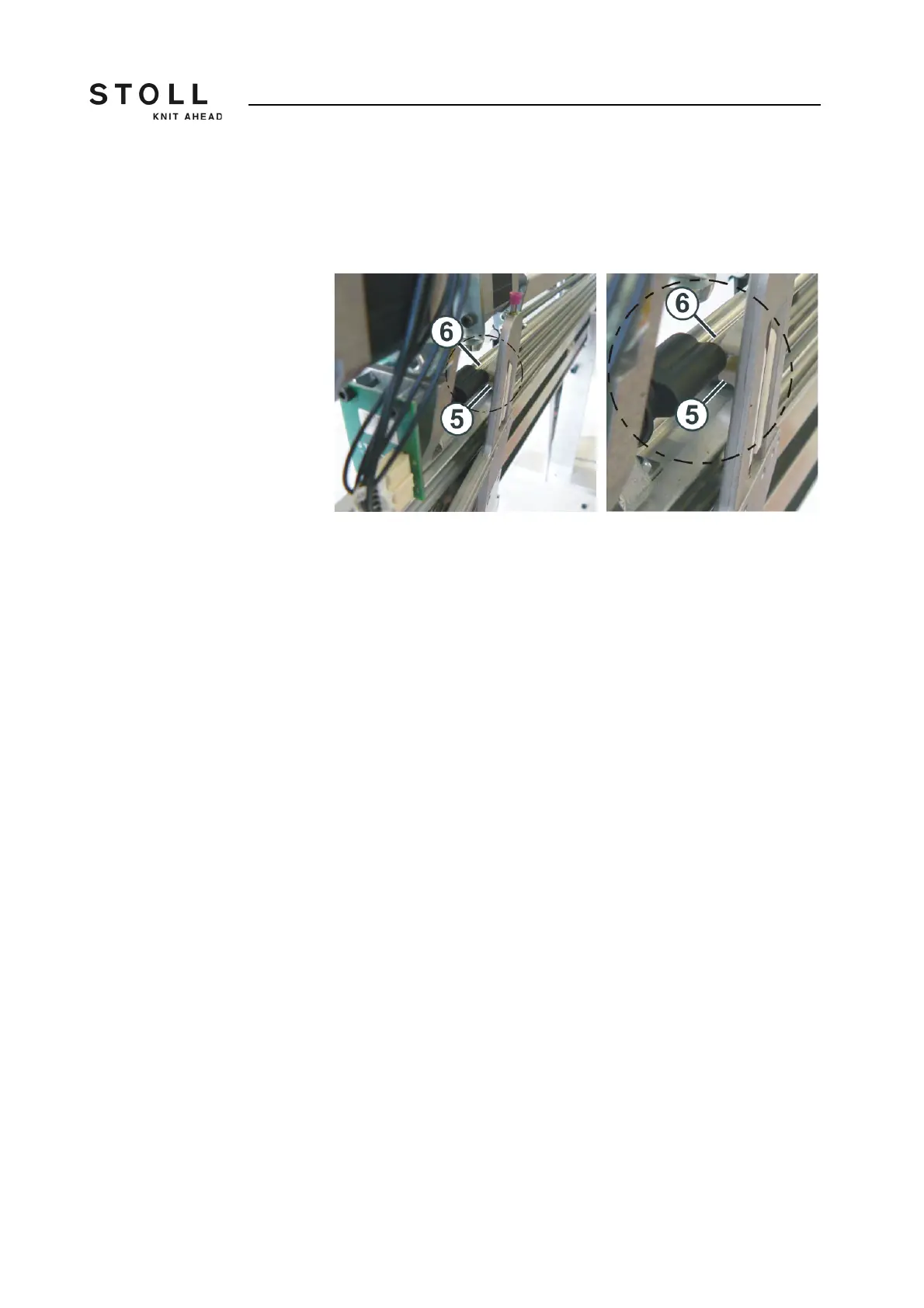

Mount the right ball bearing on the wire. Insert the curtain (5) at the yarn
carrier in the switching shaft (6). Push the yarn carrier inward until it is
running completely on the wire.
Concluding activities Assemble in reverse order.
When assembling the yarn carrier rail make sure that the side, which is
tightened with only one screw is to be inserted first.
Checking the alignment of the light curtain [ 338]
Adjust yarn carrier horizontally [ 182]
Adjust yarn carrier vertically [ 184]
