343
7 Repairing the knitting machine
7.3 Replacing parts

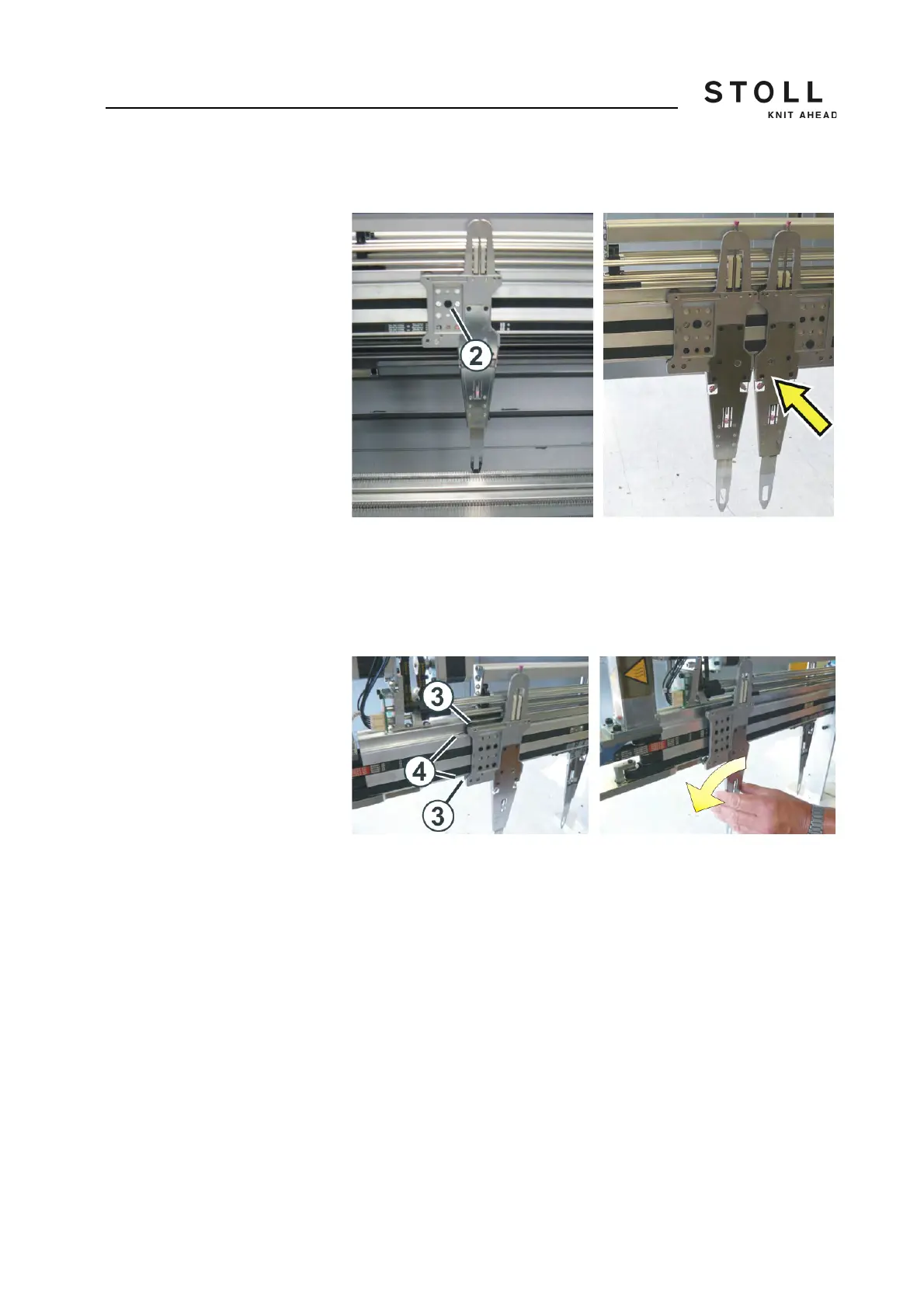

1. Remove the screw (2).
2. In case that the second yarn carrier must be replaced, both yarn carriers
are to be dismantled.
3. Push the yarn carriers to the replacement point.
4. Once the left ball bearings (3) are outside the wire (4) turn the yarn
carrier somewhat away from the rail.
5. Push the yarn carrier further outward until it can be removed from the
rail.
