blue bar graph and in the Gain field; it is adjusted with the rotary encoder
below the field.
Notes: There is no relation between the gain setting and the configured headroom,
as the headroom setting is only used for the level meters to indicate 0 dB at
nominal level.
A mic clip limiter is available. It is activated in the configuration tool.
Shared Microphone Inputs Since the microphone input parameters +48 V (phantom power on/off), HPF,
Mic Insert (only in case of an optional, external D21m frame) and Gain are
realized on the physical microphone input rather than in the DSP channel,
they are unique for all sharing logical inputs. In case of I/O sharing operation,
these parameters are accessible only by one system at a time. Access to the
microphone input parameters must be requested in the Channel - Input page
of the user GUI; the corresponding Mic Control Access button is visible
only if the microphone input is shared. (For information on I/O sharing refer
to chapter 6.5.20).
A user requesting access to the mic input parameters can do this only if nobody
else has done so already on another system within the same network, the Mic

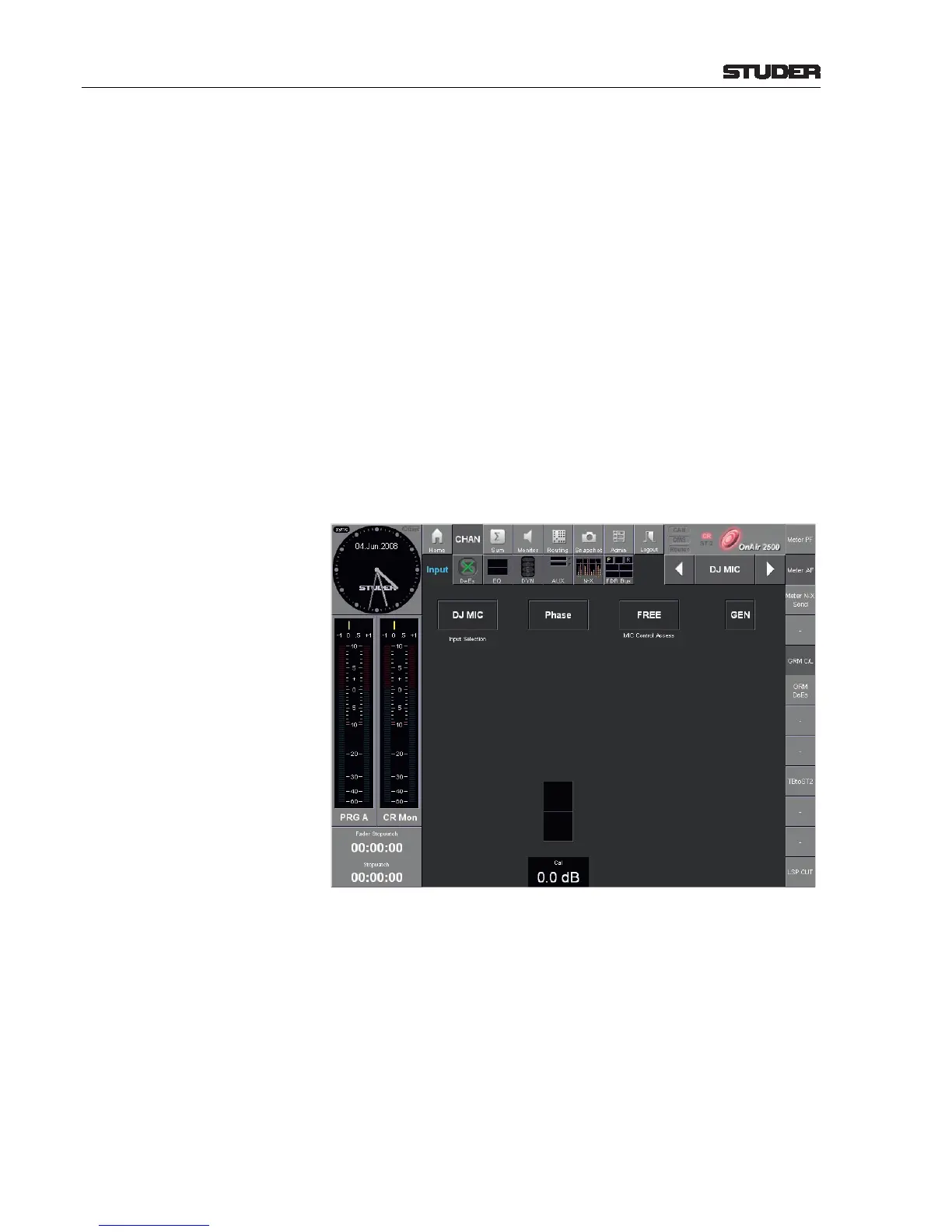

Control Access button is gray and indicates FREE, as shown below.
When touching the Mic Control Access button its label changes to LOCAL
on green background. At the same time all mic control parameters are dis-
played and ready to use, as shown in the next screenshot.
