Chapter 4 Provisioning
Provisioning the Ethernet Ports
Provisioning the Ethernet Ports
Provisioning MGMT Ethernet Port
The TimeProvider 2300/2700 supports static as well as dynamically allocated IP
addresses on the MGMT (Management) port. The dynamically allocated address
requires a connection to a DHCP server. When provisioning the unit for static IP
address, you can set the Host address, Mask address, and Gateway address, or
you can set the addresses to the factory default. See Table B-29 in Appendix B,
Specifications and Factory Defaults for addresses.

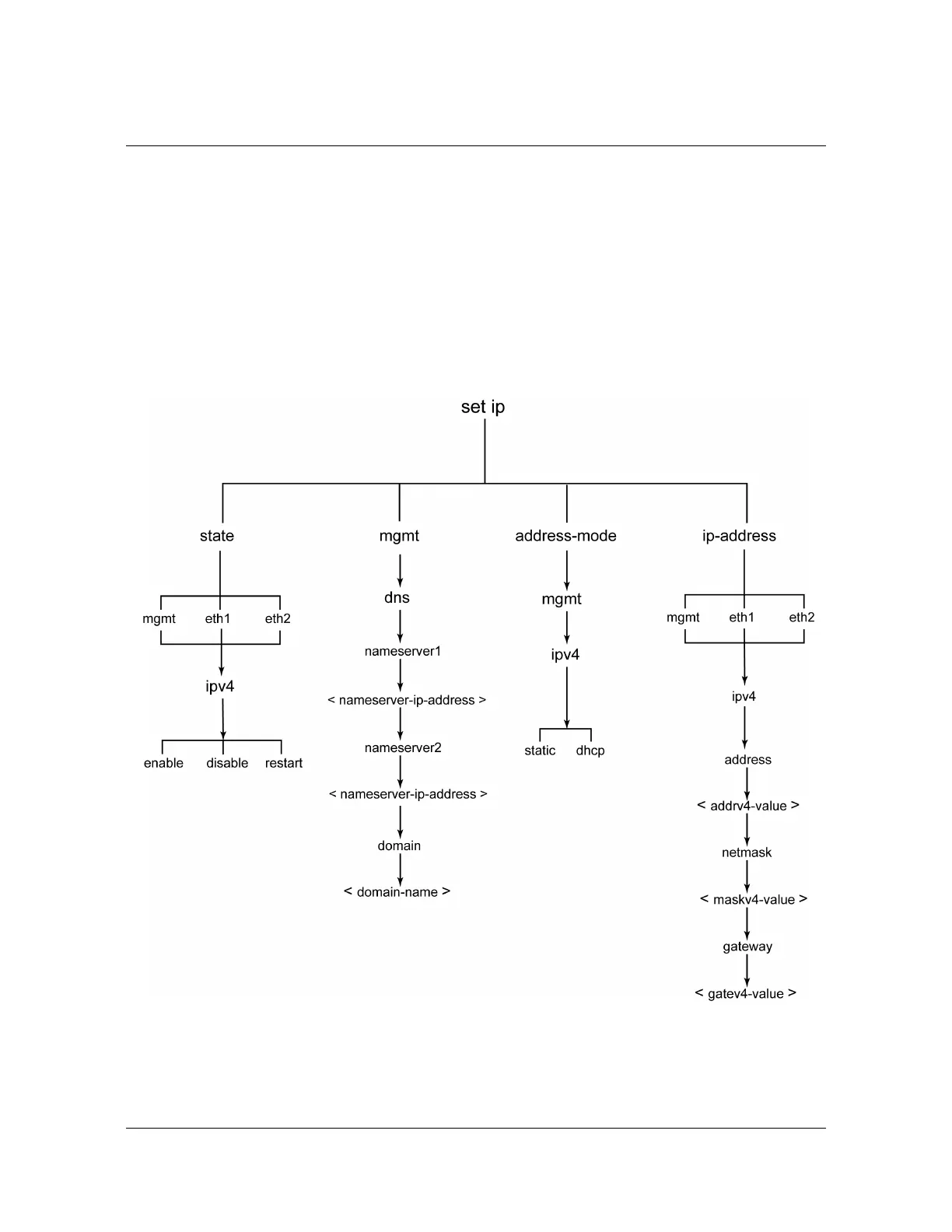

Figure 4-1. Set IP Command Hierarchy
DHCP Mode
You can either enable or disable DHCP mode on the MGMT port. See Figure 4-1.
Use the following procedure to configure the TimeProvider 2300/2700 to enable
DHCP on the MGMT port.
