Symmetricom TimeProvider 2700 User Manual

330 TimeProvider 2300/2700 User’s Guide 098-00564-000 Revision A3 – July, 2013
Appendix C Installing GNSS Antennas
GNSS Antenna Installation
4. Adhere to local building codes to determine the type and number of fasteners,
screws, bolts, etc. that may be required.

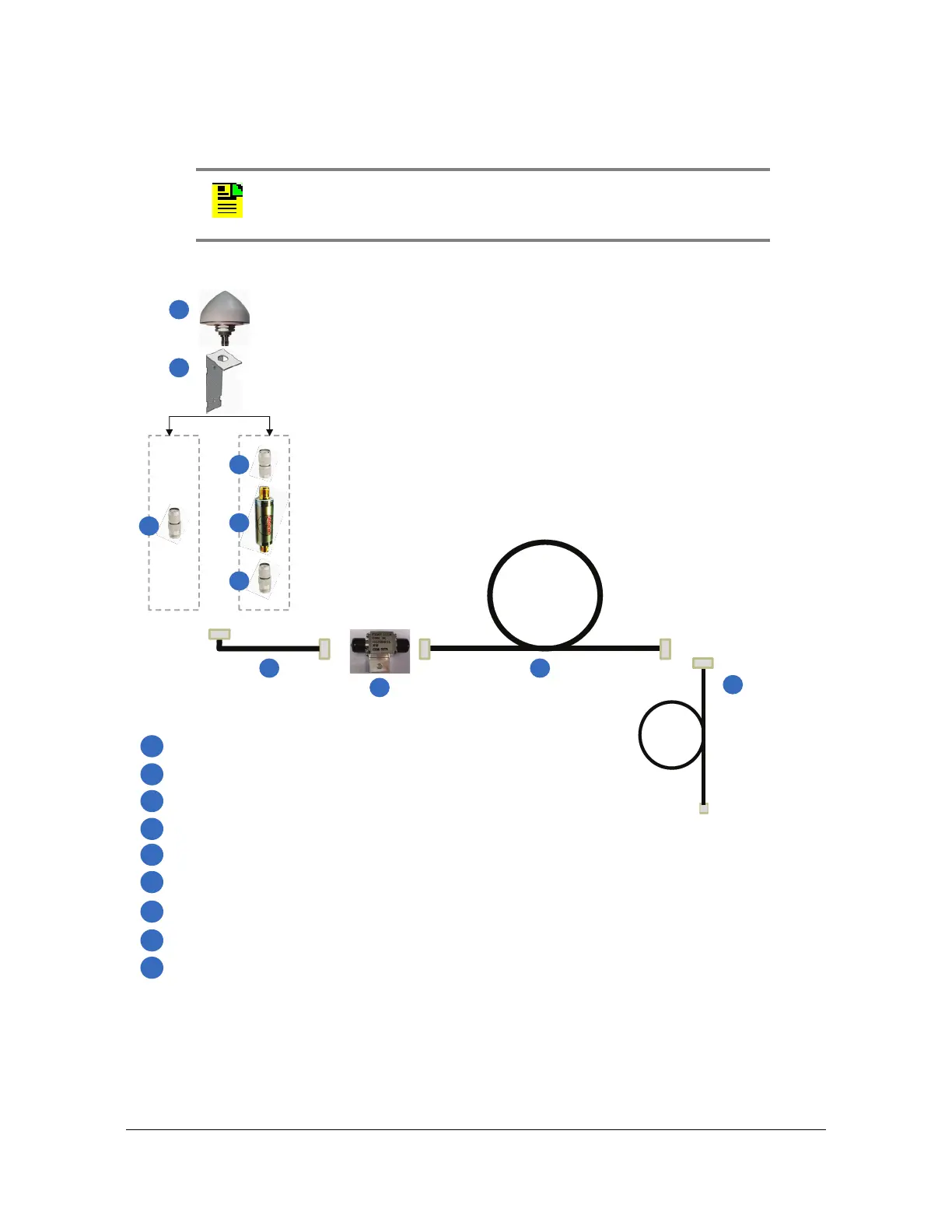

Figure C-2. GNSS Antenna Installation
Note: Follow local building electrical codes when installing the GNSS
antenna.
1
7
6 8
9
2
3
4
5
5
In-line
amplier
required for
Kits
-150, -230
r
1
2
3
4
5
6
7
8
9
GNSS antenna, TNC(f) (27 dB with kits -020, -040, -150; 41 dB with kits -070, -230)
Mounting Bracket Antenna (193-00044-000)
TNC(m) to TNC(m) straight adapter (121-00148-000)
In-line amplifier 25 dB, TNC(f) to TNC(f) (13813160-025-0)
TNC(m) to N(f) straight adapter (371-004)
10 m cable N(m) - N(m) (58521A-010)
Lightning arrestor, N(f) (112-43400-00-3)
Long cable N(m) - N(m) 58521A-xxx
1.2 m Cable adapter N(f) to SMA(m) 060-00039-000
