Appendix B Specifications and Factory Defaults
Specifications

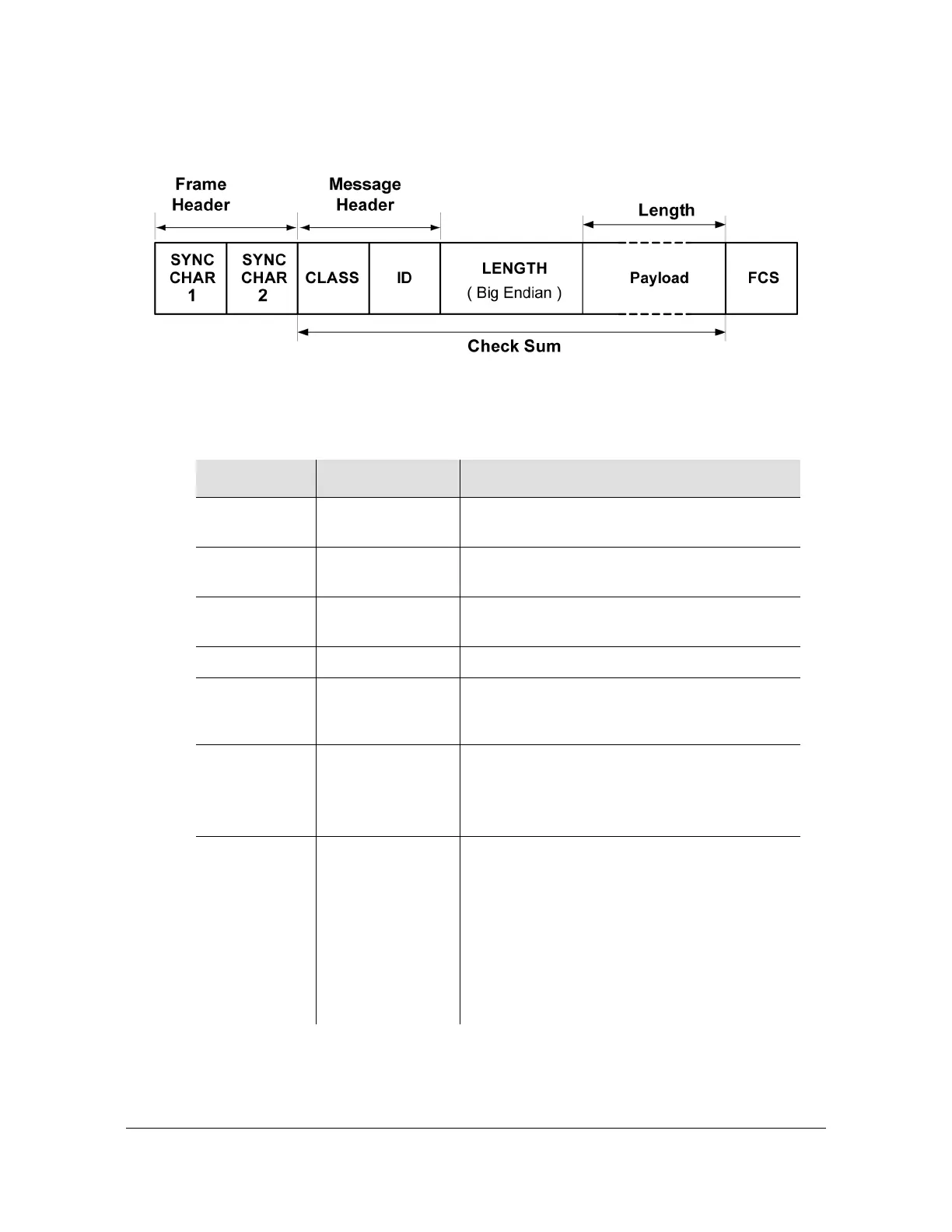

Figure B-2. TOD China Mobile Frame Structure
Table B-16. TOD China Mobile Frame Details
Field Name Field Length Description
Sync Char 1 1 byte Part of Frame Header
0x43 = ASCII character “C”
Sync Char 2 1 byte Part of Frame Header
0x4D = ASCII character “M”
Class 1 byte Basic classification of TOD China Mobile
message
ID 1 byte Serial number of TOD China Mobile message
Length 2 bytes Length of payload only
(Does not include Frame Header, Message Header,
Length Field itself, or FCS)
Payload 16 bytes Contains the message content
See
Table B-17, Table B-18, and Table B-19
for Time Message details.
Frame Check
Sequence
(FCS)
1 byte Generating polynomial FCS is:
G(x) = x
8
+ x
5
+ x
4
+1
Initial value of FCS is set to 0xFF, and there is
no need to negate the input data. Checksum
calculation uses right-shift calculation, and
there is no need to negate the output frame
check data. When the frame check sequence
is transmitted, the LSB (bit 0) is transmitted
first.
