098-00564-000 Revision A3 – July, 2013 TimeProvider 2300/2700 User’s Guide 225
Chapter 4 Provisioning
Provisioning the Non-PTP Outputs
Figure 4-22 shows the command hierarchy for provisioning SyncE.
The TP 2300/2700 only support the unidirectional output QL mode. With
unidirectional, the SyncE output port supports a reduced SyncE, i.e. it transmits
ESMC messages and ignores ESMC messages from the downstream SyncE
Network Element.

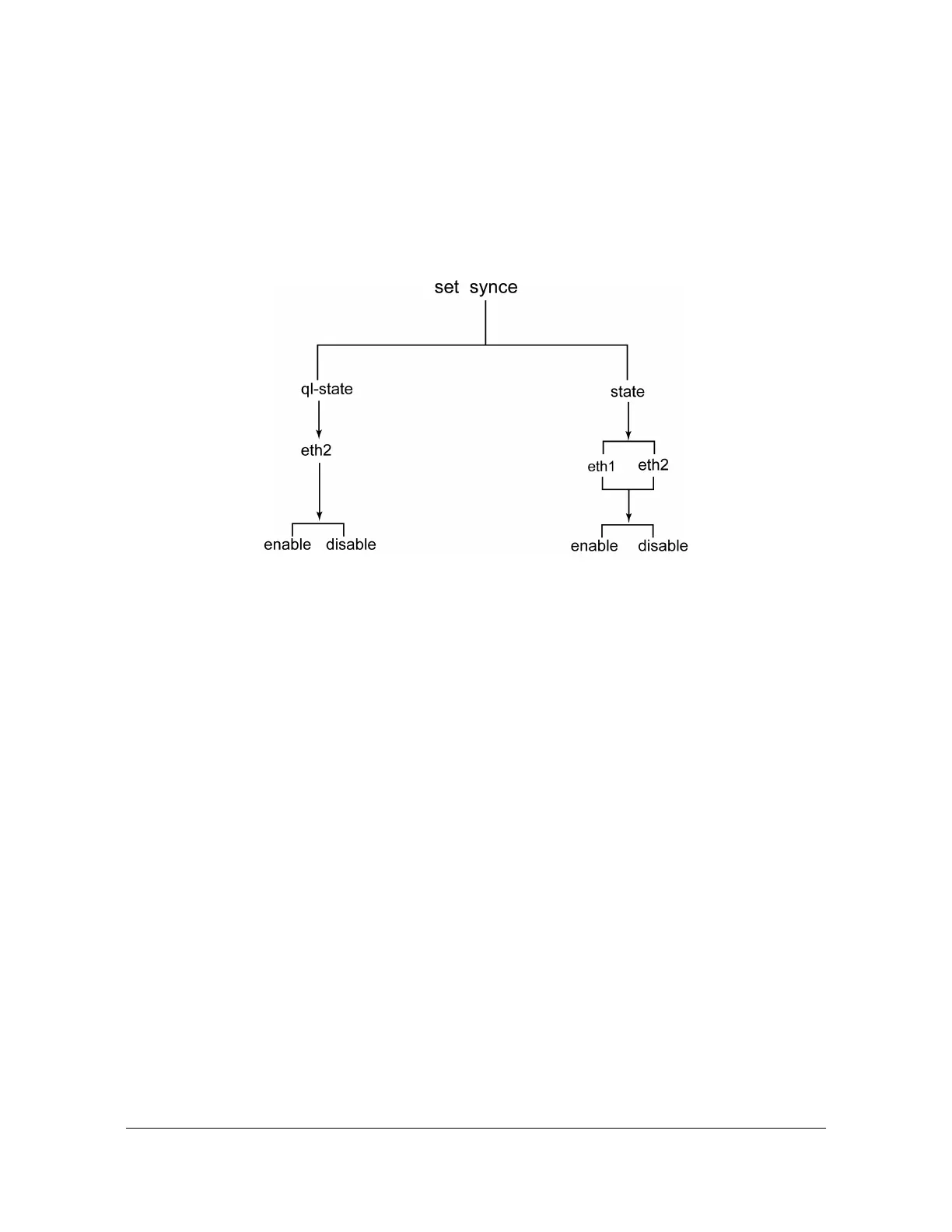

Figure 4-22. Set SyncE Command Hierarchy
QL State for SyncE Output Example
1. Login at the Admin or Config-user level.
2. Type
set synce ql-state eth2 enable and press Enter
Enable ESMC Message for SyncE Output Example
1. Login at the Admin or Config-user level.
2. Type
set synce state eth2 enable and press Enter.
Provisioning Output Generation Behavior
The behavior of the output ports during warm-up, free-run, and holdover states can
be provisioned using the
set output-gen warm-up, set output-gen free-run,
and
set output-gen holdover commands, as shown in Figure 4-23.
