50 TimeProvider 2300/2700 User’s Guide 098-00564-000 Revision A3 – July, 2013
Chapter 2 Installing
Signal Connections
AC Power Connection
Use the following procedure to make the power connections for the AC version of
the TimeProvider 2300/2700. An external Surge Protective Device is required to be
used with the AC version of the TimeProvider 2300/2700.

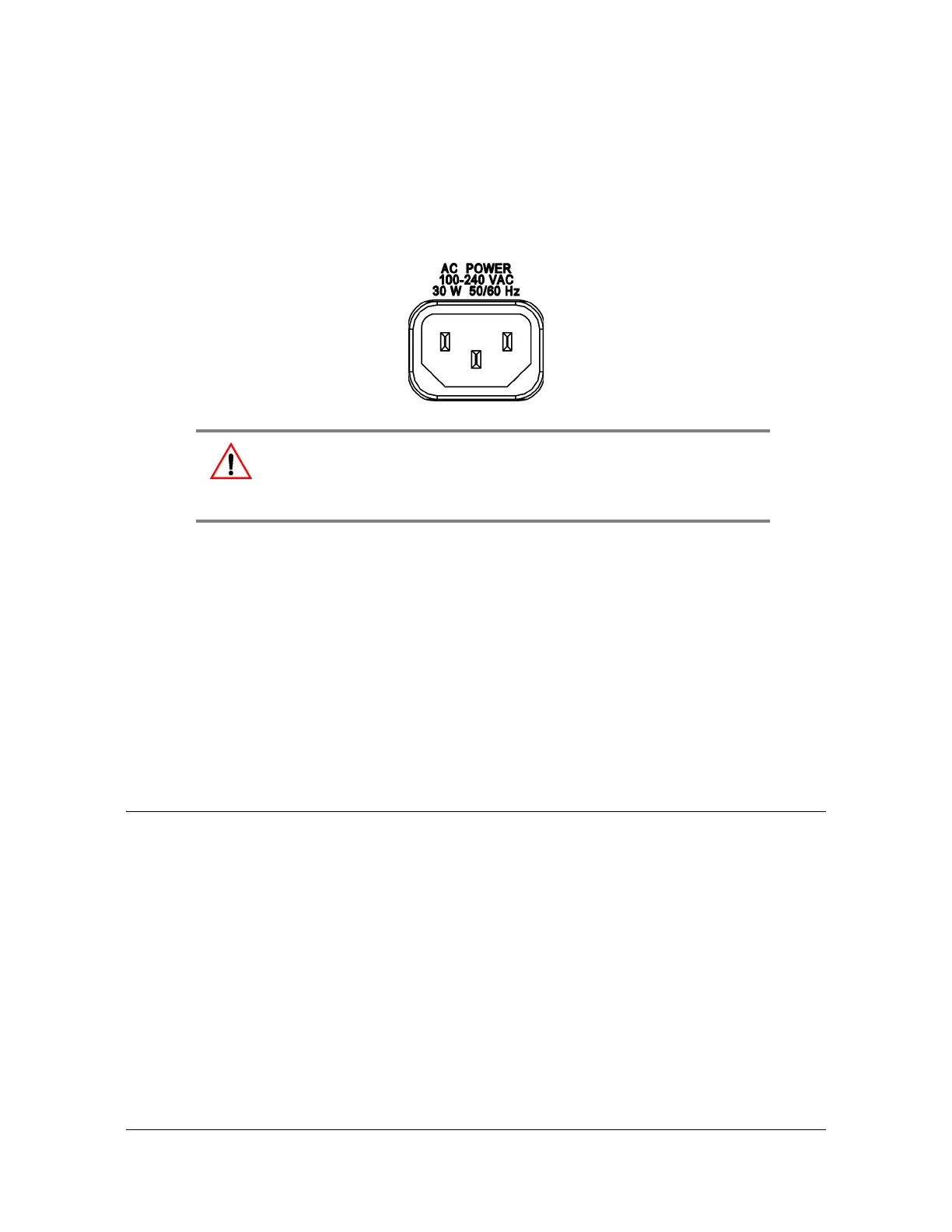

Figure 2-12. TimeProvider 2300/2700 AC Power Connector
1. Insert the female end of the AC power cord into the AC power connector on the
TP 2300/2700.
2. Secure the power cord to the tab on the lower-left corner of the unit with a zip tie
(or similar) to prevent accidental removal of the power cord.
3. Plug the male end of the AC power cord into an active 120 VAC or 240 VAC
power socket.
The unit is now powered up.
Signal Connections
The connectors for the TP 2300/2700 and TP 2300 are located on the front panel.
Communications Connections
The communication connections allow user control of the TimeProvider 2300/2700.
The EIA-232 serial port and Ethernet Management port are located on the front
panel are shown in Figure 1-1.
System Management (MGMT) Port
The System Management port is standard 10/100/1000 Base-T shielded RJ-45
receptacle. To connect the TimeProvider 2300/2700 to an Ethernet network, use an
Ethernet RJ-45 cable. See Table 2-1 for connector pinouts.
Warning: To avoid possible damage to equipment, you must provide
power source protective fusing as part of the installation. The
TimeProvider 2300/2700 is intended for installation in a
restricted-access location.
