098-00564-000 Revision A3 – July, 2013 TimeProvider 2300/2700 User’s Guide 45
Chapter 2 Installing
Making Ground and Power Connections

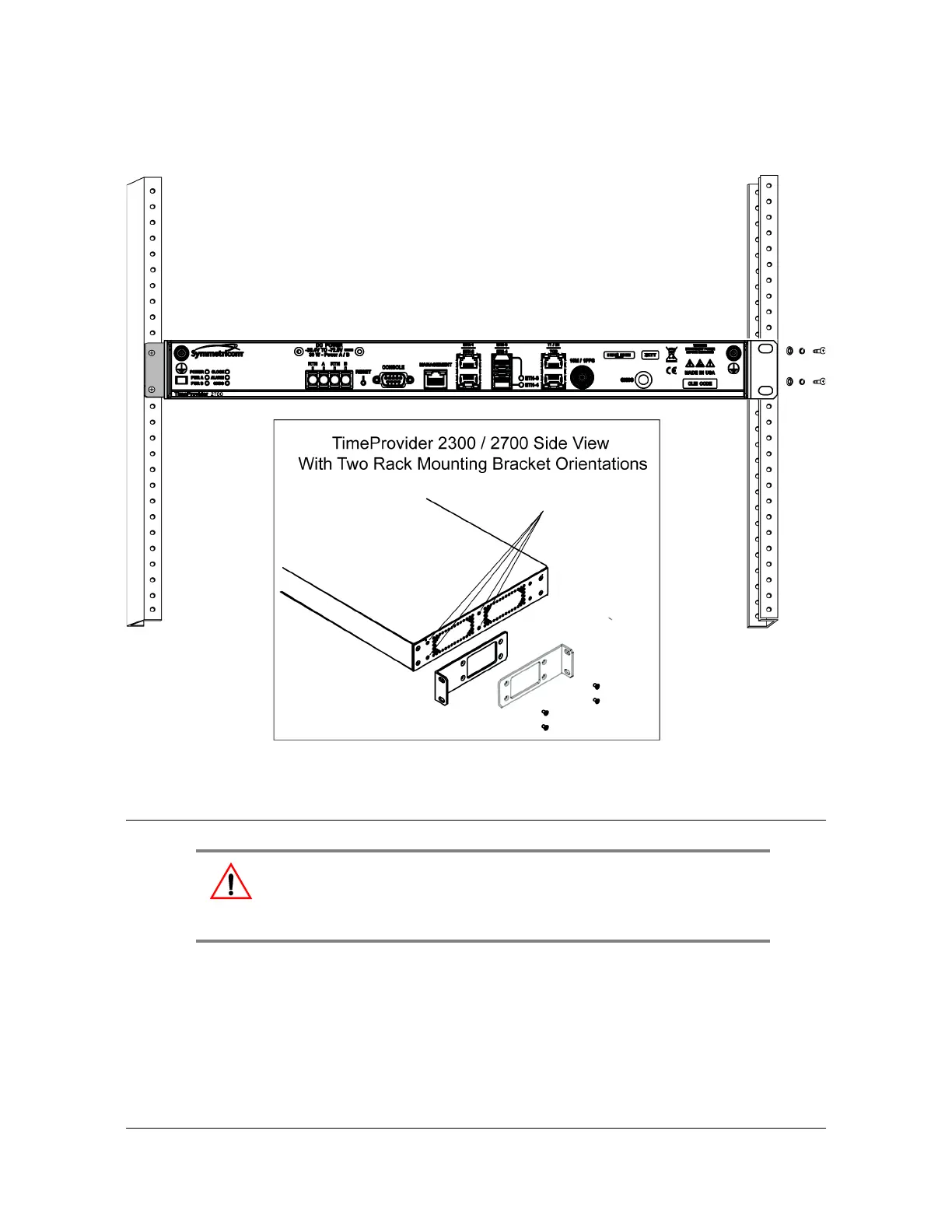

Figure 2-4. Rack Mounting the TP 2300/2700
Making Ground and Power Connections
The DC version of the TimeProvider 2300/2700 has –48 VDC power connectors
which are located on the left side of the front panel (see Figure 2-5). Separate frame
ground terminals are on the left side and right side of the front panel.
The AC version of the TimeProvider 2300/2700 has a 120/240 VAC connector,
which is located on the left side of the front panel. (see Figure 2-6). Separate frame
ground terminals are on the left side and right side of the front panel.
Warning: To avoid accidental power-up of the chassis, remove the A
and B fuses on the branch over-current protection unit before
beginning installation of the DC version of the TP 2300/2700. The unit
is not equipped with a power on/off switch.
