098-00564-000 Revision A3 – July, 2013 TimeProvider 2300/2700 User’s Guide 43
Chapter 2 Installing
Rack Mounting the TimeProvider 2300/2700
8. Remove the anti-static packaging from the unit and accessories.
9. Verify that the model and item number shown on the shipping list agrees with the
model and item number on the equipment. The item number can be found on a
label affixed to the bottom of the unit. See Figure 2-1 for the location of the label
on the TP 2300/2700. Contact your Symmetricom distributor if the model or item
number do not match.
For a complete listing of item numbers, see Table 5-4 and Table 5-5.

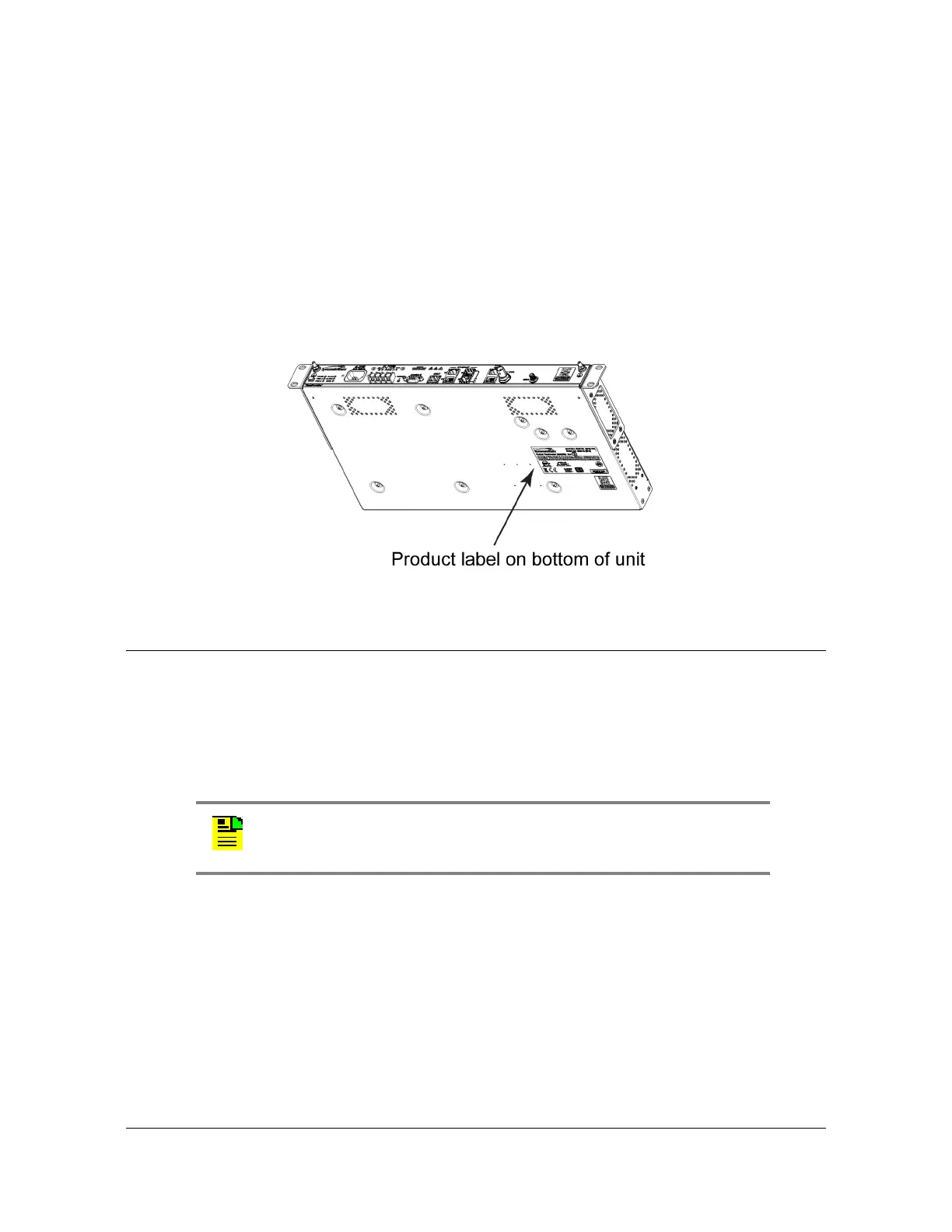

Figure 2-1. TP 2300/2700 - Location of Product Label
Rack Mounting the TimeProvider 2300/2700
The installation procedure described in this section provides general guidelines for
installing the TimeProvider 2300/2700. Always follow applicable local electrical
standards.
Use the following steps to mount the TimeProvider 2300/2700 in a rack.
The TimeProvider 2300/2700 comes equipped with 19-inch rack mounting brackets.
23-inch (58.42 cm) rack mounting adapters are available as a separately ordered
item. 21-inch (ETSI) rack mounting adapters are also available.
1. TimeProvider 2300/2700 is shipped with rack mounting brackets attached. The
rack mounting brackets can be removed and reattached in a different orientation,
if desired. See Figure 2-3 for mounting hole placements. See Figure 2-2 and for
chassis dimensions. Ensure that the mounting brackets on both sides are
Note: 1RU above the TimeProvider 2300/2700 must be left
unoccupied for heat dissipation.
