30 TimeProvider 2300/2700 User’s Guide 098-00564-000 Revision A3 – July, 2013
Chapter 1 Overview
Physical Description

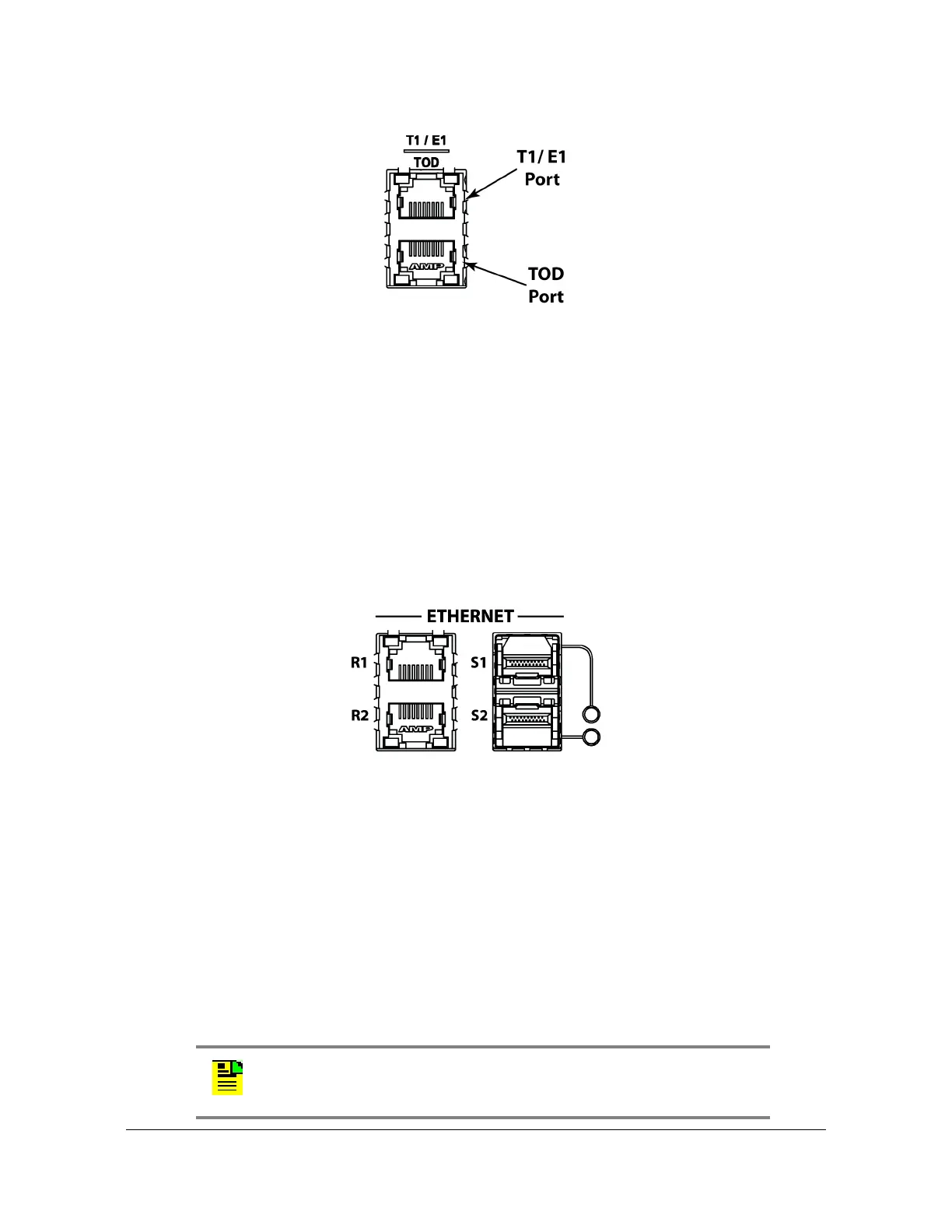

Figure 1-8. T1/E1 Input Connection
Output Connections
PTP / SyncE Output Connections
The TimeProvider 2300/2700 provides two possible PTP/SyncE output
connections, labeled S2 and R2, although only one connection can be used at any
time. The TimeProvider 2300/2700 features a single Ethernet 1000 Small-form
Factor Pluggable (SFP) connection (optical only), labeled S2, for PTP/SyncE output
(see Figure 1-9). The TimeProvider 2300/2700 features a single RJ45 connector,
labeled R2. The TimeProvider 2300/2700 supports a maximum from 8 to 64 clients
per system in various profiles.
Figure 1-9. PTP Output Connections - R2 & S2
T1/E1 Output Connections
The TimeProvider 2300/2700 provides an RJ48c connector (Figure 1-10) with the
following signal types:
2.048 Mb/s (G.703/9)
2.048 MHz (G.703/13)
1.544 Mb/s (G.703)
1.544 MHz (G.703)
This port is also software configurable as a T1 or E1 input.
Note: A license is required to enable T1/E1 functionality.
