Chapter 1 Overview
Physical Description
PTP / SyncE Input Connections
The TimeProvider 2300/2700 provides two possible PTP/SyncE input connections,
labeled S1 and R1, although only one connection can be used at any time. The
TimeProvider 2300/2700 features a single Ethernet 1000 Small-form Factor
Pluggable (SFP) connection, labeled S1, for PTP/SyncE input (see Figure 1-7).
Only optical SFPs are supported. See Table 2-3 for a list recommended and
supported SFPs.

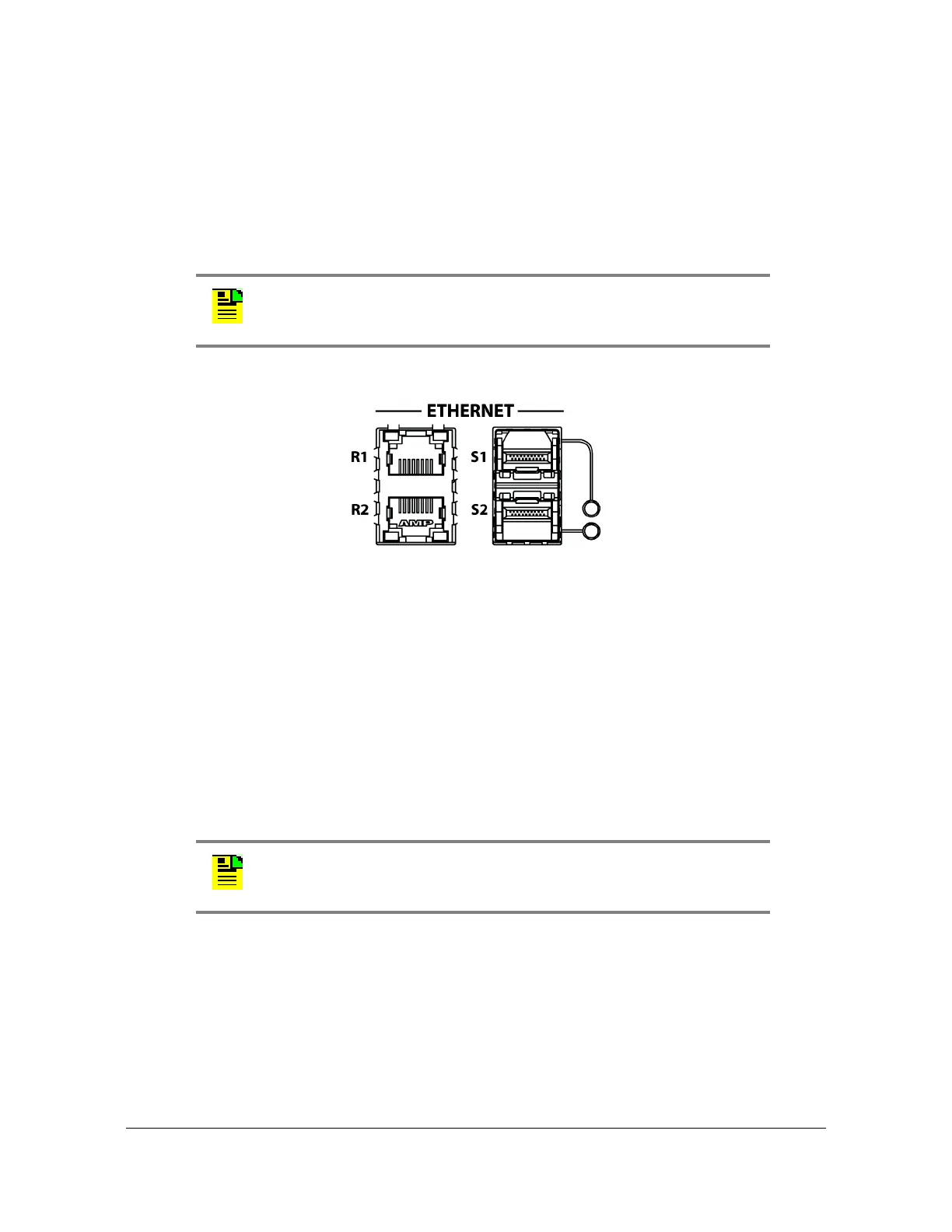

Figure 1-7. PTP Input Connections - R1 & S1
T1/E1 Input Connections
The TimeProvider 2300/2700 provides an RJ48c connector (Figure 1-8) that can
accept the following signal types:
2.048 Mb/s (G.703/9)
2.048 MHz (G.703/13)
1.544 Mb/s (G.703)
1.544 MHz (G.703)
This port is also software configurable as a T1 or E1 output.
Note: A license is required to enable PTP/SyncE Input functionality
on the TP 2700.
Note: A license is required to enable T1/E1 functionality.
