Chapter 2 Installing
Rack Mounting the TimeProvider 2300/2700
attached to the chassis at equal distances from the front of the unit (see
Figure 2-4) using 6-32 x 1/4-inch screws.
2. Mount the chassis to the front of the equipment rack rails with four screws and
associated hardware. Use the proper screws for the equipment rack.

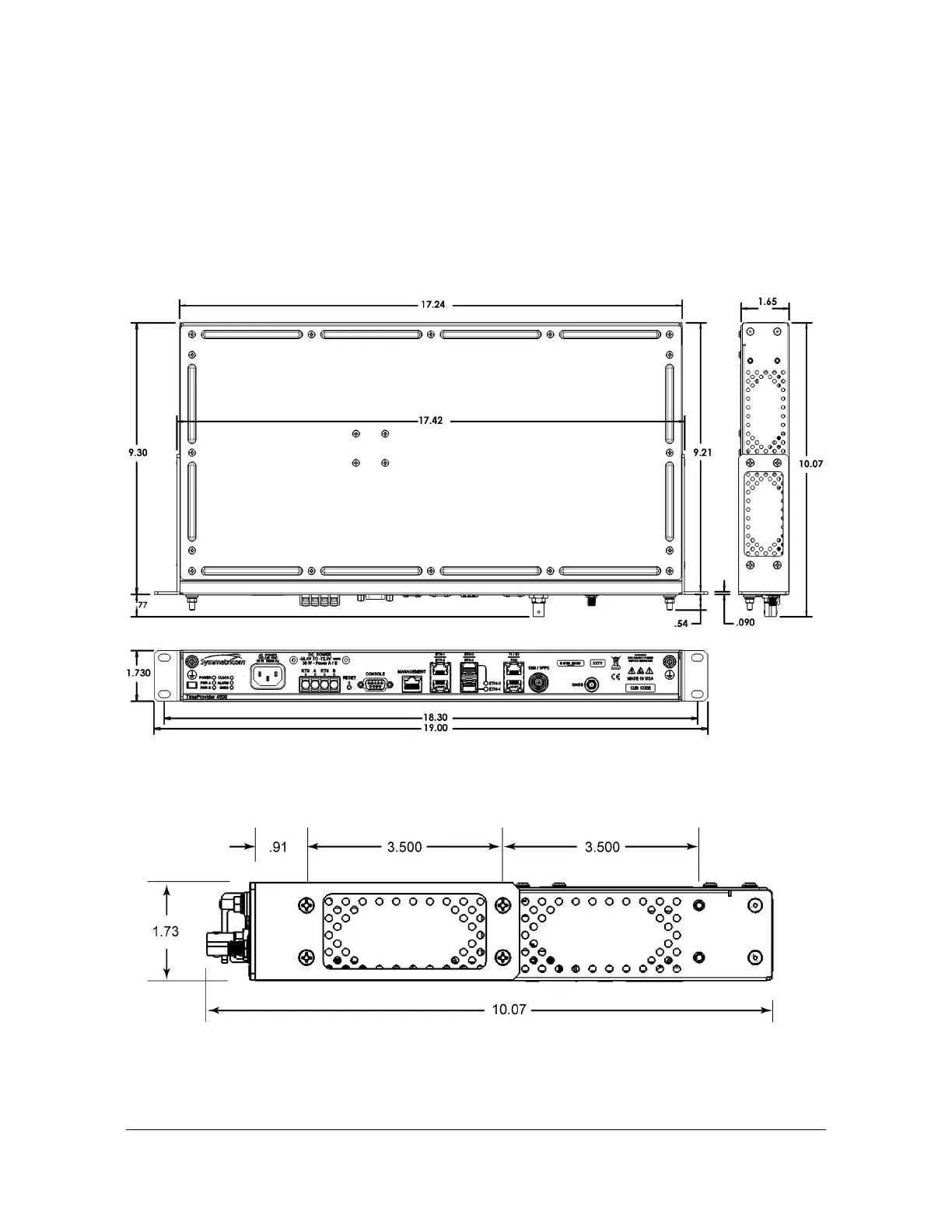

Figure 2-2. Dimensions for TimeProvider 2300/2700
Figure 2-3. Mounting Hole Placements for TP 2300/2700
