098-00564-000 Revision A3 – Ju
ly
, 2013
TimeProvider 2300/2700 User
’s Guide
195
Chapter 4 Provisioning
Provisioning VLAN

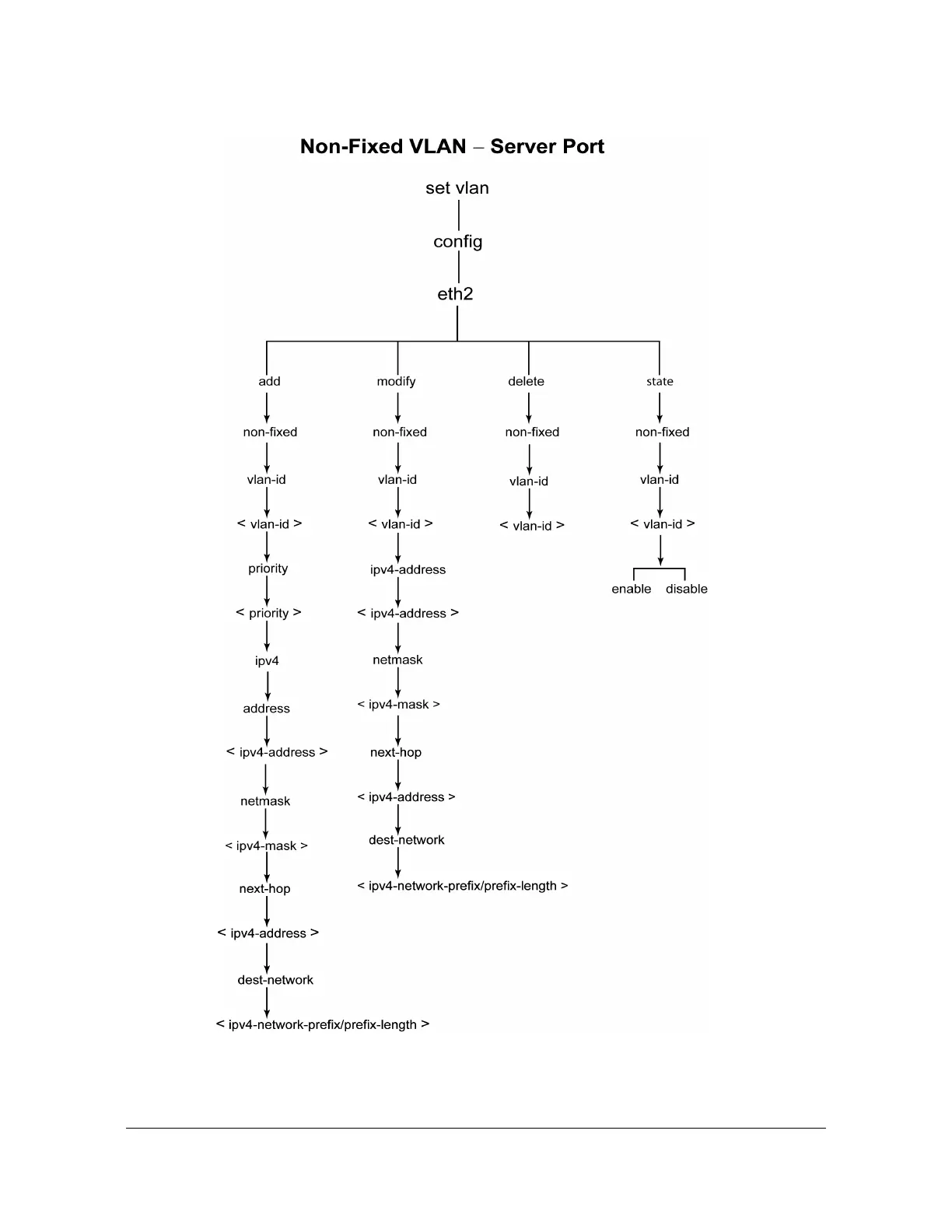

Figure 4-5.
Non-Fixed VLAN for Server Port — set vlan Commands
194
196
Table of Contents
Default Chapter
3
Table of Contents
3
How to Use this Guide
15
Purpose of this Guide
16
Conventions Used in this Guide
18
Warnings, Cautions, Recommendations, and Notes
19
Related Documents and Information
20
Where to Find Answers to Product and Document Questions
21
Chapter 1 Overview
23
Overview
24
Software Options
25
Physical Description
26
Timeprovider 2700 DC Version Connectors and Leds
27
Timeprovider 2700 AC Version Connectors and Leds
27
Timeprovider 2300 DC Version Connectors and Leds
27
Timeprovider 2300 AC Version Connectors and Leds
27
Serial Port Connector
28
GNSS Input Connection
28
Communications Connections
28
Output Connections
30
T1/E1 Input Connection
30
Reset Button
31
T1/E1 & TOD Output Connections
31
Timeprovider 2300/2700 AC Version Power and Ground
32
Timeprovider 2300/2700 DC Version Power and Ground
32
Functional Description
32
Functional Architecture
33
Leds
33
Communication Ports
34
Leds for TP2300 - AC Version
34
Leds for TP2300 - DC Version
34
Leds for TP2700 - AC Version
34
Leds for TP2700 - DC Version
34
Time Inputs
35
Configuration Management
36
Web Interface
37
Alarms
37
Chapter 2 Installing
39
Getting Started
40
Installation Tools and Equipment
41
Unpacking the Unit
42
Rack Mounting the Timeprovider 2300/2700
43
TP 2300/2700 - Location of Product Label
43
Dimensions for Timeprovider 2300/2700
44
Mounting Hole Placements for TP 2300/2700
44
Making Ground and Power Connections
45
Rack Mounting the TP 2300/2700
45
Ground Connections
46
Timeprovider 2300 Power & Ground Connections - AC Version
46
Timeprovider 2300 Power & Ground Connections - DC Version
46
Timeprovider 2700 Power & Ground Connections - AC Version
46
Timeprovider 2700 Power & Ground Connections - DC Version
46
Universal Ground Symbol
47
DC Power Connections
48
Timeprovider 2300/2700 DC Power Connector Cover
48
AC Power Connection
50
Signal Connections
50
Communications Connections
50
Timeprovider 2300/2700 AC Power Connector
50
Serial Port Male Mating Connector Pins
51
System Management Ethernet Connector Pin Assignments
51
Serial Port Connector Pin Assignments
51
TP 2300/2700 Synchronization and Timing Connections
52
PTP Input/Output
52
Optical SFP Transceiver
53
Recommended and Supported SFP Transceivers
53
T1 / E1 and TOD Outputs RJ-45 Connection
54
T1/E1 Output Port Pin-Outs - RJ-48C Connector
54
1PPS+TOD Port Pin-Outs - RJ45 Connector
55
Connecting the GNSS Antenna
56
10Mhz/1Pps Output Connection
56
GNSS Input Connection
56
Default Parameters for TOD Information Transmission
56
Installation Check List
57
Applying Power to the Timeprovider 2300/2700
57
Installation Completeness Checklist
57
LED Descriptions
58
Normal Power up Indications
58
Chapter 3 CLI Commands
61
CLI Overview
62
Timeprovider 2300/2700 CLI Command Conventions
62
CLI Command Keyboard Usage
62
Command Line Format
63
Command User Levels
64
Timeprovider 2300/2700 CLI Command Set
64
Show Alarm
64
Show Alarm-Config
66
Set Alarm-Config
68
Alias
70
Show Bridge-Time
72
Set Bridge-Time
72
Show Clock
73
Set Clock
73
Set Configuration
75
Show Eia-232
76
Show Ethernet
77
Set Ethernet
78
Show Firewall
80
Set Firewall
80
Show Gnss
81
Set Gnss
83
Show Hardware-Status
85
History
86
Show Hostname
87
Set Hostname
87
Show Image
88
Set Image
88
Show Input
90
Set Input
91
Show Inventory
94
Set Inventory
95
Show Ip
96
Set Ip
97
Show Led
100
Show License
101
Set License
101
Show Log
104
Show Log-Config
106
Set Log-Config
106
Logout
108
Show Output
109
Set Output
111
Show Output-Gen
114
Set Output-Gen
114
Password
116
Ping
117
Show Port-Control
118
Set Port-Control
118
Show Pql-Ssm
120
Show Ptp
123
PTP Client Status Descriptions
129
Set Ptp
132
PTP Profiles
132
Reboot System
151
Show Ref
152
Set Ref
153
Show-Session-Timeout
156
Set-Session-Timeout
156
Show Snmp
157
Set Snmp
159
Show Ssm-Option
161
Set Ssm-Option
161
Show Status
162
Clock Status
163
Clock States
165
Show Synce
166
Set Synce
167
Test
169
Upgrade
170
Show User
172
Set User
172
Show Vlan
174
Set Vlan
175
Chapter 4 Provisioning
181
Establishing a Connection to the Timeprovider 2300/2700
182
Communicating through the Serial Port
182
Communicating through the Ethernet Port
182
Managing the User Access List
184
User Level and Access
184
Logging in
185
Adding a User
186
Changing a User's Password
187
Deleting a User
187
Displaying Current Users and User Access Levels
187
Changing a User's Access Level
188
Provisioning the Ethernet Ports
189
Provisioning MGMT Ethernet Port
189
Set IP Command Hierarchy
189
Provisioning the Service Ethernet Ports
190
Set Ethernet Command Hierarchy
191
Provisioning VLAN
192
VLAN on the ETH2 Server Port
192
Set Vlan-Mode Command Hierarchy
192
Fixed VLAN for Server Port- Set Vlan Commands
194
Non-Fixed VLAN for Server Port - Set Vlan Commands
195
Vlans on the ETH1 Client Port
196
Fixed VLAN for Client Port- Set Vlan Commands
197
Provisioning the Input Reference
198
Reference Switching Modes
198
Set Ref Command Hierarchy
198
Reference Selection Criteria
199
PQL Usage & Mapping
200
PQL Input and Output Mapping
200
PQL for Frequency References - Converted from SSM or Clockclass
200
PQL Values for Clock States
201
Time and Frequency References - Default Priorities and PQL Values
201
Provisioning Input Parameters
203
Setting PTP Input Client Parameters
203
Set PTP Client Command Hierarchy (Partial)
203
Set PTP Client Config Command Hierarchy (Partial)
204
Set PTP Client Config Command Hierarchy (Cont'D)
205
Setting GNSS Parameters
206
Set GNSS Command Hierarchy
207
Setting E1/T1 Input Reference Parameters
209
Set Port-Control Command Hierarchy
209
Set Input Command Hierarchy
210
Provisioning Synce Input
212
Set Synce Command Hierarchy
212
Provisioning the PTP Output
213
PTP Profiles
213
PTP Server Parameters
213
PTP Profiles for the TP 2300/2700
213
Set PTP Master Command Hierarchy - Default Profile
215
Set PTP Master Command Hierarchy - Unicast Profiles
216
Two-Step Clock
217
One-Step Clock
218
Provisioning the Non-PTP Outputs
220
Quality Levels for Output Signals
220
PQL for Frequency Outputs - Converted to SSM or Clockclass
220
Provisioning the T1/E1 Output
221
Set Output Command Hierarchy
222
Provisioning TOD+1PPS Output
223
Provisioning the 10Mhz & 1PPS Output
224
Provisioning Synce Output
224
Provisioning Output Generation Behavior
225
Set Synce Command Hierarchy
225
Setting the System Date and Time
226
Output Generation Behavior Commands
226
Provisioning Alarms
227
Disabling Specific Alarms
228
Showing Current Alarm Settings
228
Set Alarm-Config Commands
228
Showing Current Alarms
229
Displaying Alarm and Unit Status
229
Saving and Restoring Provisioning Data
230
Backing up Provisioning Data
230
Set Configuration Command Hierarchy
230
Restoring Provisioning Data
231
Provisioning for SNMP
231
Adding or Deleting a Manager IP Address
232
Set SNMP Commands
232
Provisioning to Generate V2 Traps
233
Provisioning to Generate V3 Traps
233
Adding and Removing V2 Communities
233
Adding and Removing SNMP V3 Users
234
Adding and Removing SNMP V3 Trap Users
235
Testing TP 2300/2700 Provisioning
235
LED Indications
235
Verifying the Port IP Addresses
236
Verifying the Reference
239
Verifying GNSS (TP 2700 Only)
240
Verifying PTP Master/Server Functionality
242
Verifying PTP Input Client Functionality
243
Verifying Synce Functionality
245
Verifying T1/E1 Functionality
246
Verifying TOD Functionality
248
Verifying 10 Mhz/ 1PPS Functionality
249
Chapter 5 Maintenance and Troubleshooting
251
Preventive Maintenance
251
Preventive Maintenance
252
Safety Considerations
252
ESD Considerations
252
Troubleshooting
253
Diagnosing the TP 2300/2700 by Symptom
253
Troubleshooting Symptoms
253
Troubleshooting Procedure
255
Diagnosing the TP 2300/2700- Reading LED Conditions
258
LED Conditions
258
Repairing the Timeprovider 2300/2700
264
Upgrading the Firmware
265
TP 2300/2700 Upgrade
266
Timeprovider 2300/2700 Part Numbers
267
System and Accessory Part Numbers
267
TP 2300 Component Part Numbers
267
GNSS Antenna Kits
267
TP 2700 Component Part Numbers
268
GNSS Antenna
269
Accessories
269
Returning the Timeprovider 2300/2700
270
Repacking the Unit
270
Equipment Return Procedure
270
User's Guide Updates
271
Contacting Technical Support
272
Appendix A System Messages
273
Message Provisioning
274
Facility Codes
274
Severity Codes
274
System Notification Messages
275
Secondary Index Descriptions for System Notification Messages
286
Appendix B Specifications and Factory Defaults
291
Specifications
292
Mechanical
292
Environmental
292
Timeprovider 2300/2700 Mechanical Specifications
292
Timeprovider 2300/2700 Environmental Specifications
292
Power
293
Compliance & Certifications
294
Timeprovider 2300/2700 Compliance Specifications
294
Serial Port
296
MGMT Port
296
Input Signals
296
Timeprovider 2300/2700 Serial Port Specifications
296
Timeprovider 2300/2700 LAN Port Specifications
296
Timeprovider 2700 GNSS Input Signal Specifications
296
Timeprovider 2300/2700 DS1 Input Signal Specifications
298
Timeprovider 2300/2700 E1 Input Signal Specifications
298
Timeprovider 2300/2700 PTP Input Signal Specifications
298
Timeprovider 2300/2700 Synce Input Signal Specifications
299
Output Signals
300
Timeprovider 2300/2700 PTP Input Signal Specifications
300
Timeprovider 2300/2700 Synce Input Signal Specifications
300
Timeprovider 2300/2700 DS1 Input Signal Specifications
301
Timeprovider 2300/2700 E1 Output Signal Specifications
301
Timeprovider 2300/2700 1PPS+TOD Output Signal Specifications
301
Timing Relationship between 1PPS and TOD for 1 PPS+TOD Outputs
302
TOD China Mobile Frame Structure
303
TOD China Mobile Frame Details
303
TOD China Mobile Message Details
304
TOD China Mobile Time Information Message Payload Contents
304
TOD China Mobile Time Status Message Payload Contents
305
TOD Cisco Message Frame Structure and Details
306
Clocks
307
Timeprovider 2300/2700 10 Mhz Output Signal Specifications
307
Timeprovider 2300/2700 1PPS Output Signal Specifications
307
GNSS Antenna Kits Specifications
308
GNSS Antennas with Internal LNA Specifications
308
1PPS Time Accuracy
308
Holdover Performance
308
GNSS Antennas with Internal Low-Noise Amplifier Specifications
308
GNSS Lightning Arrestor Specifications
310
Lightning Arrestor Specifications
310
GNSS L1 Inline Amplifier Specifications
310
GNSS Antenna Coaxial Cable Specifications
311
Antenna Cable Specifications
311
Factory Defaults
312
TP 2300/2700 Defaults
312
General and Communication Parameters
312
GNSS Input Port Parameters
314
PTP Client ETH1 Port IP Parameters
314
PTP Client ETH1 Input Port Parameters
315
Synce Input ETH1 Port IP Parameters
316
T1/E1 Input Port Parameters
316
PTP Grand Master ETH2 Port IP Parameters
316
PTP Grand Master ETH2 Port VLAN Parameters - Non-Fixed
317
PTP Grand Master ETH2 Port Active Profile
318
PTP Grand Master Telecom-2008 Profile Unicast Parameters
318
PTP Grand Master ITU-T G.8265.1 Profile Unicast Parameters
319
PTP Grand Master Multicast Parameters (Default Profile)
319
T1/E1 Output Port Parameters
320
T1/E1 Input / Output Parameters
321
10Mhz/1Pps Output Port Parameters
321
Alarm Default Values
322
SSM Settings
322
GNSS Port Alarm Parameters
322
Appendix C Installing GNSS Antennas
323
Antenna Kits Overview
324
Considerations for Antenna Installation
324
Antenna Kits Accessories
325
Lightning Arrestor
325
GNSS L1 In-Line Amplifier
325
Antenna Coaxial Cable
325
GNSS Antenna Installation
326
Planning the Antenna Location
326
Locating the GNSS Antenna
326
Antenna Installation Tools and Materials
328
Cutting Antenna Cables
329
Installing the Antenna
329
GNSS Antenna Kits
329
GNSS Antenna Installation
330
Connecting the Cable to the Antenna
331
Installing the Lightning Arrestor
331
Connecting the GNSS Antenna
332
Antenna Installation Completeness Checklist
332
Available GNSS Antenna Kits
333
GNSS Antenna Kits for Timeprovider 2700
333
Antenna Coaxial Cable
334
LMR-400/LMR-400FR Antenna Coaxial Cable Specifications
334
Appendix D Software Licenses
335
Third-Party Software
336
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Symmetricom TimeProvider 2700 and is the answer not in the manual?
Ask a question
Symmetricom TimeProvider 2700 Specifications
General
Brand
Symmetricom
Model
TimeProvider 2700
Category
Network Hardware
Language
English
Need help?
General
To Next Page
