098-00564-000 Revision A3 – July, 2013 TimeProvider 2300/2700 User’s Guide 53
Chapter 2 Installing
Signal Connections
The TimeProvider 2300/2700 also features two standard 100/1000Base-T shielded
RJ-45 receptacles, R1 and R2, that can be used instead of the SFP ports. R1 is the
PTP input connection. R2 is the PTP output connection.
Only the SFP transceivers in Table 2-3 are recommended and supported. Other
SFP transceivers are not supported and may cause the TimeProvider 2300/2700 to
not comply with regulatory requirements. Figure 2-15 shows a typical optical SFP
transceiver.

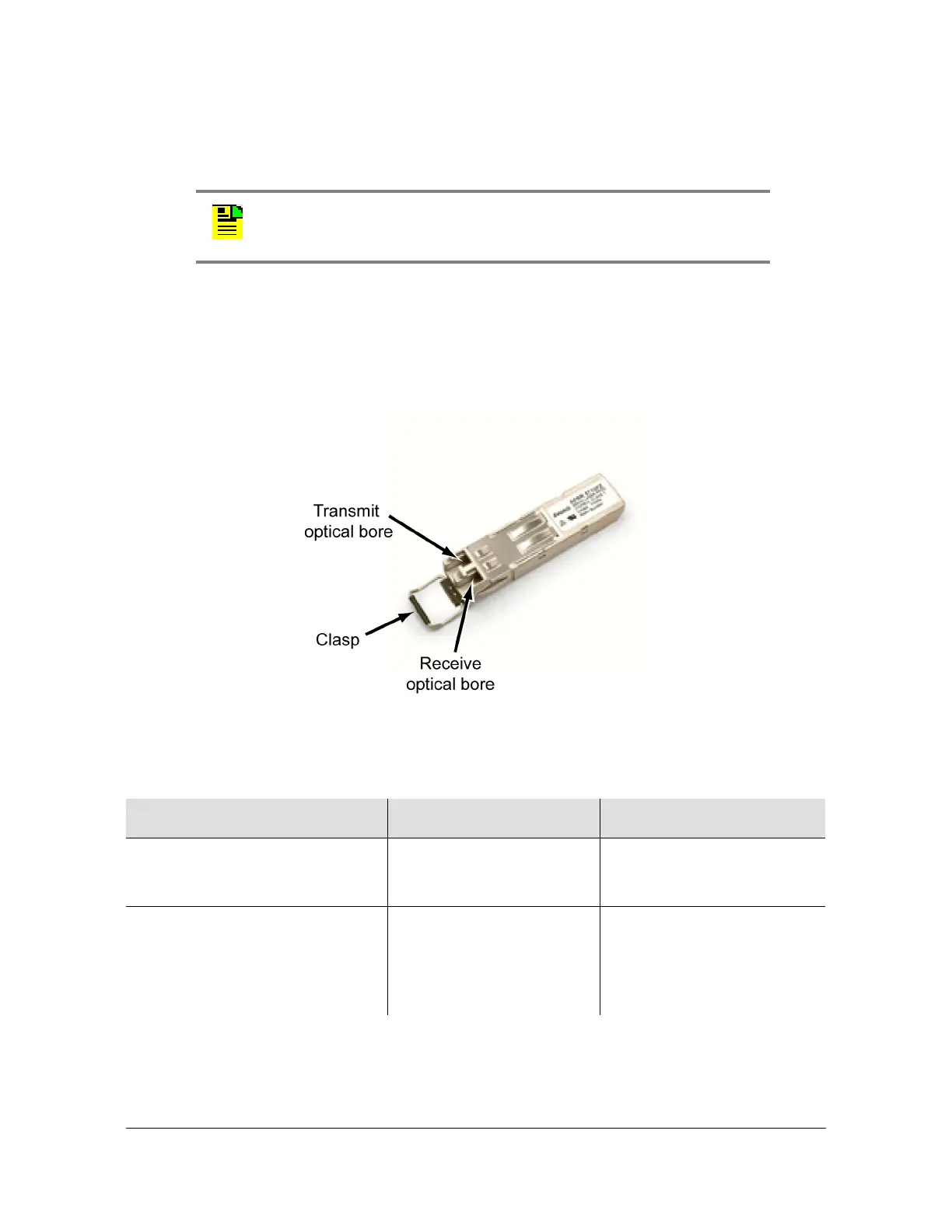

Figure 2-15. Optical SFP Transceiver
Note: The SFP ports, S1 and S2, are mutually exclusive of the RJ-45
ports, R1 and R2
Table 2-3. Recommended and Supported SFP Transceivers
Type Transceiver Distance (max)
Optical 1000 Base-LX
Single-Mode Ethernet 1310nm
(Symmetricom 121-20621-10-2)
Avago AFCT-5701PZ
Finisar FTLF1319P1BTL
10km on 9/125m
single-mode fiber
Optical 1000 Base-SX
Multi-Mode Ethernet 850nm
(Symmetricom 121-20621-11-2)
Avago AFBR-5710PZ
Finisar FTLF8519P2BNL
500m on 50/125m
multi-mode fiber
275m on 62.5/125m
multi-mode fiber
