192 TimeProvider 2300/2700 User’s Guide 098-00564-000 Revision A3 – July, 2013
Chapter 4 Provisioning
Provisioning VLAN
Provisioning VLAN
The command for enabling VLAN mode for the Ethernet ports is shown in Figure
4-3.

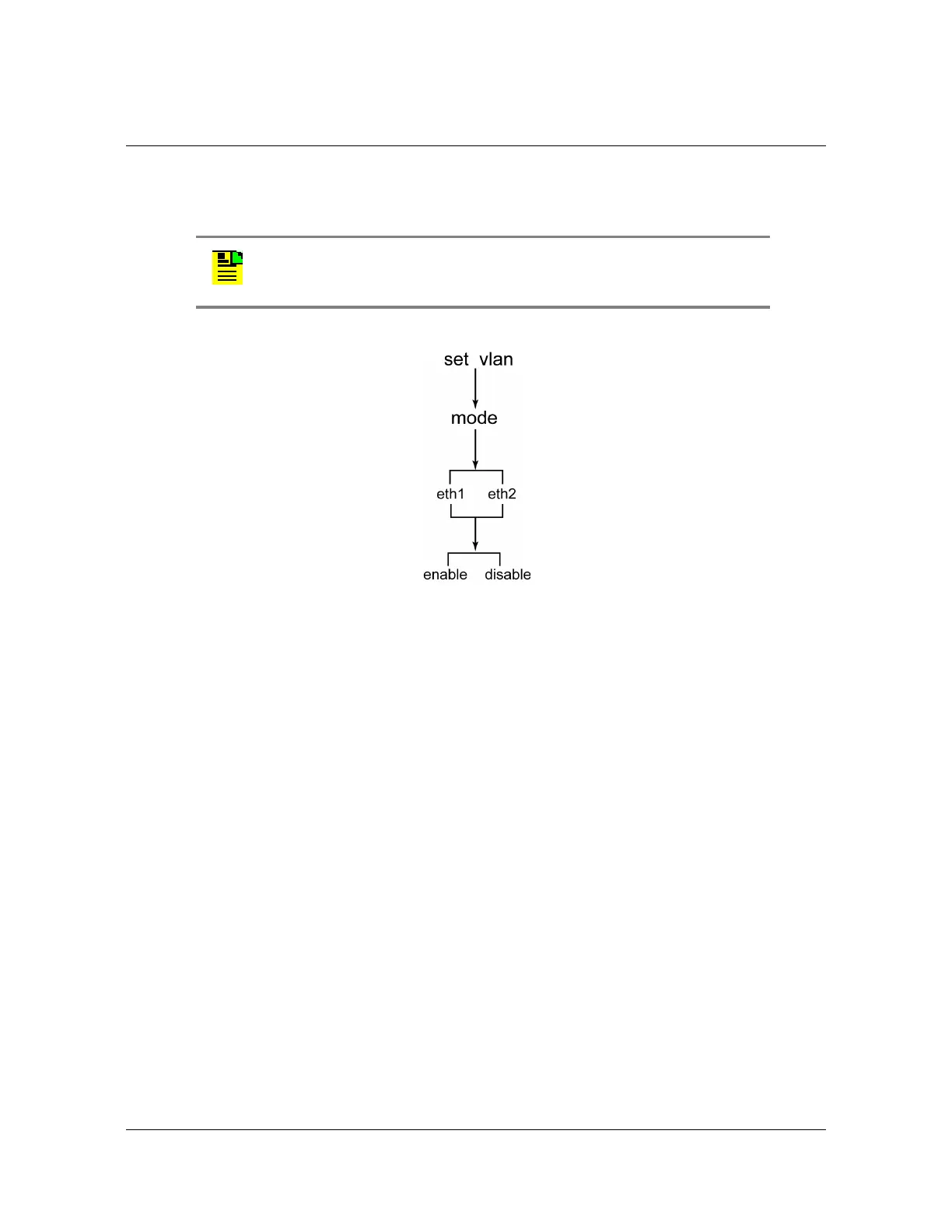

Figure 4-3. Set Vlan-Mode Command Hierarchy
VLAN on the ETH2 Server Port
The TP 2300/2700 supports up to 64 VLANs on the ETH2 server port. Each VLAN
must be within it own unique network/subnet. There is no default VLAN
configuration.
There are 16 VLANs that can accessed by index. These VLANs can be configured
with a default gateway and are considered “fixed” VLANs. These VLANs can be
deleted with the
set vlan config eth2 delete command. The command
hierarchy for configuring fixed VLANs is shown in Figure 4-4. Fixed VLANs include
a gateway address.
The remaining 48 VLANs are considered to be “non-fixed” VLANs, each of which
can be configured with one static route. When a non-fixed VLAN is removed, the
route will be automatically deleted. A non-fixed VLAN can also be deleted by the
user with the
set vlan config eth2 delete non-fixed vlan-id command.
The command hierarchy for configuring non-fixed VLANs is shown in Figure 4-5.
Non-fixed VLANs require specification of an IP address for the “next hop” and
network prefix/prefix length for the destination network, instead of the gateway
address.
Example 1
Note: VLAN mode will not enable unless there is at lease one VLAN
configured and enabled within that Ethernet port.
