098-00564-000 Revision A3 – July, 2013 TimeProvider 2300/2700 User’s Guide 209
Chapter 4 Provisioning
Provisioning Input Parameters
Setting E1/T1 Input Reference Parameters
The T1/E1 port can be configured as an E1 or T1 input frequency reference. The
set ref command is used to provision the T1/E1 port as a reference, as shown in
Figure 4-7. The
set port-control command is used to provision the T1/E1 port
as an input and to select the signal type as T1 or E1, as shown in Figure 4-13.The
set input command is used to configure the frametype and associated
parameters for the T1/E1 port. See Figure 4-14 for the
set input command
hierarchy.
The priority value or user-configured PQL value for the T1/E1 port is provisioned
with the
set ref command. See Reference Selection Criteria, on page 199 for
additional information.

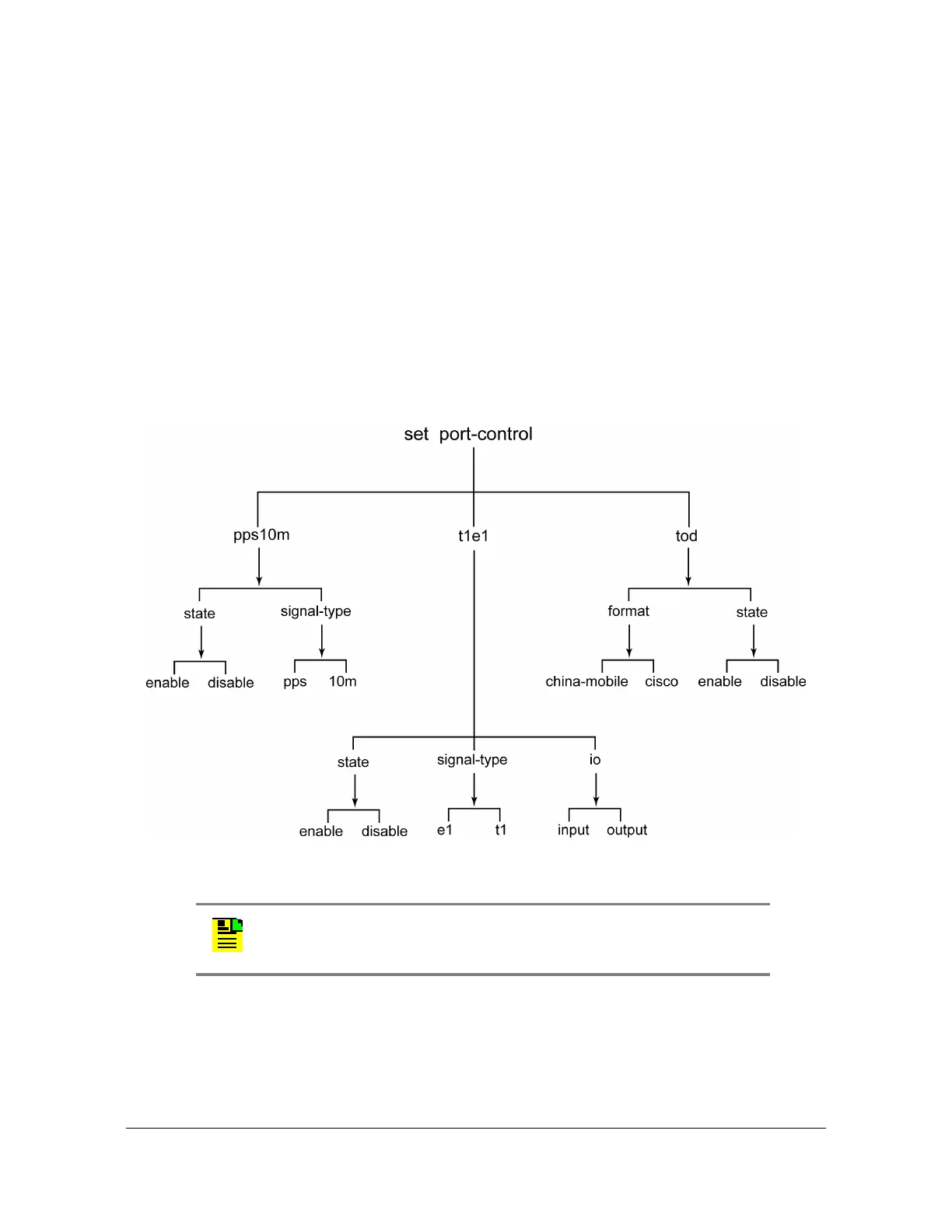

Figure 4-13. Set Port-Control Command Hierarchy
Note: A license is required to enable T1/E1 functionality.
