54 TimeProvider 2300/2700 User’s Guide 098-00564-000 Revision A3 – July, 2013
Chapter 2 Installing
Signal Connections
T1/E1 Connection
The TimeProvider 2300/2700 features a single RJ-48C port for either a T1 or E1
output signal, as shown in Figure 2-16. This RJ-48C port is software configurable as
either a T1 output port or E1 output port.
The T1/E1 port can provide the following output signal types:
2.048 Mb/s (G.703/9)
2.048 MHz (G.703/13)
1.544 Mb/s (G.703)
1.544 MHz (G.703)

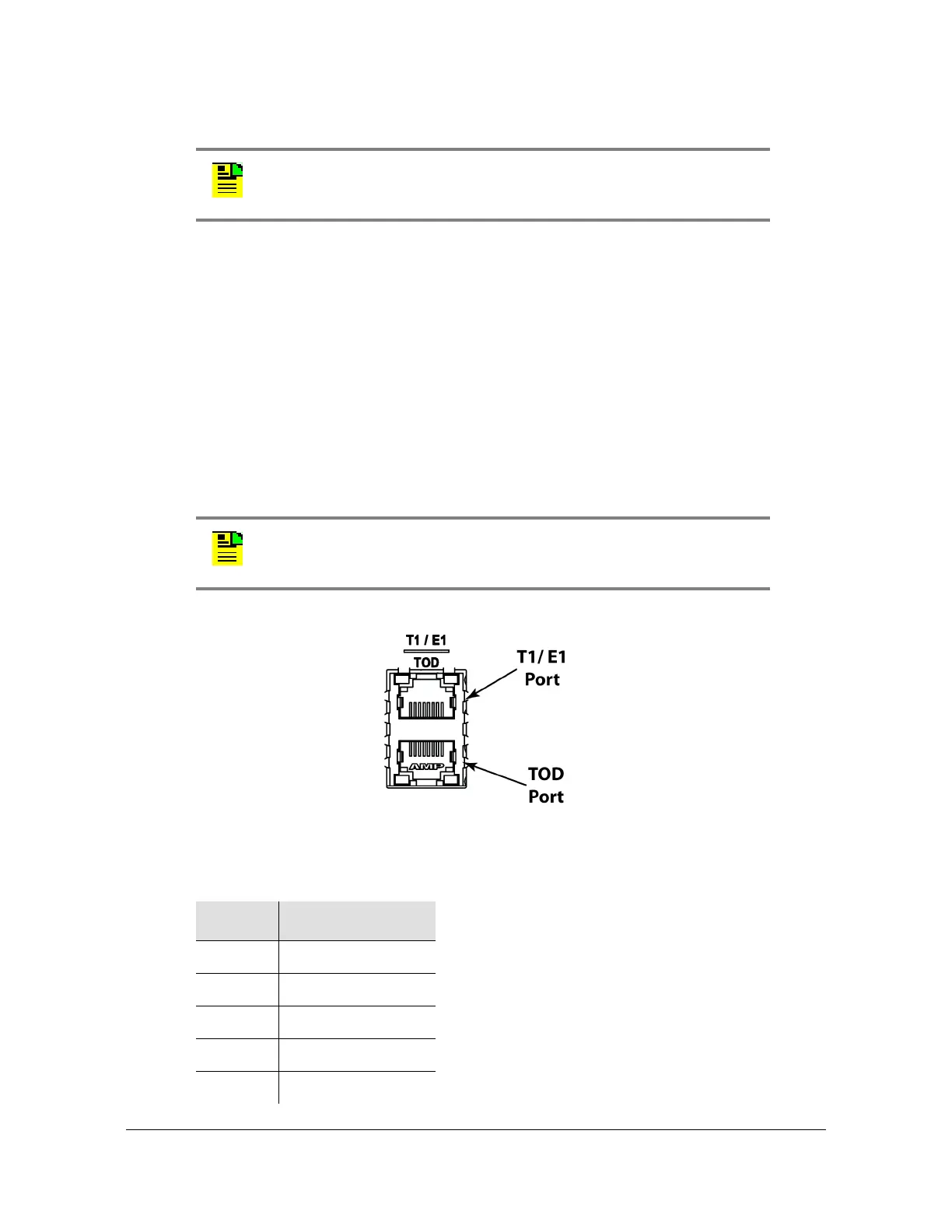

Figure 2-16. T1 / E1 and TOD Outputs RJ-45 Connection
Note: Recommended and supported SFP connectors comply with
FDA radiation performance standards, 21 CFR Subchapter J.
Note: A license is required to enable T1/E1 functionality.
Table 2-4. T1/E1 Output Port Pin-Outs - RJ-48C Connector
Pin Signal
1Rx Ring
2Rx Tip
3NC
4Tx Ring
5Tx Tip
