INTRODUCTION
The Telecor VS1 phone system is a PC-based expandable PBX. The base system has two main
components: the Telecor Voice Server (TVS) and the Telecor Port Expansion Unit (PEUs). Each
PEU provides 16 ports. Up to 11 additional PEUs can be added with 16 ports each, enabling the
Telecor VS1 phone system to expand to 192 ports, depending upon the type of station sets used.
A number of station options are available in the form of Computer Telephony Integration (CTI)
applications or desk phones. The system is managed with the Tel-Site system management
application, and configured with the VS1 Editor configuration application.

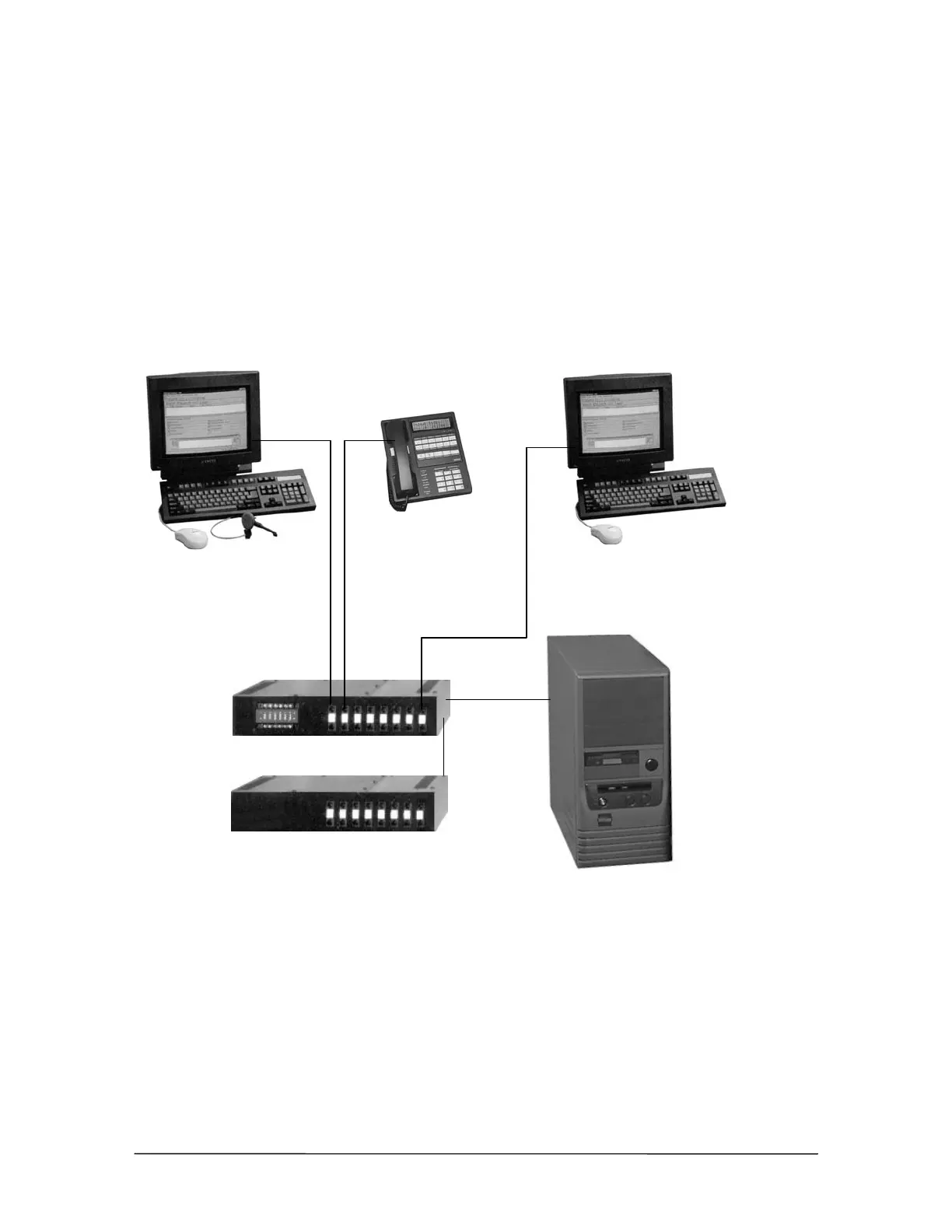

The diagram below shows the main components of the Telecor VS1 phone system.
The components of a
Telecor VS1 phone
system
Telecor Voice Server Model 200
CTI Client Applications
• Attendant
• Connect
System Management & Configuration
• Tel-Site System Management application
• VS1 Editor Configuration application
Phones
• DP200 Display Phone
• Telecor HS-1301-LN
Phone
Telecor Port Expansion Unit Model 205
Telecor Port Expansion Unit Model 200
