26 Hardware

Connecting the Telecor Voice Server (TVS)

TVS to PEU 250

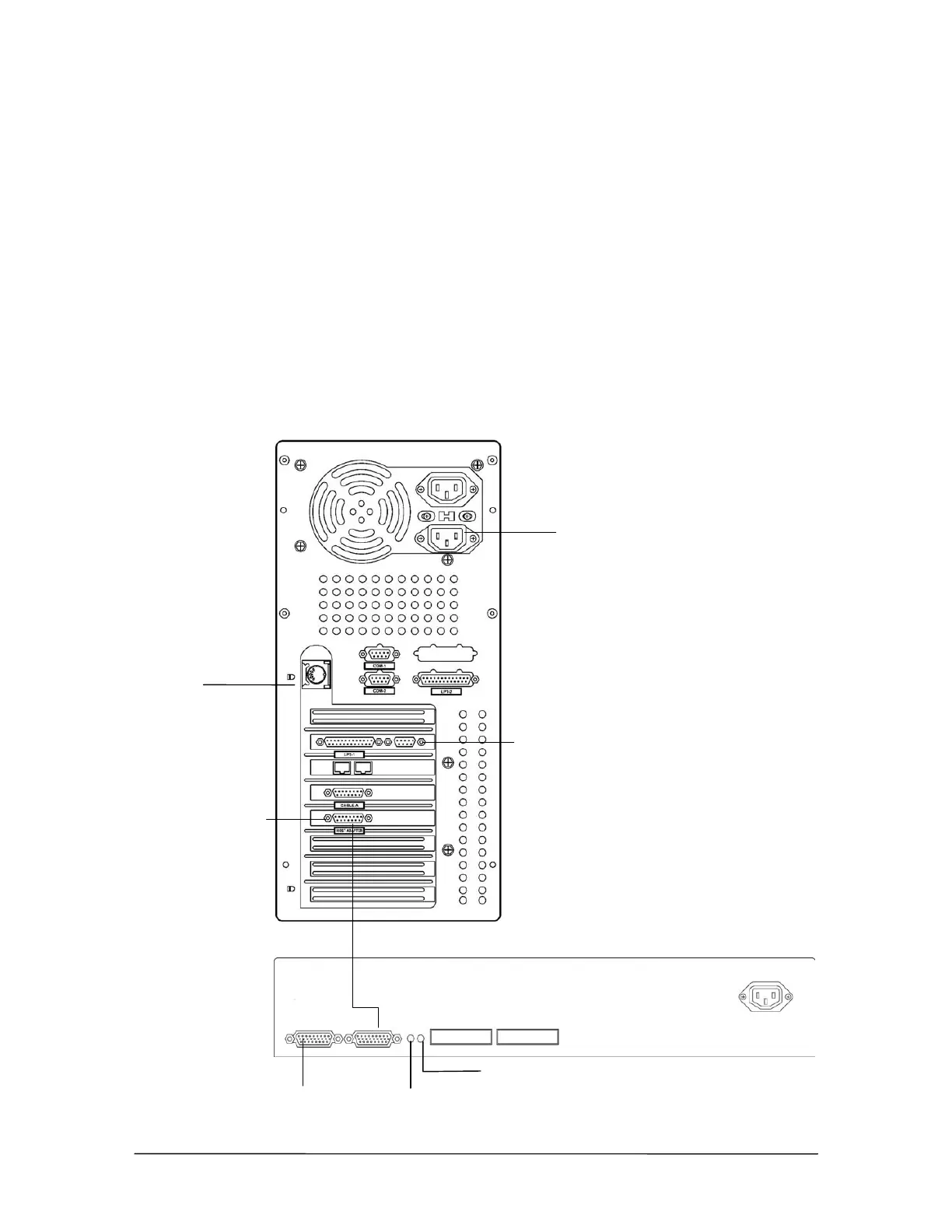

The diagram shows the correct port for each cable on the TVS and PEU 250. To connect the TVS

to the first PEU 250, complete the following steps.

1. Plug one end of the 26-pin data cable in the Host Adapter port on the TVS; plug the other end

of the 26-pin data cable in the Host Adapter port on the PEU.

2. Plug the Power cord into the TVS, and then connect it to a power strip.

• The Power LED on the PEU 250 is lit green to indicate that the power is on.

• The Status LED on the PEU 250 is lit green to indicate that the PEU is connected to the

TVS.

3. Plug in a keyboard and VGA monitor. This is required to create an emergency boot floppy

(page 47).

Connecting the TVS

to the PEU 250

Plug in the Power Cord

Connect the Host Ada

ter Cable

(

26-Pin

)

Next PEU

Host Adapte

Cable (26-Pin)

Power LED

Status LED

Back View

Plug in a VGA monitor

Plug in a

Keyboard
