12 Hardware
Caller ID Option Module
The Caller ID Option Module permits Caller ID (provided by local phone company) to work on the
Telecor VS1 phone system. The Caller ID Option Module requires Voice Server Software Version
2.7 or later. The Caller ID Option Module is installed inside a Port Expansion Unit Model 200 (PV-
PEU-200) or Port Expansion Unit Model 205 (PV-PEU-205). The Caller ID module is not used
with the Port Expansion Unit Model 250 (PV-PEU-250). The Model 250 contains integrated Caller
ID circuitry on all 16 ports.

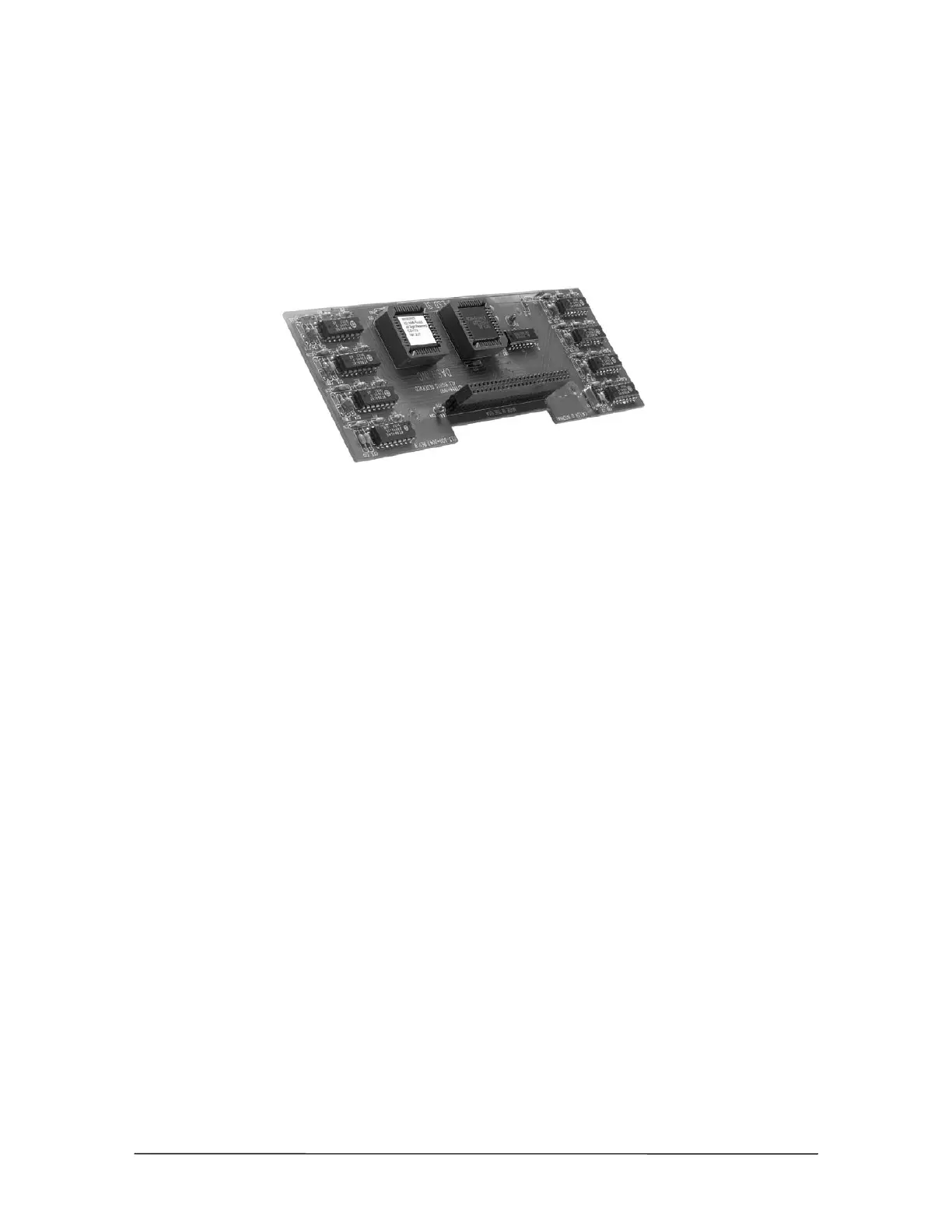

The Caller ID
Option Module
Hardware Specifications
Dimensions: 7.25" x 2.5"
Weight: 3 oz.
Power Requirements: +5 Vdc and –5 Vdc, supplied by the PEU
Standards Compliance: FCC Part 68, UL1950
Adapter Specifications: 50-pin header connector
Architecture: Two-layer PCB
