18 Hardware
PC Option Module (PCOM)
The PC Option Module (PCOM) provides an externally connected serial interface to a computer for
data sent by the Telecor Voice Server (TVS). The PCOM is used with the Telecor Connect CTI
client application. By installing a PCOM, Telecor Connect users can use their computer screen for
call processing and keep the phone on their desk. Keeping a phone on the desk also allows calls to
be received when the computer is turned off.

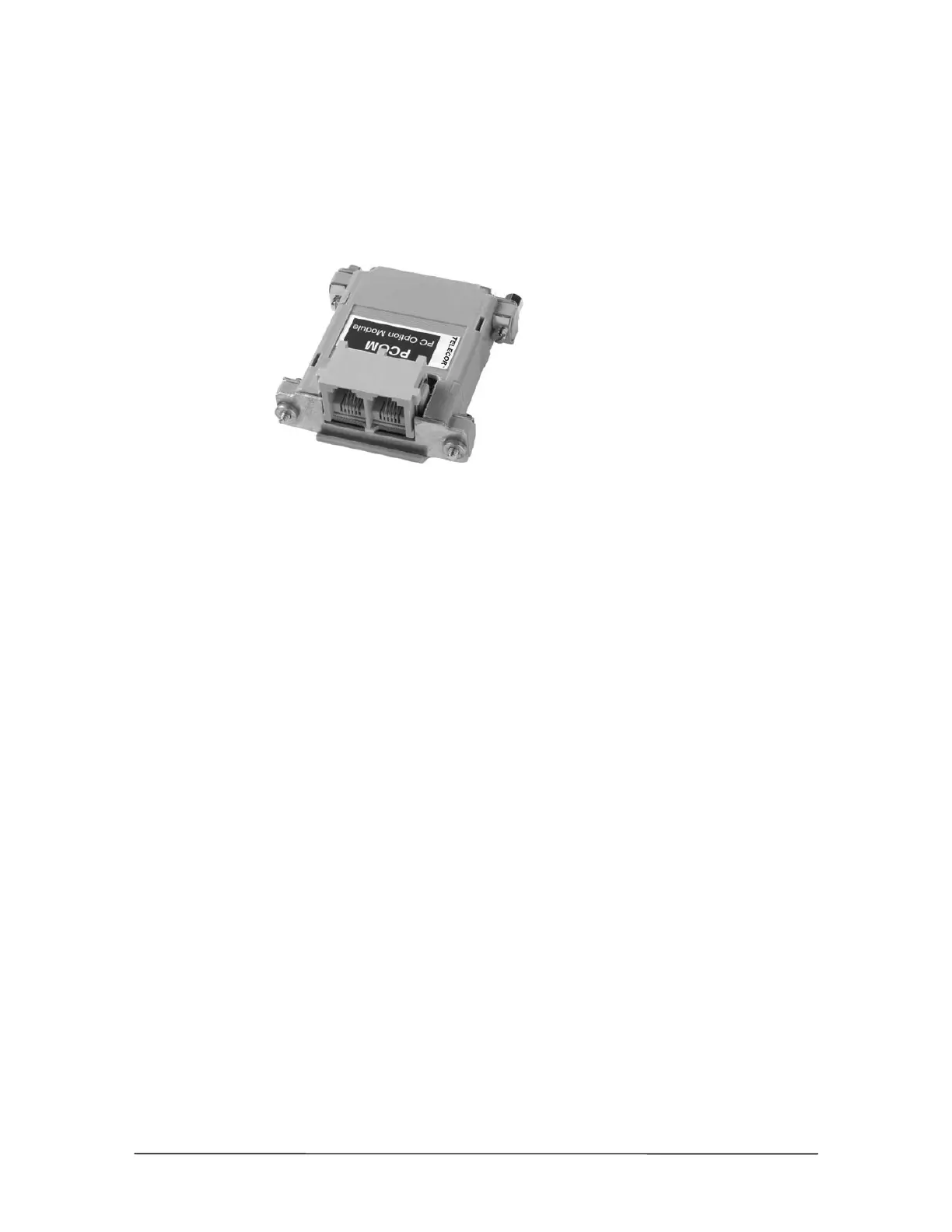

PC Option Module
(PCOM)
(cable not pictured)
Hardware Specifications
Dimensions: 3.25" x 2.5"
Weight: 3 oz.
Power Requirements: Powered by PEU
Temperature: 10°–50° C operational
Humidity: 5%–95% non-condensing operational
Adapter Specifications: RJ-11 connectors and one DB25 connector
