62 Tel-Site System Management Application

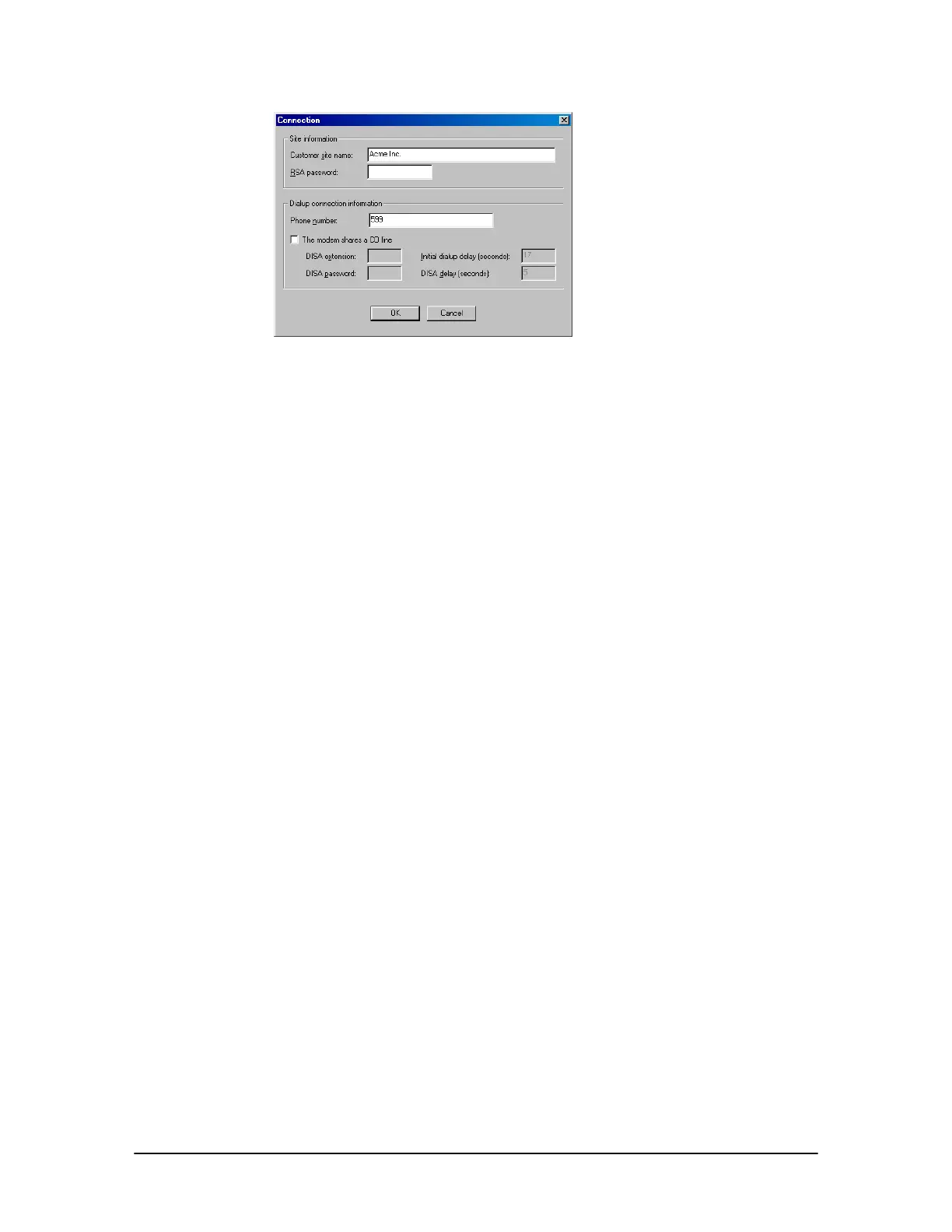

Setup in Connection
dialog box for Tel-
Site Modem to TVS
Modem through two
PEU Extension Ports
connection
8. Click OK to return to the Site Selection window.
9. Click OK to return to the Connection window.
10. See “Tel-Site Basic Operation” on page 76 to:
• Connect to a site
• Download files from a site
• Change site configurations
• Assign an RSA (Remote System Access) password
• Upload files to a site
• Reload configuration changes
Tel-Site Modem to TVS Modem through Two PEU Extension Ports
Connection Checklist
In the System Configuration 2 pane of the VS1 Editor program, set the modem to
answer on the first ring.
In each configuration, make sure that PEU Port 16 is configured as a Modem/Fax port
with the extension 599.
Using your current connection method, upload the new configuration settings (only if
changed from default) to the customer TVS and reload the changes.
Connect a standard telephone cord between the line jack of the TVS modem and PEU
port 16.
In the Tel-Site Connection window, verify that the I am on-site (Using a direct modem
to modem connection.) check box is not selected.
In the Connection dialog box of the Site Selection window, enter an RSA password if
required.
In the Phone Number text box, enter 599. Ensure The modem shares a CO line check
box is cleared.
