VS1 Installation, Configuration & Operating Guide 17
Computer Telephony Interface Module (CTIM)
The Computer Telephony Interface Module (CTIM) provides a digital interface to the VS1 phone
system for the Telecor Attendant and Connect applications. The CTIM is an external device with a
headset jack intended for use only with the VS1 phone system.

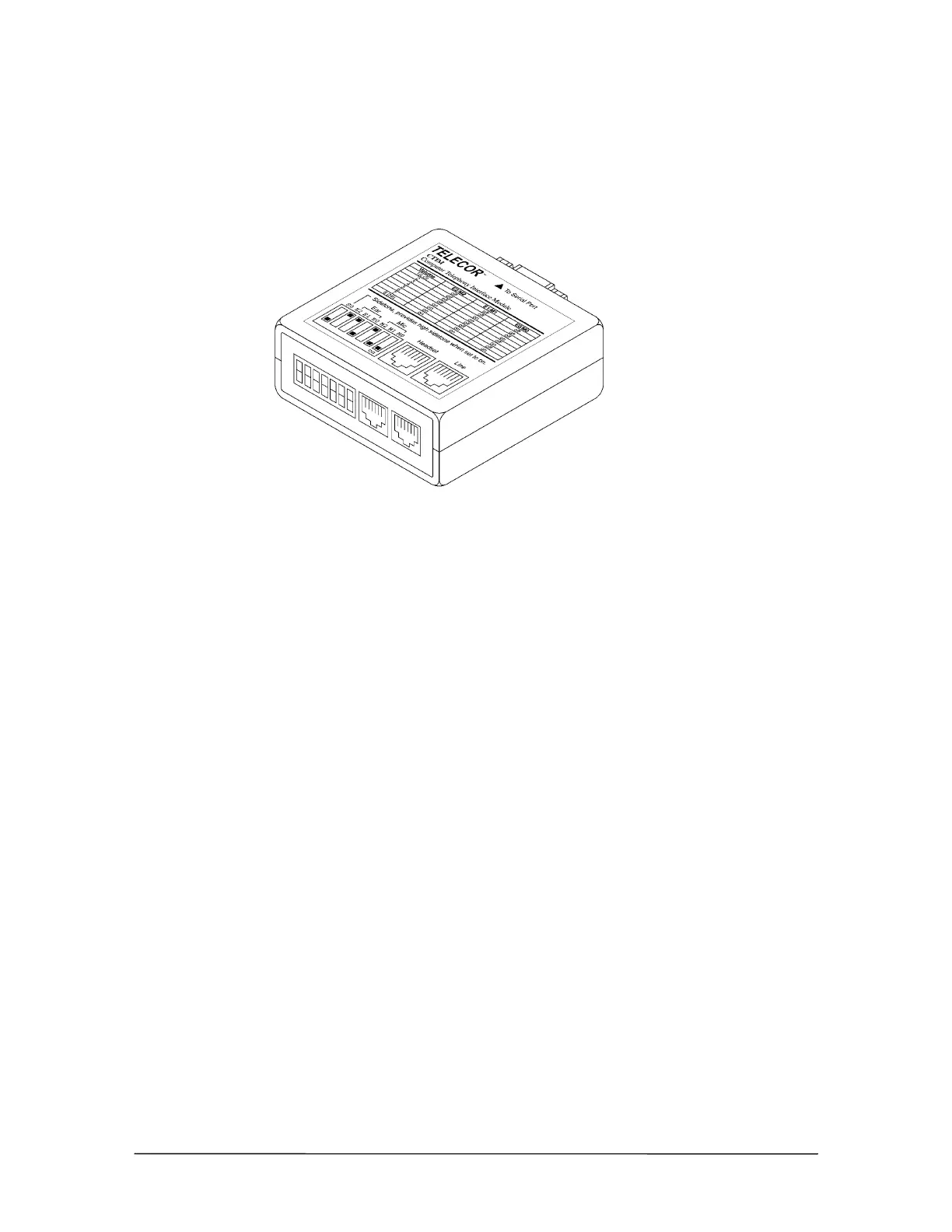

CTIM
Hardware Specifications
Dimensions: 2.6" x 2.6" x 1.1"
Weight: 2.8 oz.
Power Requirements: Powered by PEU
Temperature: 10°–50° C operational
Humidity: 5%–95% non-condensing operational
Adapter Specifications: DB-9 Serial Port; RJ-11 Line; RJ-22 Headset
