TOMATECH TAC-100XT - Command Format; Compensation Direction

To Next Page

To Previous Page

TOMATECH AUTOMATION

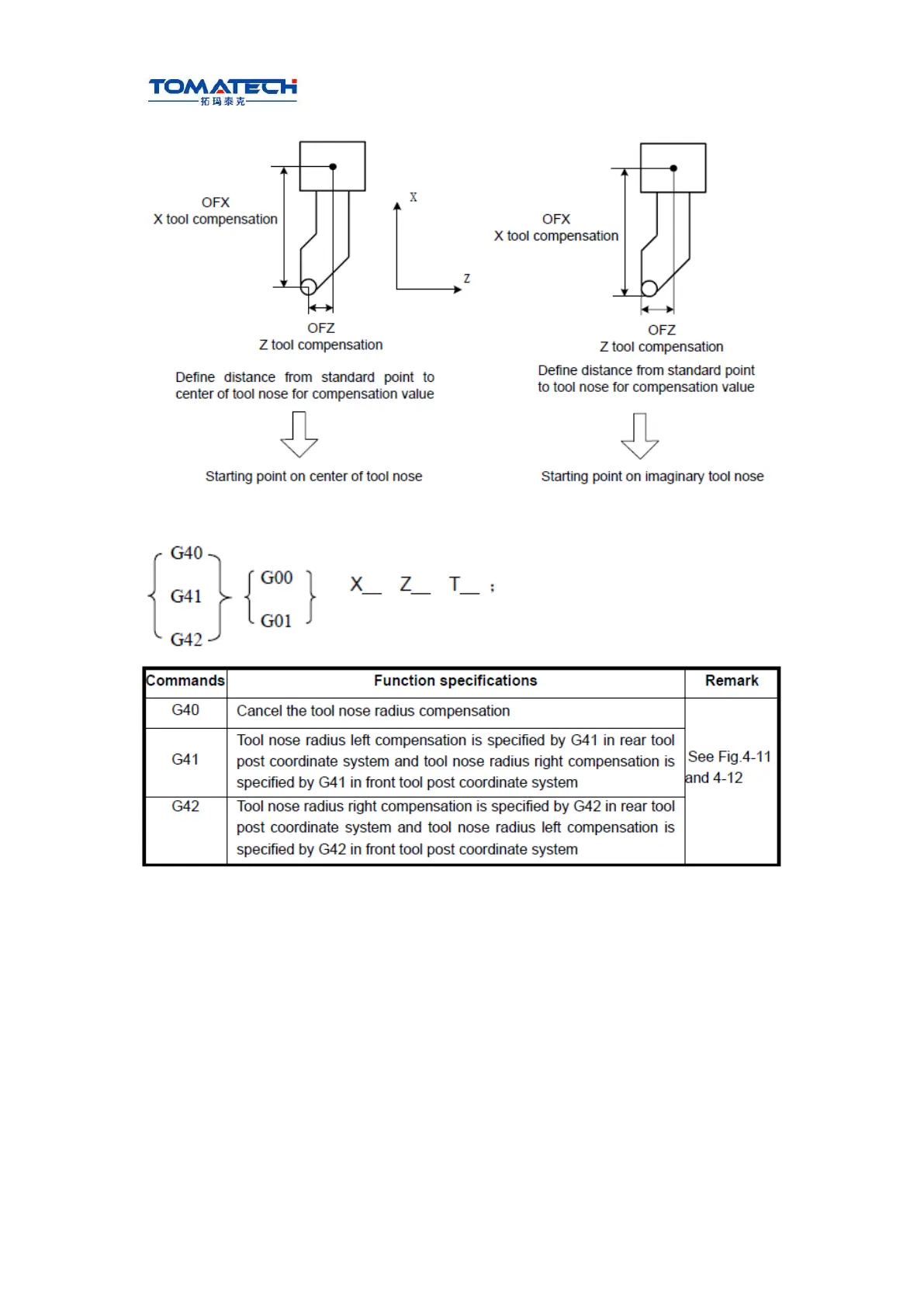

Fig. 4-10 Tool offset value of tool post center as benchmark

4.1.4 Command format

4.1.5 Compensation direction

Specify its direction according to relative position between tool nose and workpiece when

executing tool nose radius compensation is shown in Fig. 4-11 and Fig.4-12.
