TOMATECH TAC-100XT User Manual

TOMATECH AUTOMATION
Ⅱ Operation

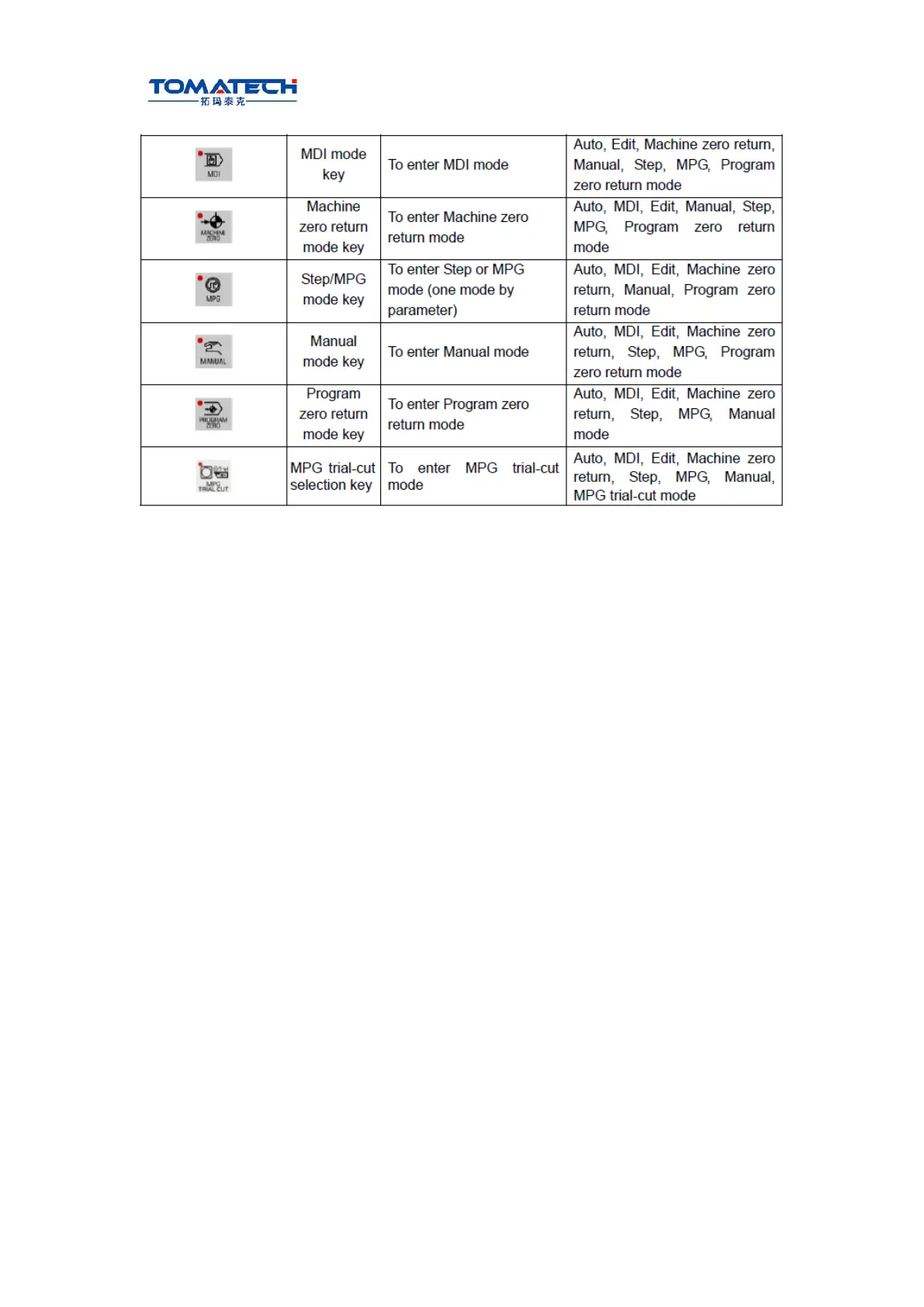

1.2 Summary of Operation Mode
There are 8 modes inTAC-1002T, which are Edit, Auto, MDI, Machine zero, Step/MPG,
Manual,Program Zero, and MPG trial-cut modes.
� Edit mode
In this mode, the operation of part program setup, deletion and alteration can be
performed.
� Auto mode
In this mode, the program is executed automatically.
� MDI mode
In this mode, the operation of parameter input, command blocks input and execution can
be performed.
� Machine zero mode
In this mode, the operation of X, Z machine zero return can be performed separately.
� MPG / Step mode
In the Step/MPG feed mode, the moving is performed by an increment selected by CNC
system.
� Manual mode
In this mode, the operation of Manual feed, Manual Rapid, feedrate override adjustment,
Rapid override adjustment and spindle ON/OFF, cooling ON/OFF, Lubricating ON/OFF,
spindle jog,manual tool change can be performed.
� Program zero return mode
In this mode, the operation of X, Z program zero return can be performed separately.
� MDP trail-cut mode
In this mode, rotating the MPG can control program’s execution speed, which can check
whether the machining program is correct.

TOMATECH TAC-100XT Specifications

General

Brand	TOMATECH
Model	TAC-100XT
Category	Control Systems
Language	English
