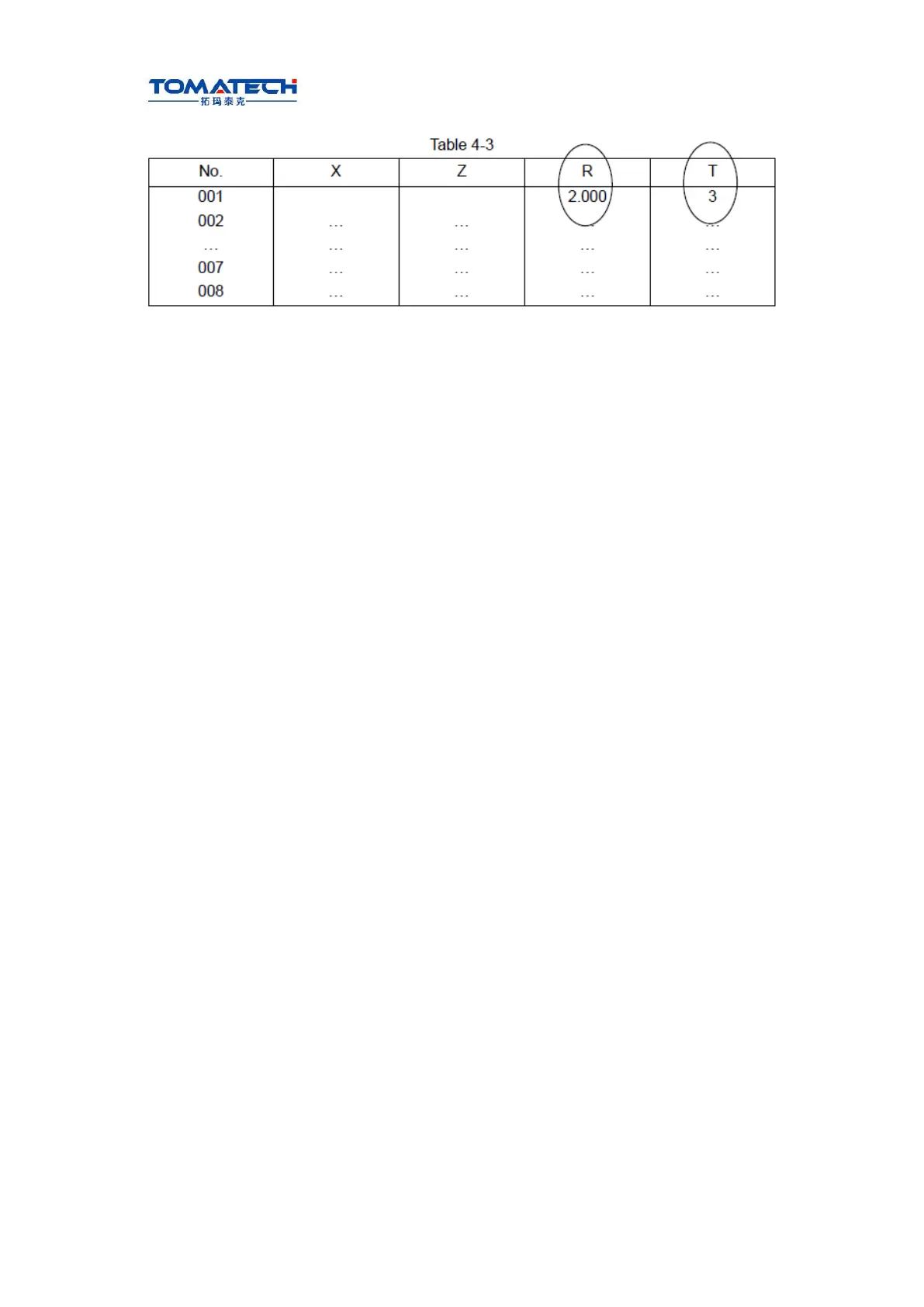

Program:

G00 X100 Z50 M3 T0101 S600; (Position, start spindle, tool change and execute

tool compensation)

G42 G00 X0 Z3; (Set tool nose radius compensation)

G01 Z0 F300; (Start cutting)

X16;

Z-14 F200;

G02 X28 W-6 R6;

G01 W-7;

X32;

Z-35;

G40 G00 X90 Z40; (Cancel tool nose radius compensation)

G00 X100 Z50 T0100;

M30;

4.2 Tool Nose Radius Compensation Offset Path

4.2.1 Inner and outer side

Inside is defined that an angle at intersection of two motion blocks is more than or equal

to 180°;

Outside is 0~180°.
