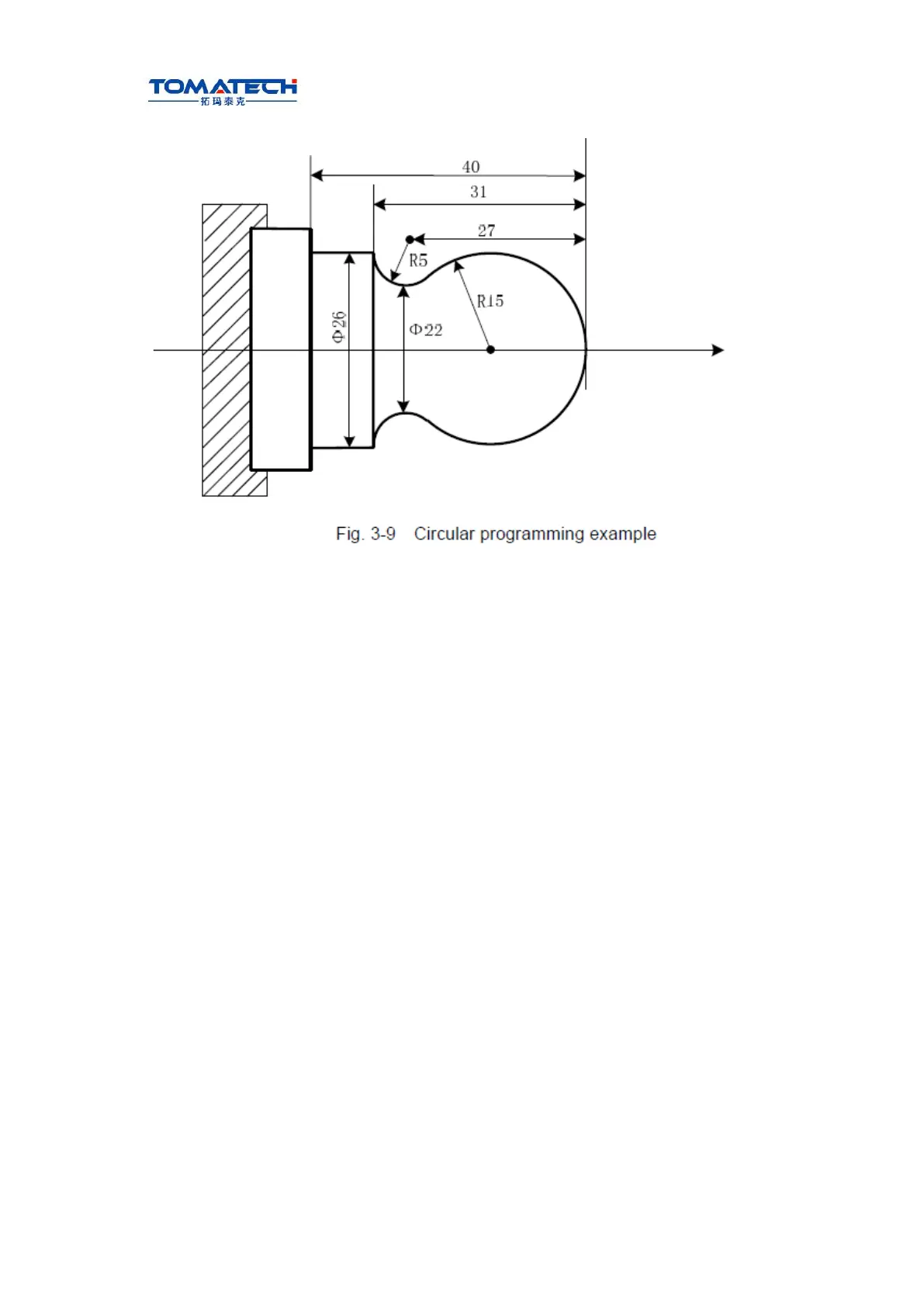

Program: O0001

N001 G0 X40 Z5; (Rapidly traverse)

N002 M03 S200; (Start spindle)

N003 G01 X0 Z0 F900; (Approach workpiece)

N005 G03 U24 W-24 R15; (Cut R15 arc)

N006 G02 X26 Z-31 R5; (Cut R5 arc)

N007 G01 Z-40; (Cut φ26)

N008 X40 Z5; (Return to starting point)

N009 M30; (End of program)

3.8 Plane Selection G17～G19

Command format：

G17……XY plane

G18……ZX plane

G19……YZ plane

Command function: use G commands to select the plane of the arc interpolation or the

one of the cutter compensation

Command explanation: G17, G18, G19 are modal, and the plane does not change in the

block without the command.

Notes:

� Firstly set the basic axis Y when the system selects G17, G19 plane;

� Cannot switch the planes in C tool compensation;

� G71~G76，G90，G92，G94 can be used in G18 plane;

� The plane selection code can be in the same block with G codes in the other groups;

� The movement command is not relevant to the plane selection;

Ⅰ Programming
