TOMATECH AUTOMATION
User needs to compile part programs (called program) according to command formats of
CNC system. CNC system executes programs to control the machine tool movement, the
spindle starting/stopping, the cooling and the lubricant ON/OFF to complete the machine
of workpiece. Program example:

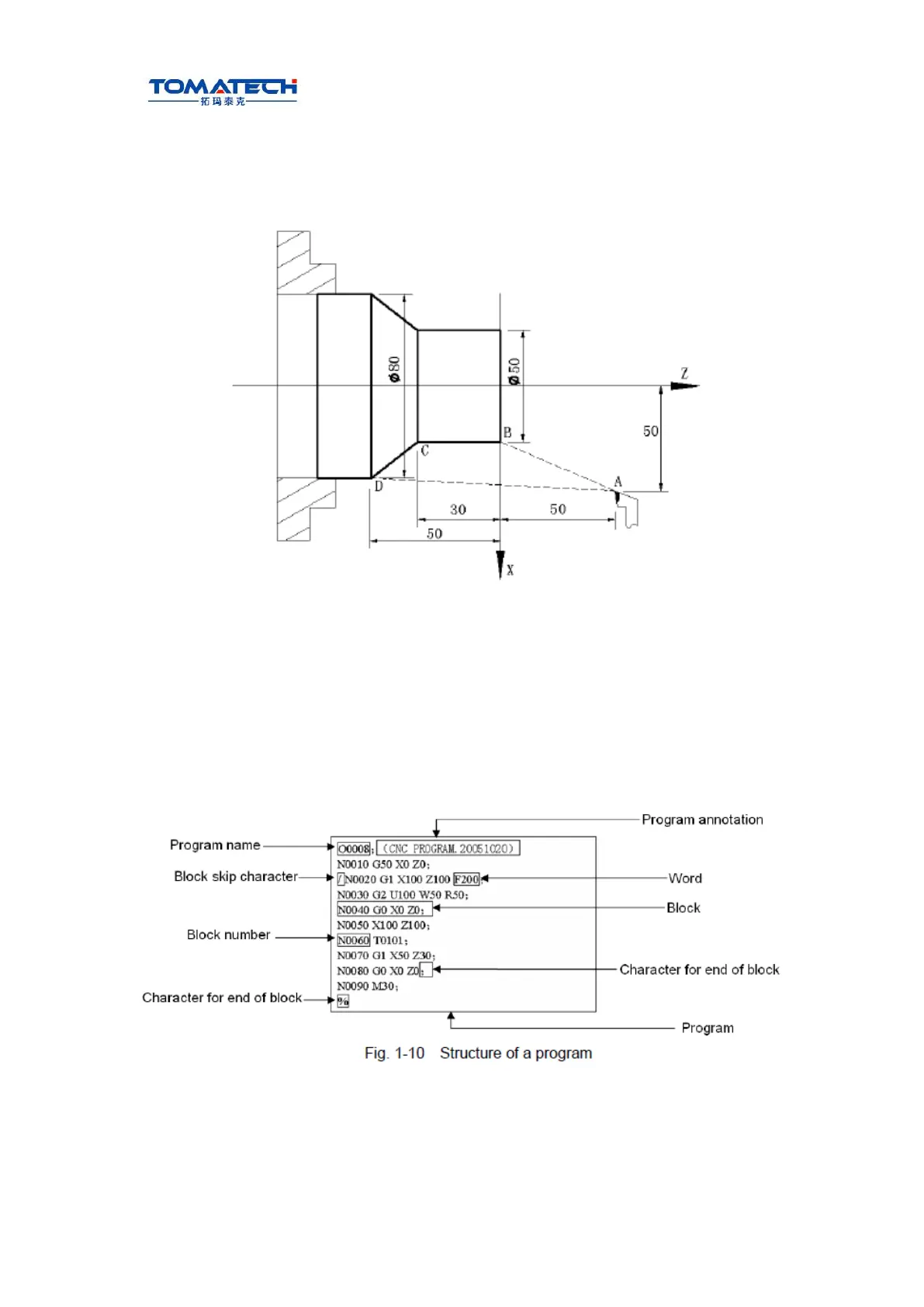

Fig. 1-9
The tool leaves the path of A→B→C→D→A after the above-mentioned programs are
executed.
1.4.1 General structure of a program
A program consists of blocks. A block begins with a block number (it can be omitted) and
several
words ending with “;”. General structure of a program is shown in Fig.1-10:
Ⅰ
Programming
Program name
There are most 384 programs stored inTAC-1002T. To identify it, each program has only
one program name (there is no the same program name) beginning with command
address O and the following 4 digits.
