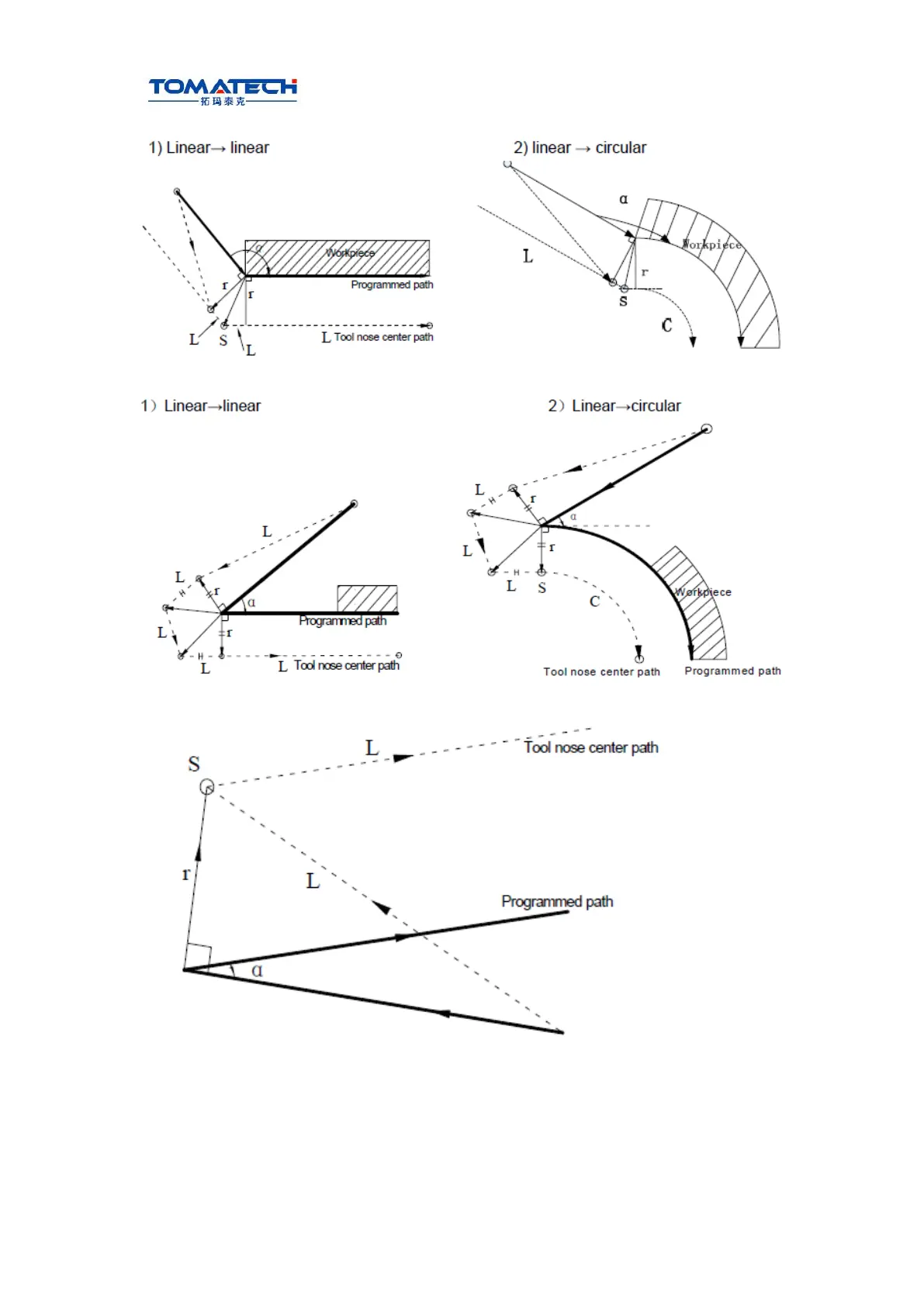

(c) Tool traversing inside along corner (α＜90°)
(d) Tool traversing outside along corner , linear →linear (α≤ angle set by No. 237)
Ⅰ Programming
4.2.3 Tool traversing in Offset mode
Offset mode is called to ones after creating tool nose radius compensation and before
canceling it.
� Offset path without changing compensation direction in compensation mode
(a) Tool traversing inside along corner(α≥180°)
