Command function: insert one straight line block between circular and linear
interpolation block.

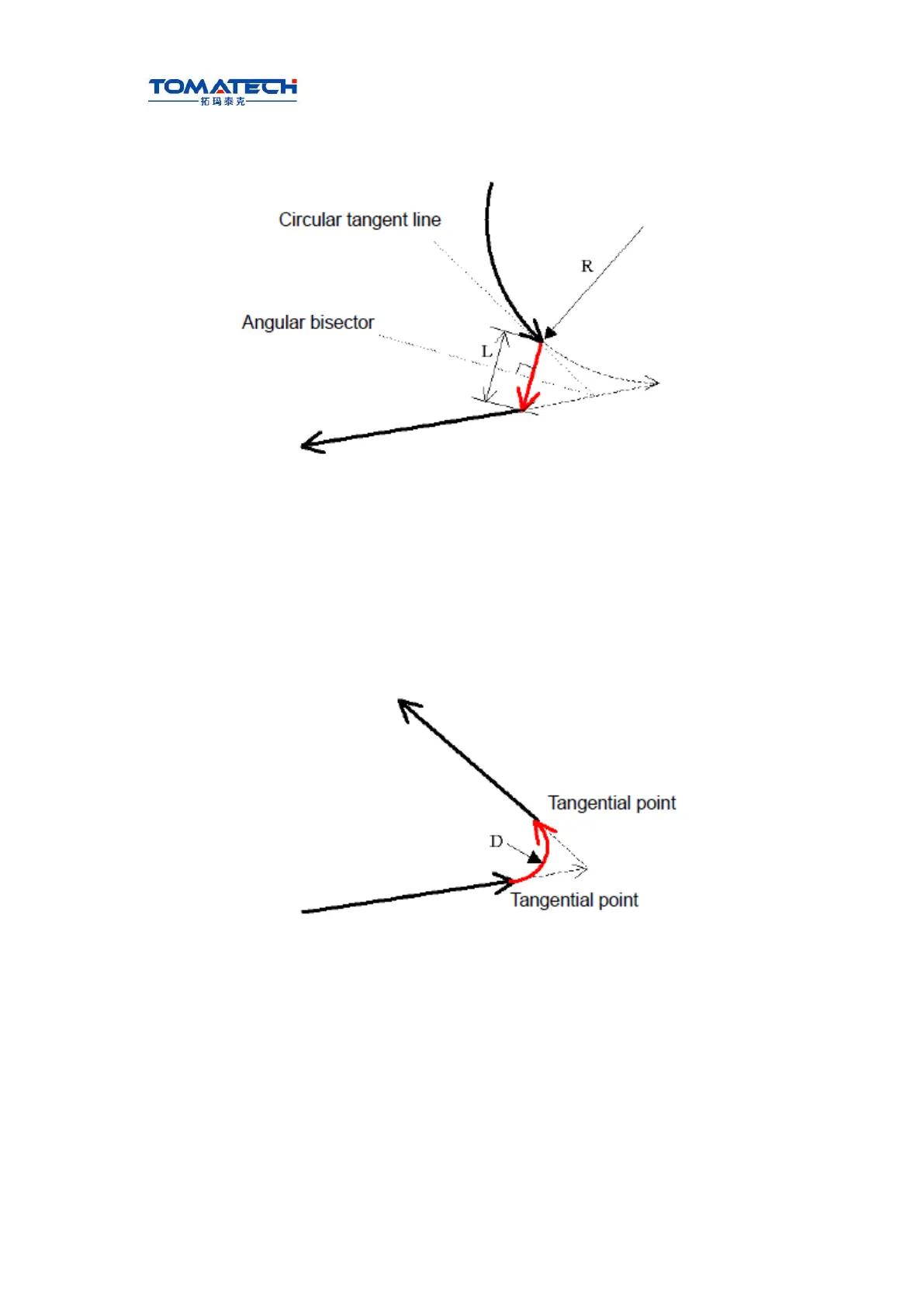

3.11.2 Circular chamfering
Circular chamfering: insert one circular between linear contours, circular contours, linear
contour and circular contour, the circular and the contour line are transited by the tangent.
The command of circular chamfering is D, and the data behind the command is the radius
of chamfering circular. The circular chamfering must be used in G01, G02 or G03.
A. Linear to linear
Command format:
G01 X(U)_ Z(W)_ D_;
G01 X(U)_ Z(W)_;
Command function: insert one circular between two straight lines, the inserted circular
block and two straight lines are tangent, the radius is the data behind the command
address D.Programming
B. Linear to circular
Command format:
G01 X(U)_ Z(W)_ D_;
G02/G03 X(U)_ Z(W)_ R_;
or
G01 X(U)_ Z(W)_ D_;
G02/G03 X(U)_ Z(W)_ I_ K_;
