Ⅰ Programming

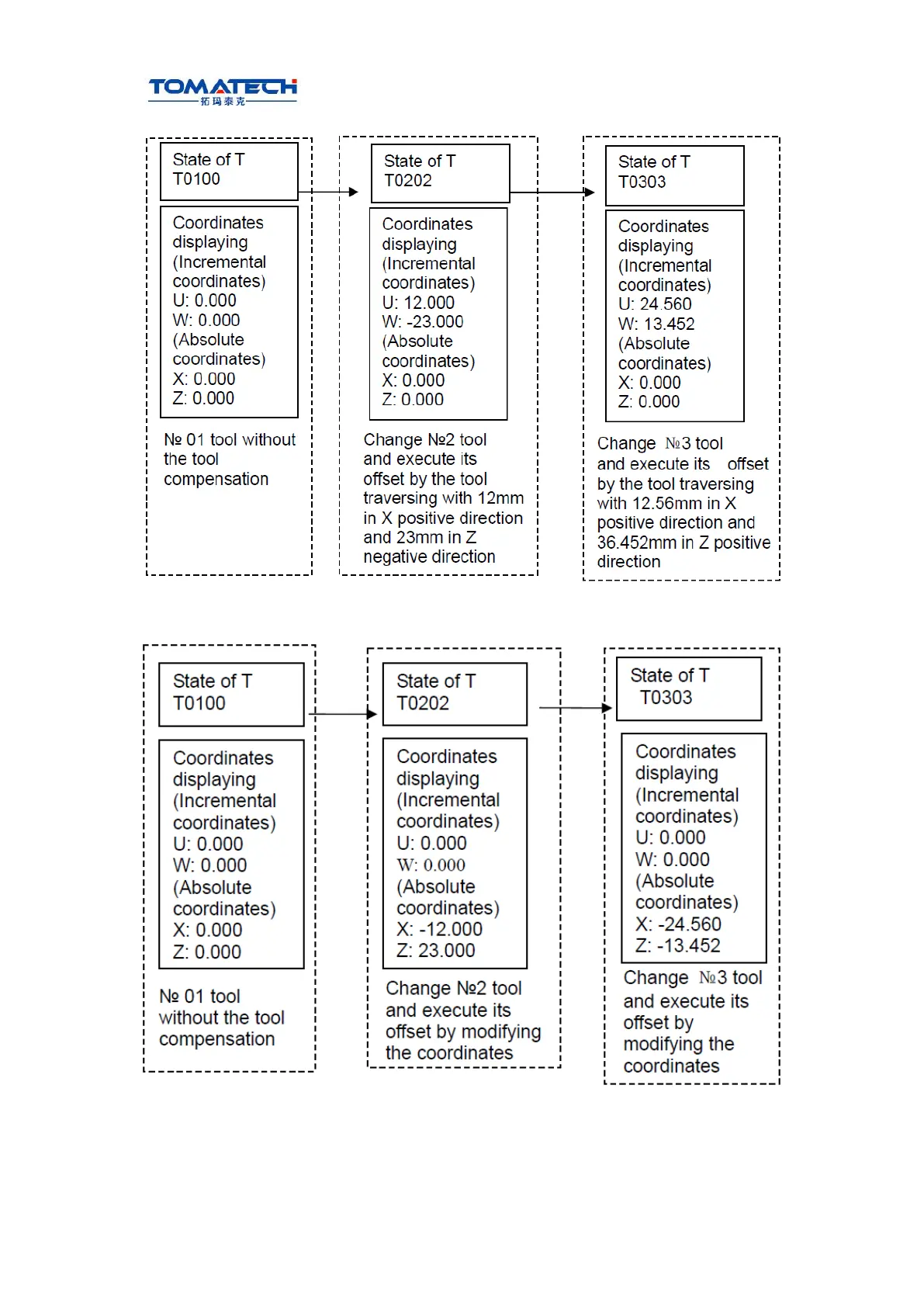

Fig. 2-7 Tool traversing mode
Fig. 2-8 Modifying the coordinates mode
In Edit and Auto mode, a sole T word in executing tool offset (it is not with the motion
command in the same block) is relative to No.004 BIT3 setting (as Fig.2-6 and Fig.2-7).
When No.003 Bit4=1
