3.4 Circular Interpolation G02, G03
Command function:
G02 movement path is clockwise (rear tool post coordinate system)/counterclockwise

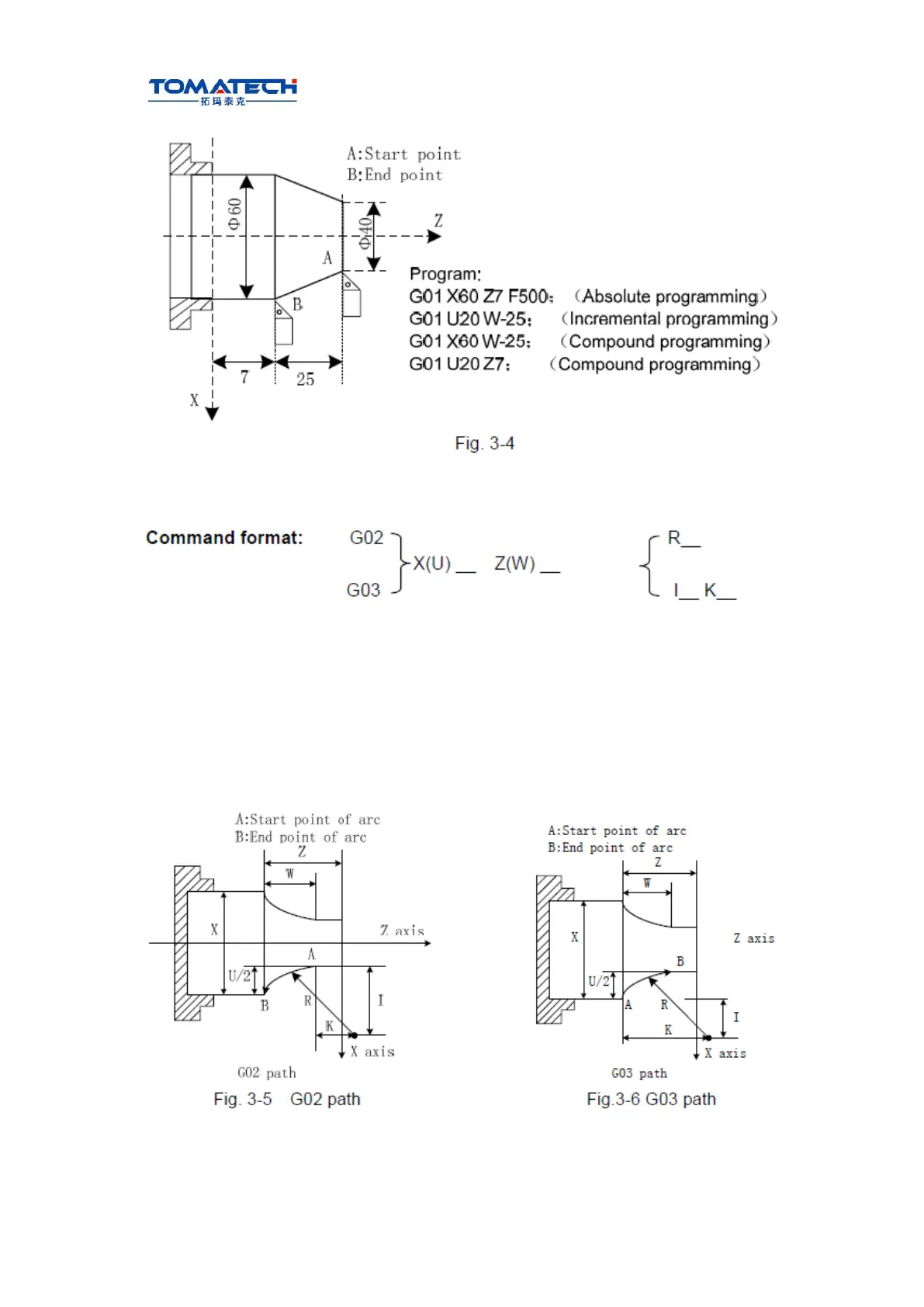

(front tool post coordinate system) arc from starting point to end point as Fig. 3-5.
G03 movement path is counterclockwise (rear tool post coordinate system/clockwise
(front tool post coordinate system) arc from starting point to end point as Fig. 3-6.
Command path:
Command specification:
G02, G03 are modal,
R is arc radius, range: ±99999999× least input increment;
