Xerox 8825 Service Manual

01/02
4-84
8825/8830 Printer
REP 9.20
Repairs and Adjustments

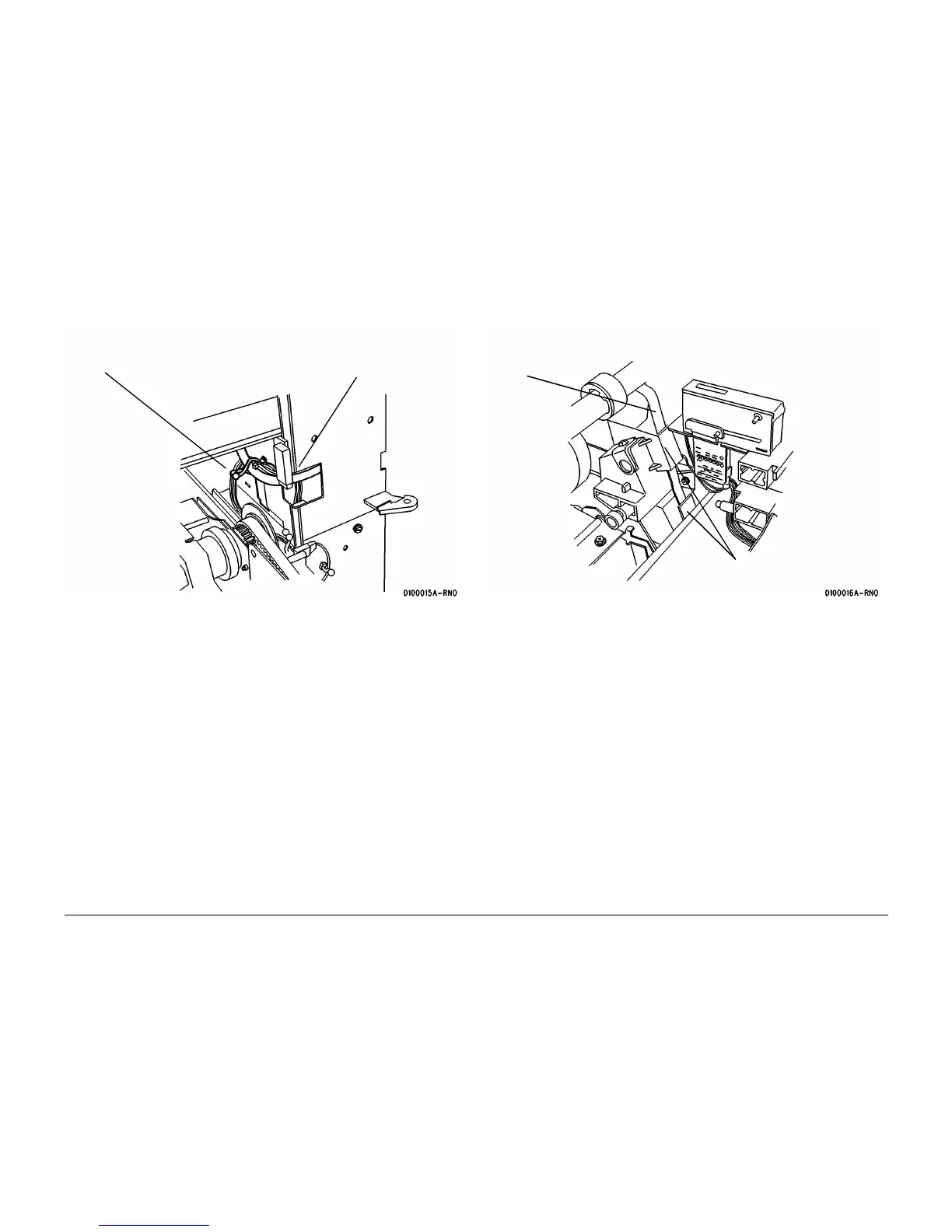

11. (Figure 5): Release the Video Cable from the cable clamps and pull it through the hole in
the frame.
Figure 5 Preparing the Video Cable for Removal
12. (Figure 6): Continue to pull the Video Cable through the hole after releasing it from the
cable guides.
Figure 6 Preparing the Video Cable
1
Release the Video
Cable from the cable
clamps
2
Pull the Video Cable
through the hole
2
Pull the cable up
to the level of the
Image Module
1
Release the cable
