8825/8830 Printer
Installation Procedure
General Procedures

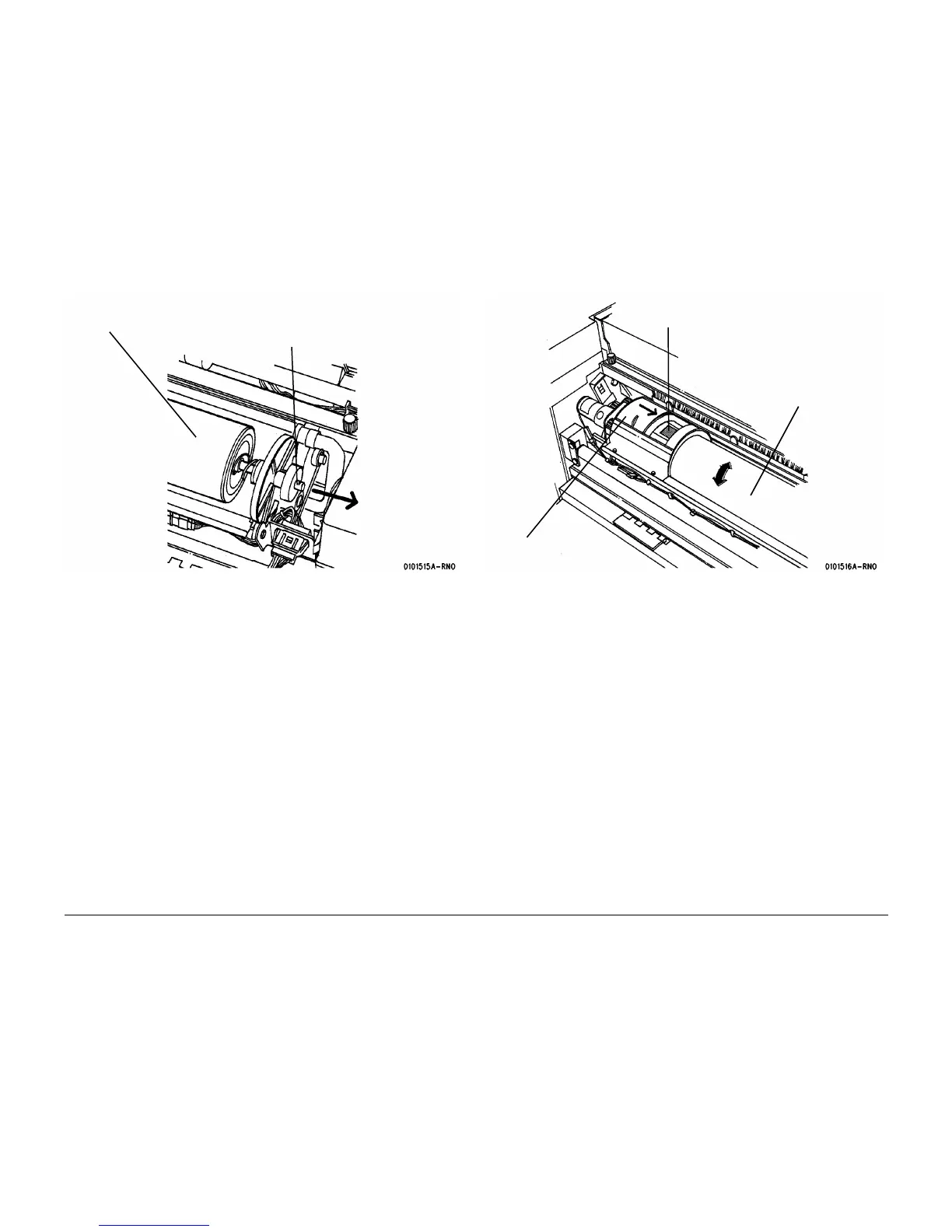

Figure 15 Reinstalling the Toner Cartridge
23. Figure 16 : Complete the Toner Cartridge installation.
Figure 16 Completing the Toner Cartridge installation
24. Close the Developer Module Cover.
25. Raise the Printer Top Cover.
26. Raise and hold the Developer Module Cover while reinstalling the Developer Module Side
Cover.
27. Figure 17 : Prepare to level the Printer. Rotate the leveling bolts (located inside the front
and rear doors) fully counterclockwise.
Toner Cartridge
1
insert left end of Toner Cartridge into Developer
Module. Then, pull plunger back and guide the
right side of cartridge into place
3
Rock the Toner Cartridge
back and forth to ensure
correct engagement of car-
tridge to motor
2
Close the cover
1
Remove the tape
To Next Page
