01/02
6-37
8825/8830 Printer
Installation Procedure
General Procedures

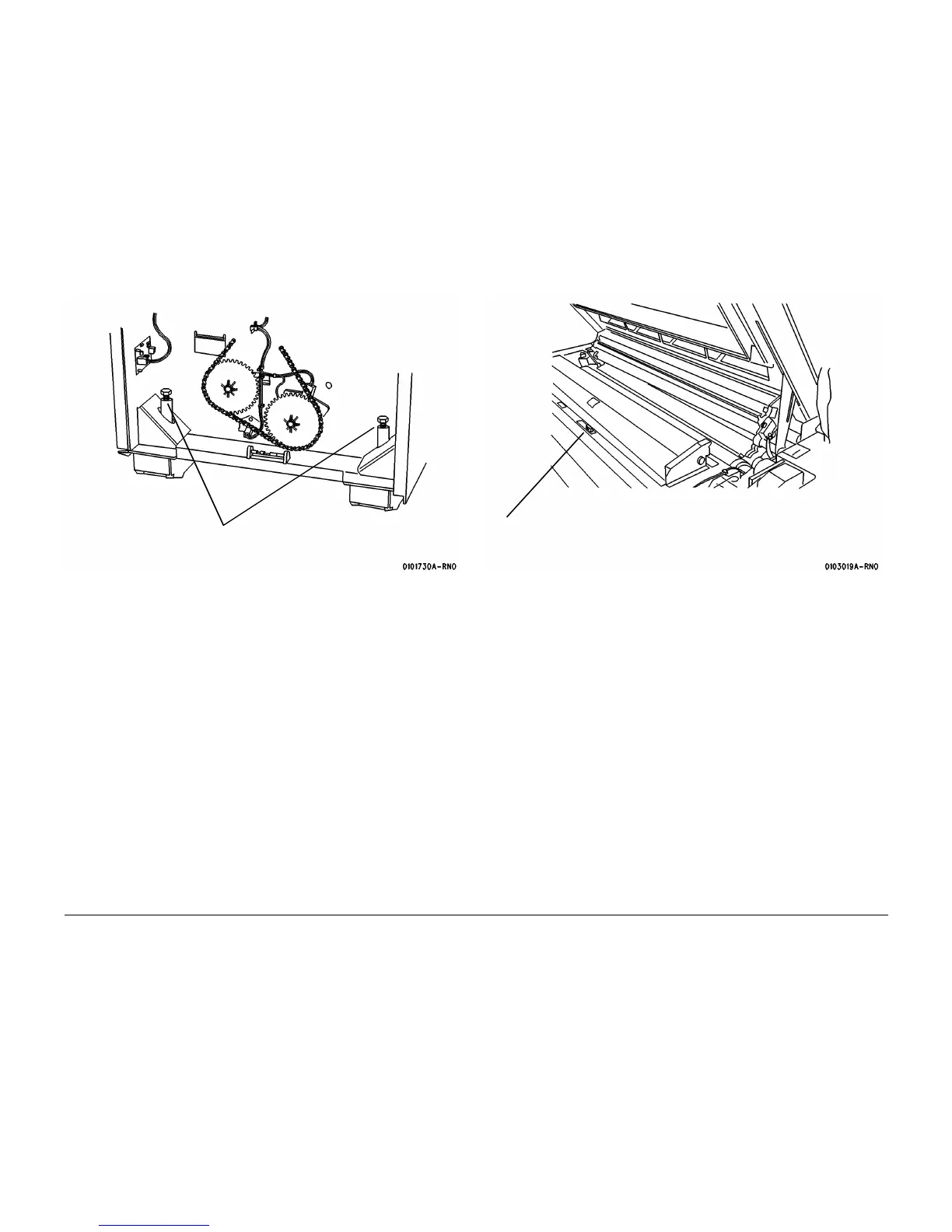

Figure 17 Preparing to Level the Printer
28. Figure 18: Check the level of the Printer.
Figure 18 Checking the Level of Printer
NOTE: To ensure that the Printer frame is not twisted, use a level to perform the side-to-side
level check on both end frames.
NOTE: Adjust the end that is farthest out of level first.
29. Figure 19: Adjust the side-to-side level of the Printer.
Rotate bolts fully counterclockwise
3
Repeat the
side-to-side
level check at
the other end
of the printer
2
Check the side-to-side level
at base of printer
1
Place the level as shown
and check the front-to-rear
level of the printer
To Next Page
