Xerox 8825 Service Manual

01/02
4-5
8825/8830 Printer
REP 3.1
Repairs and Adjustments
7. (Figure 4): Install the existing NVM integrated circuit into the socket on the new Main
PWB.
NOTE: Position the Pin 1 locating dot as shown.

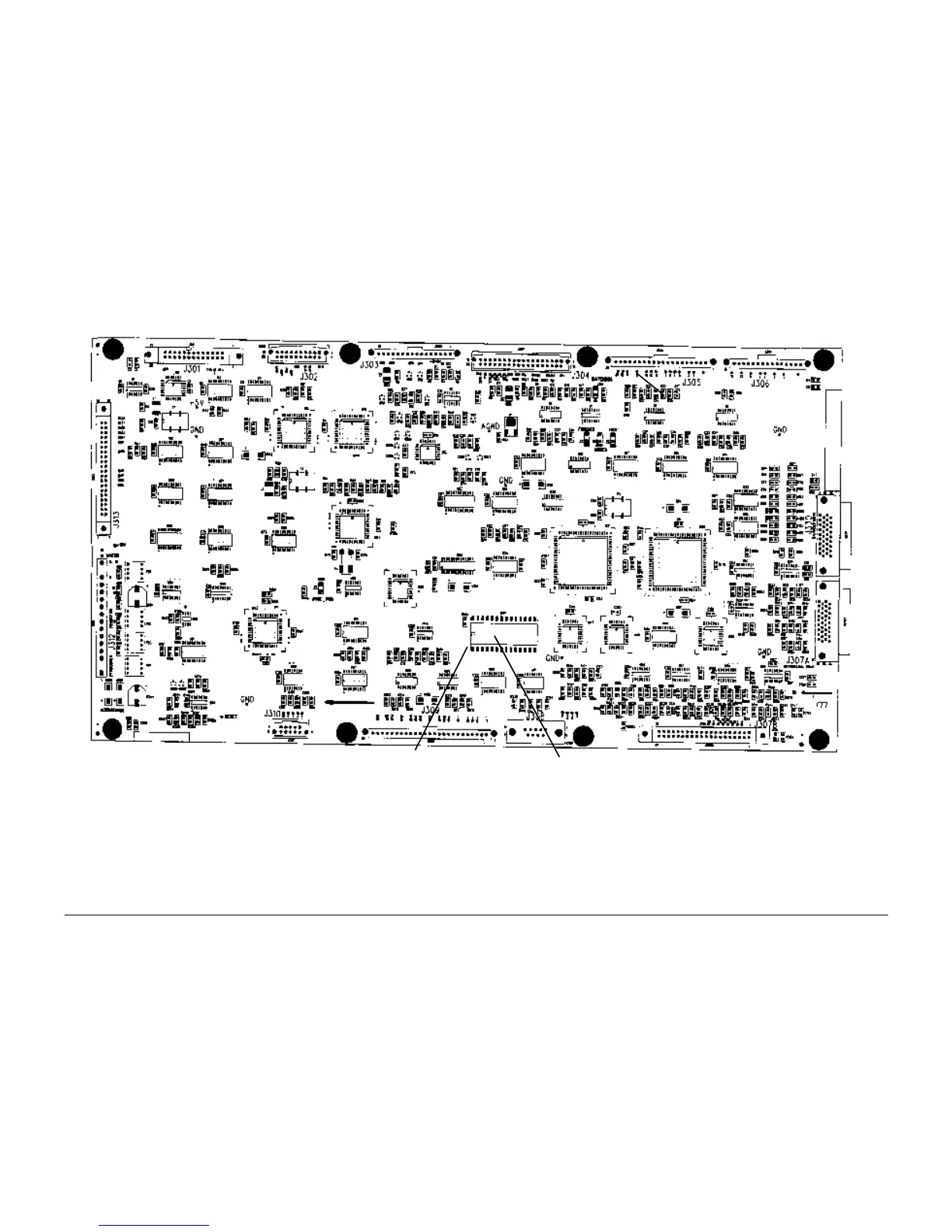

Figure 4 Installing the NVM Integrated Circuit on the new Main PWB
8. Install the new Main PWB over the 8 plastic fasteners. (Press down each plastic fastener
to secure the Main PWB.)
NVM Integrated Circuit
Pin 1 locating dot
