Corrective Maintenance
Printhead Cables
180
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
9. See Figure 58. Guide the printhead cable connectors through the gap in the print
mechanism and discard them.

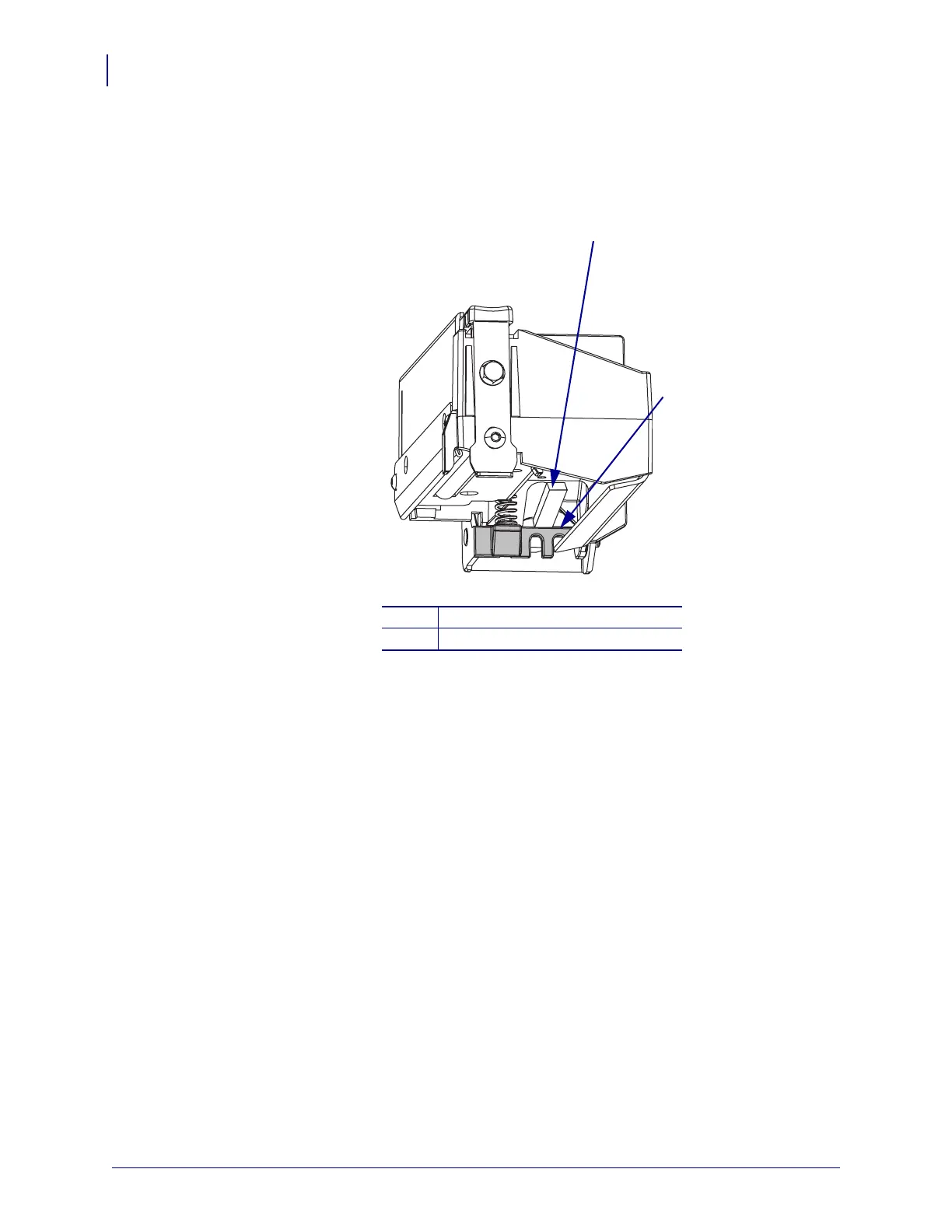

Figure 58 • Remove the Cables from the Print Mechanism
1
Cable connector
2
Gap
1
2
