Zebra ZM400 Series

Corrective Maintenance
Printhead Pressure Dials
200
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
3. See Figure 71. Close the printhead and rotate the printhead pressure dials to the #1
position.

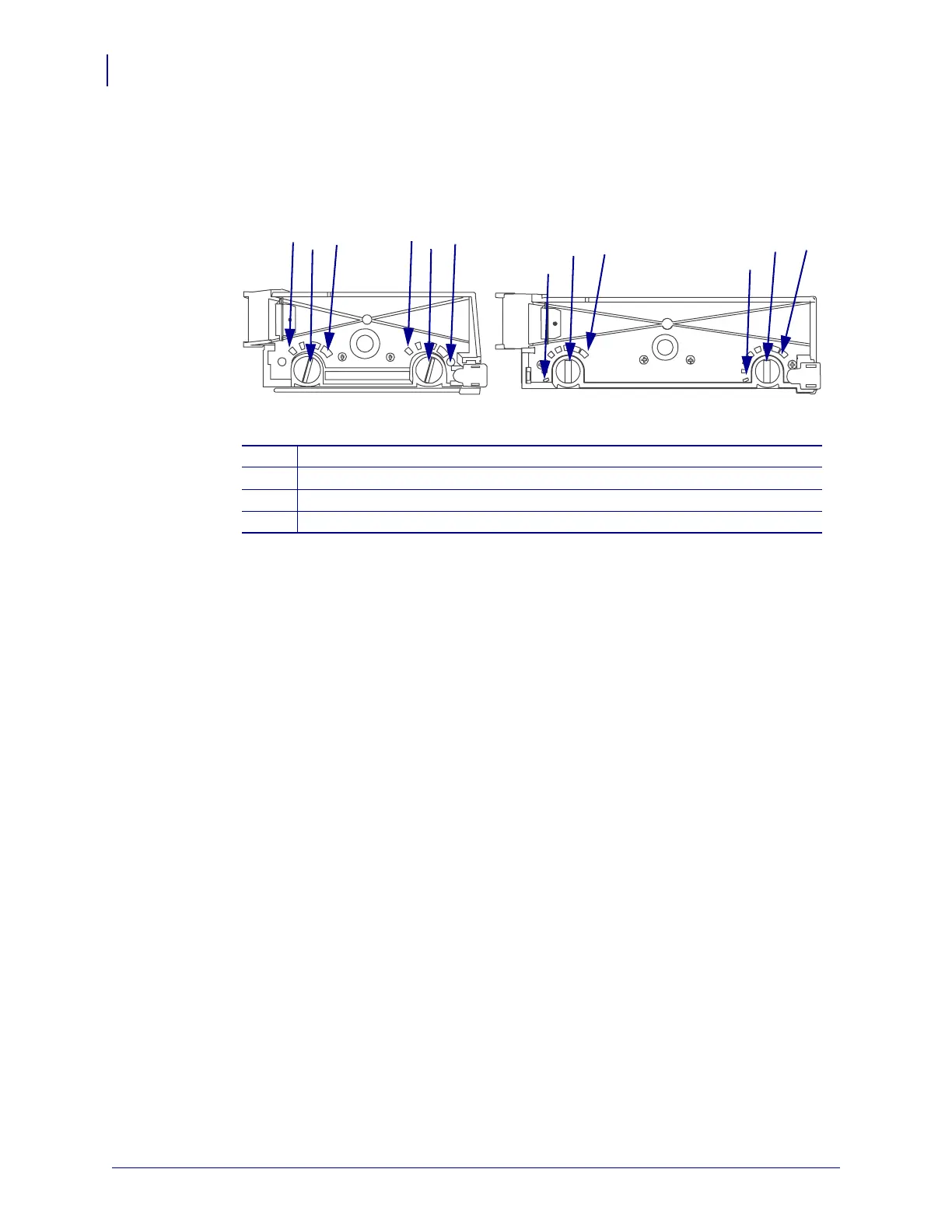

Figure 71 •
Locate the Printhead Pressure Dials
1
Postion #1
2
Pressure dial
3
Position #4
4
Position #8
1
2
3
1
2
4
1
2
3
1
2
4
ZM400 ZM600
