Zebra ZM400 Series User Manual

Corrective Maintenance
Printhead Conversion
288
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
3.
4.

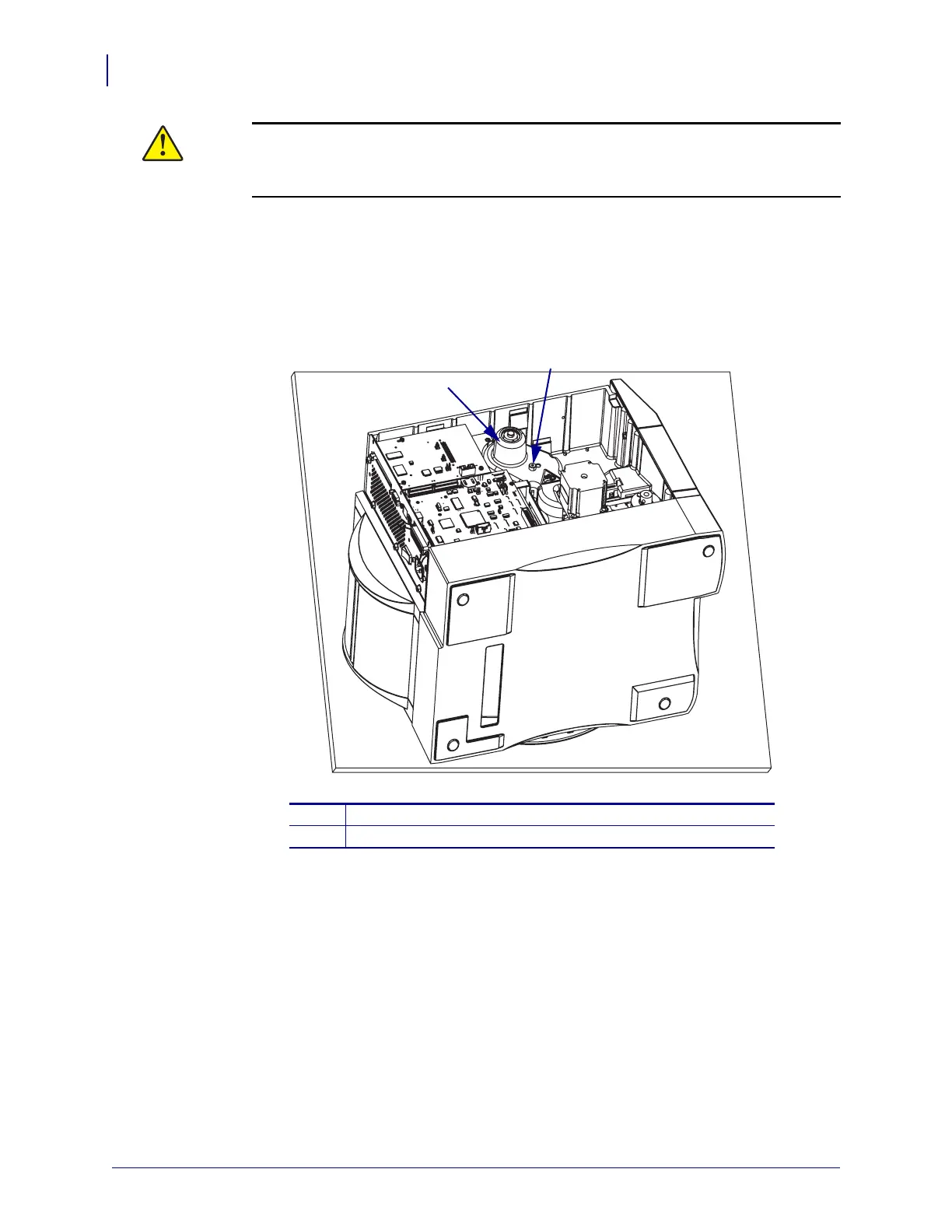

See Figure 153. Lay the printer on its side, media door down on a mat.
Figure 153 • Lay the Printer on its Side
Caution • Do not over tighten the drive belt, or damage to the bearings and platen
roller will occur. The belt should deflect under finger pressure but no more than 6 mm
(1/4 inch).
Loosen the locking screw and then rotate the motor down until the drive belt is just taut.
Tighten the locking screw and then the pivot screw.
1
Gear cover
2
Mounting screw
1
2

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
