289
Corrective Maintenance
Printhead Conversion
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
5. Remove the gear cover mounting screw.

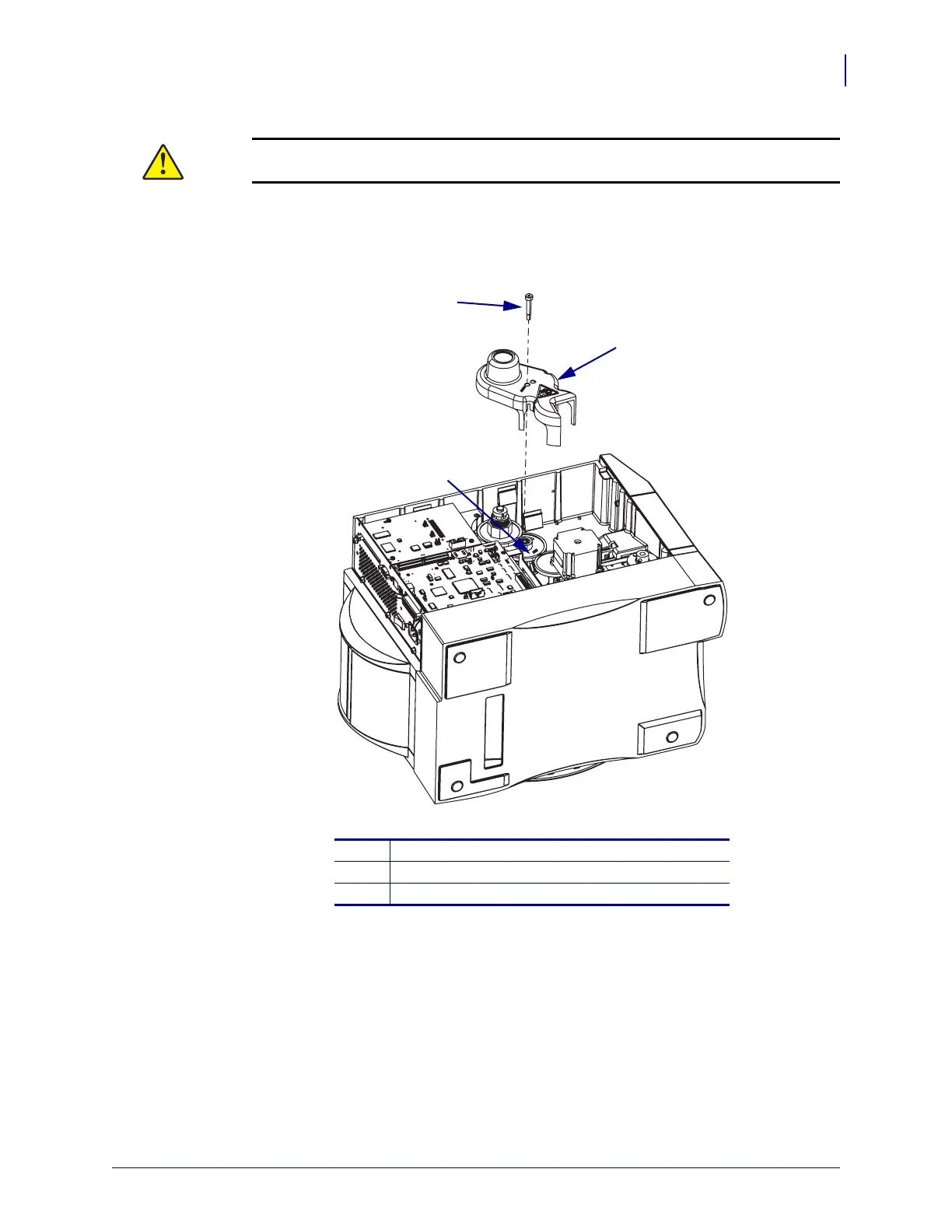

Figure 154 • Remove the Gear Cover
6. Slide the cover off the drive assembly.
Caution • A qualified service technician must perform this installation.
1
Mounting screw
2
Gear cover
3
Compound gear
1
2
3
