Zebra ZM400 Series

Corrective Maintenance
Printhead Conversion
290
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
7. See Figure 155. Remove the compound gear.

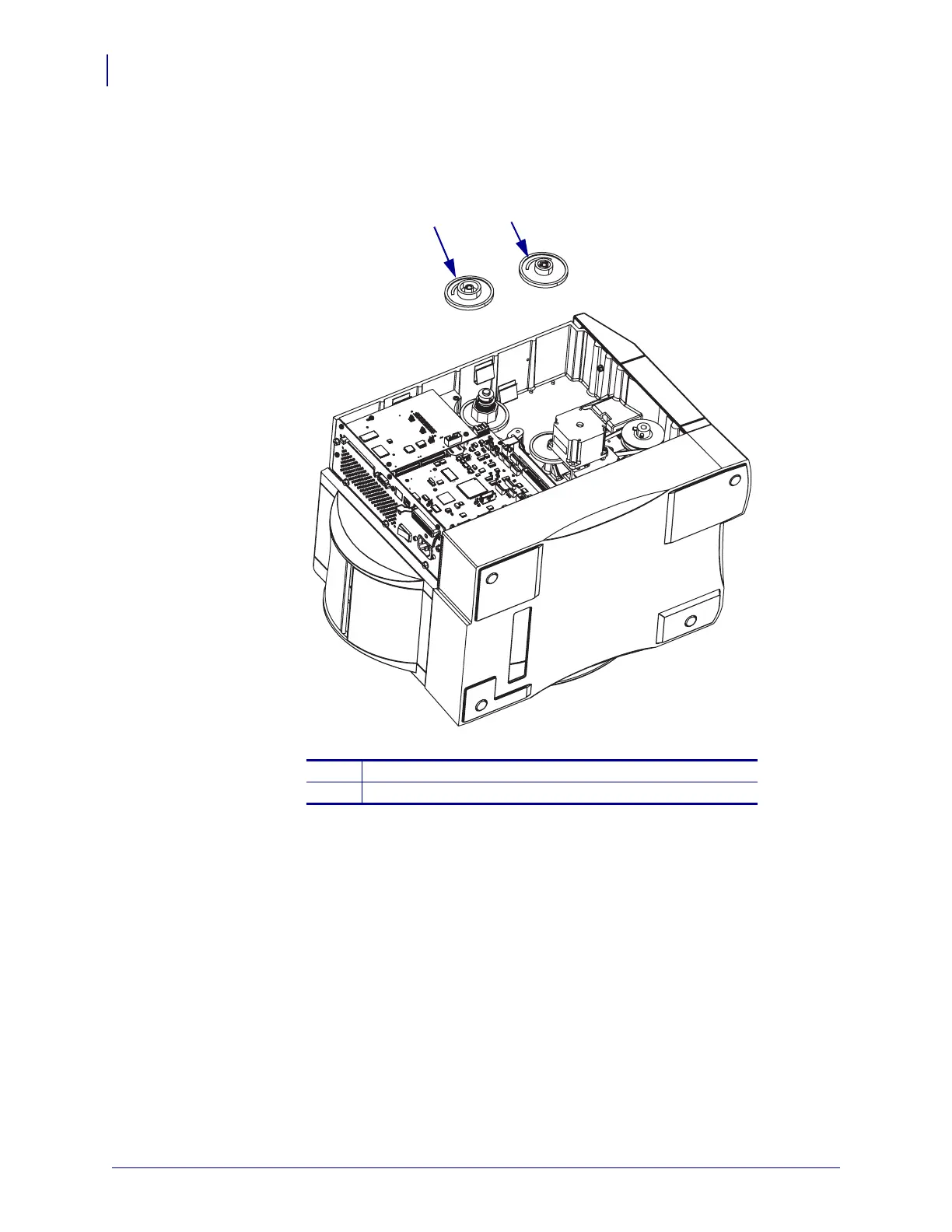

Figure 155 • Remove the Compound Gear
1
Compound gear turned to 300/600 dpi
2
Compound gear turned to 200 dpi
1
2
