Zebra ZM400 Series

Corrective Maintenance
Outer Guard Rewind
358
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07

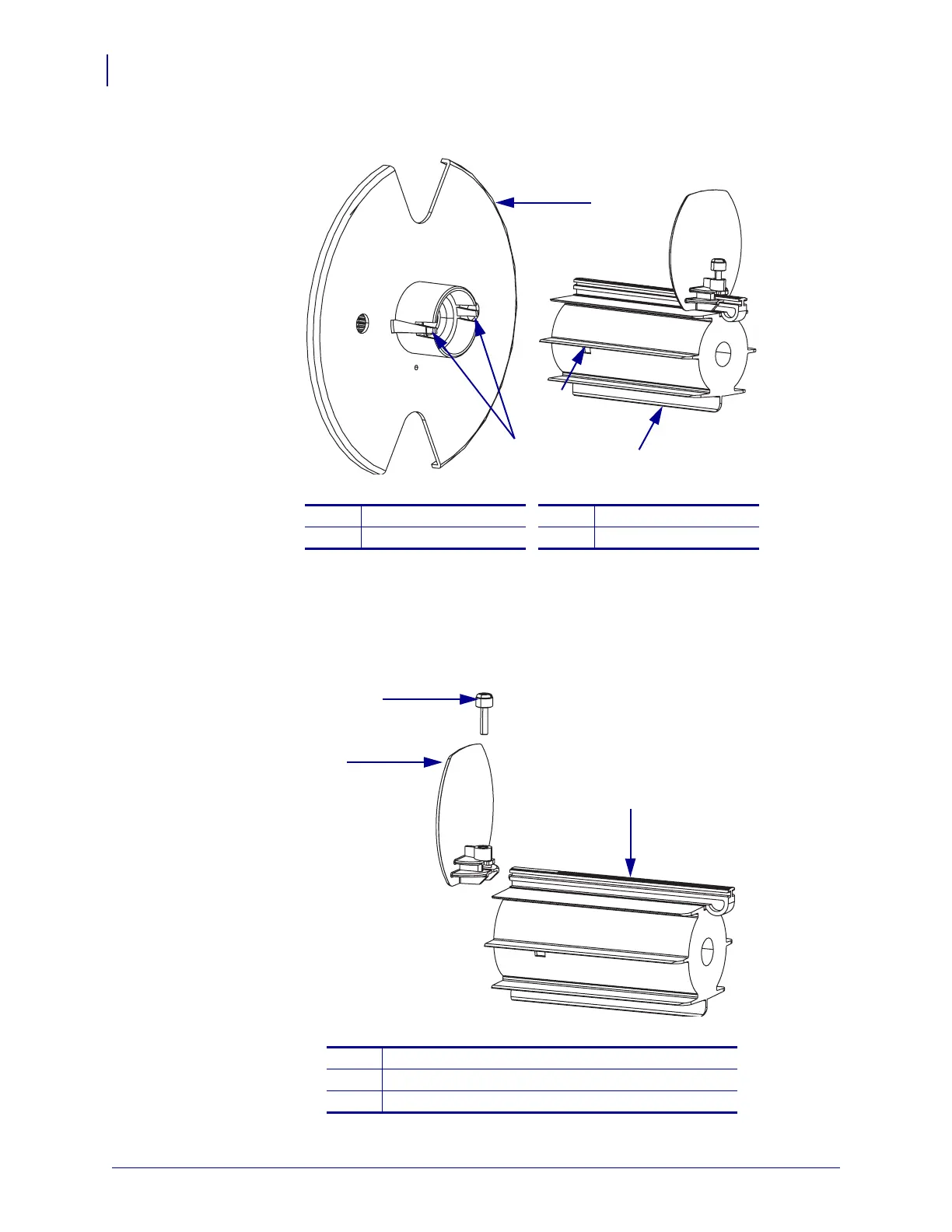

Figure 219 • Remove the Spindle
8. Remove the thumb screw from the outer rewind guide.
9. See Figure 220. Remove the outer rewind guide by sliding it off the rear of the spindle.
Figure 220 • Remove the Outer Rewind Guide
1
Rewind back plate
3
Mounting Holes (2)
2
Spindle
4
Tabs (2)
1
Thumb screw
2
Outer rewind guide
3
Spindle
1
2
3
4
"
1
2
3
Rear
